Pinout Values and Diagnostic Parameters

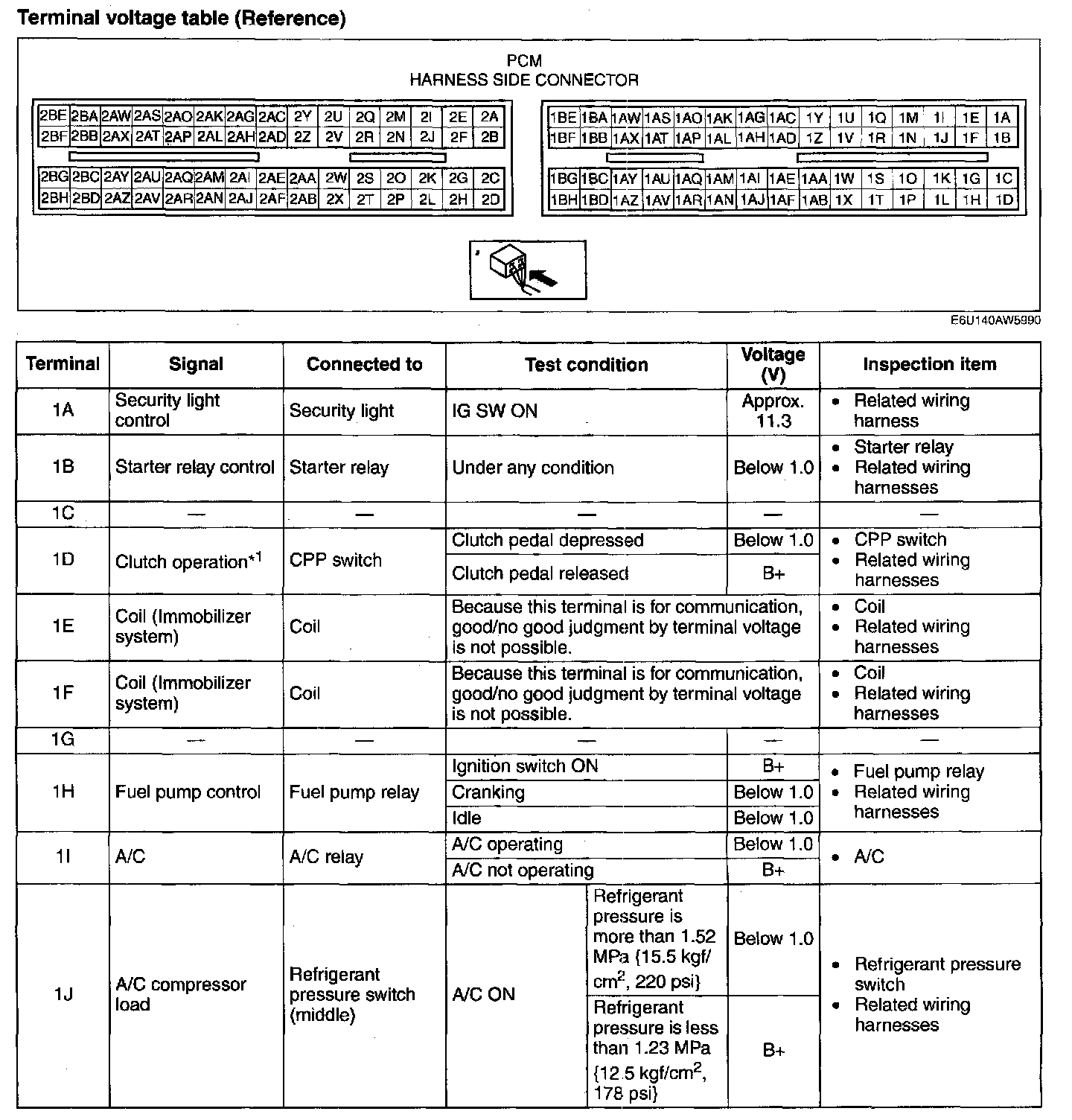

Terminal Voltage Table(Reference) - Terminal(1A-1J):

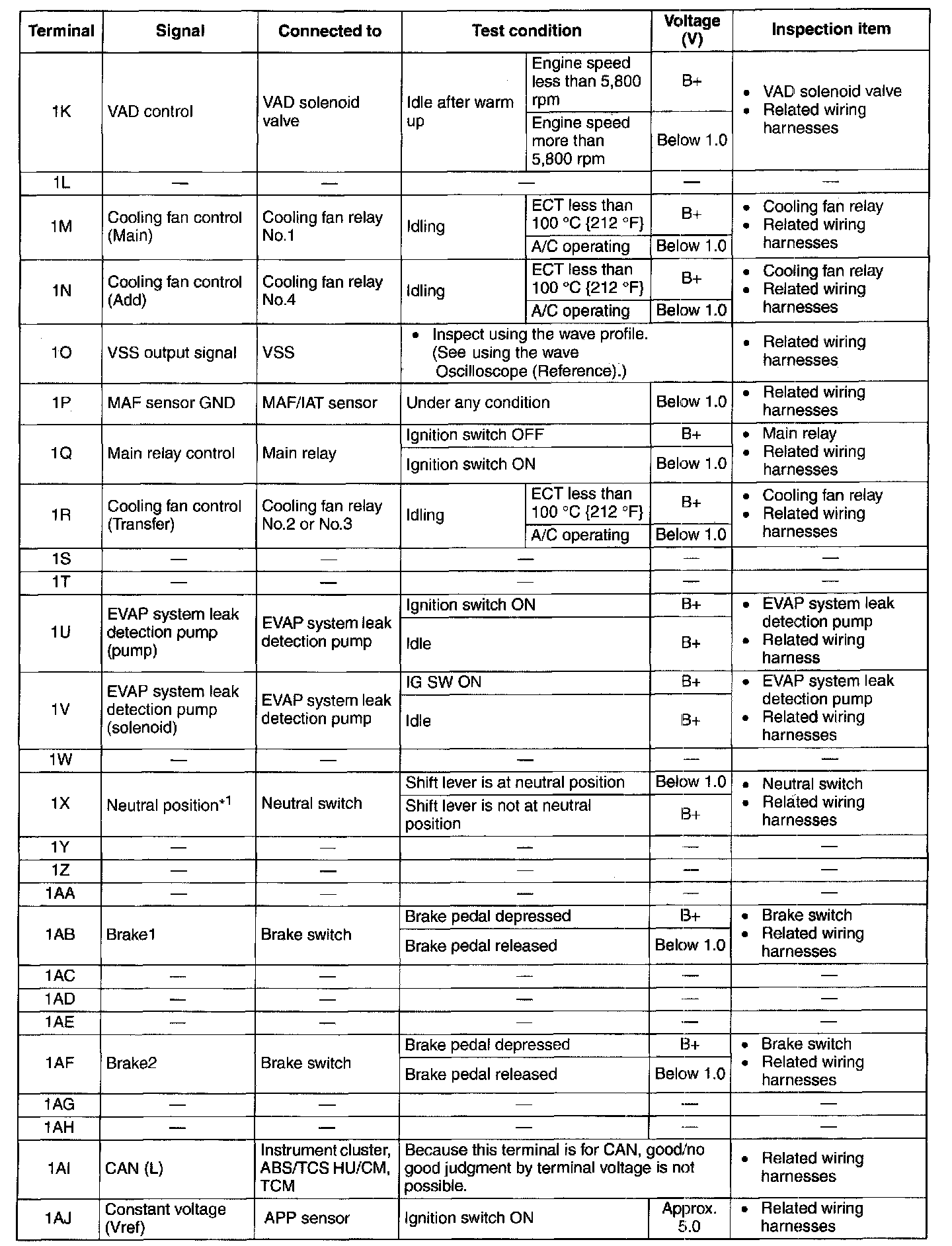

Terminal Voltage Table(Reference) - Terminal(1K-1AJ):

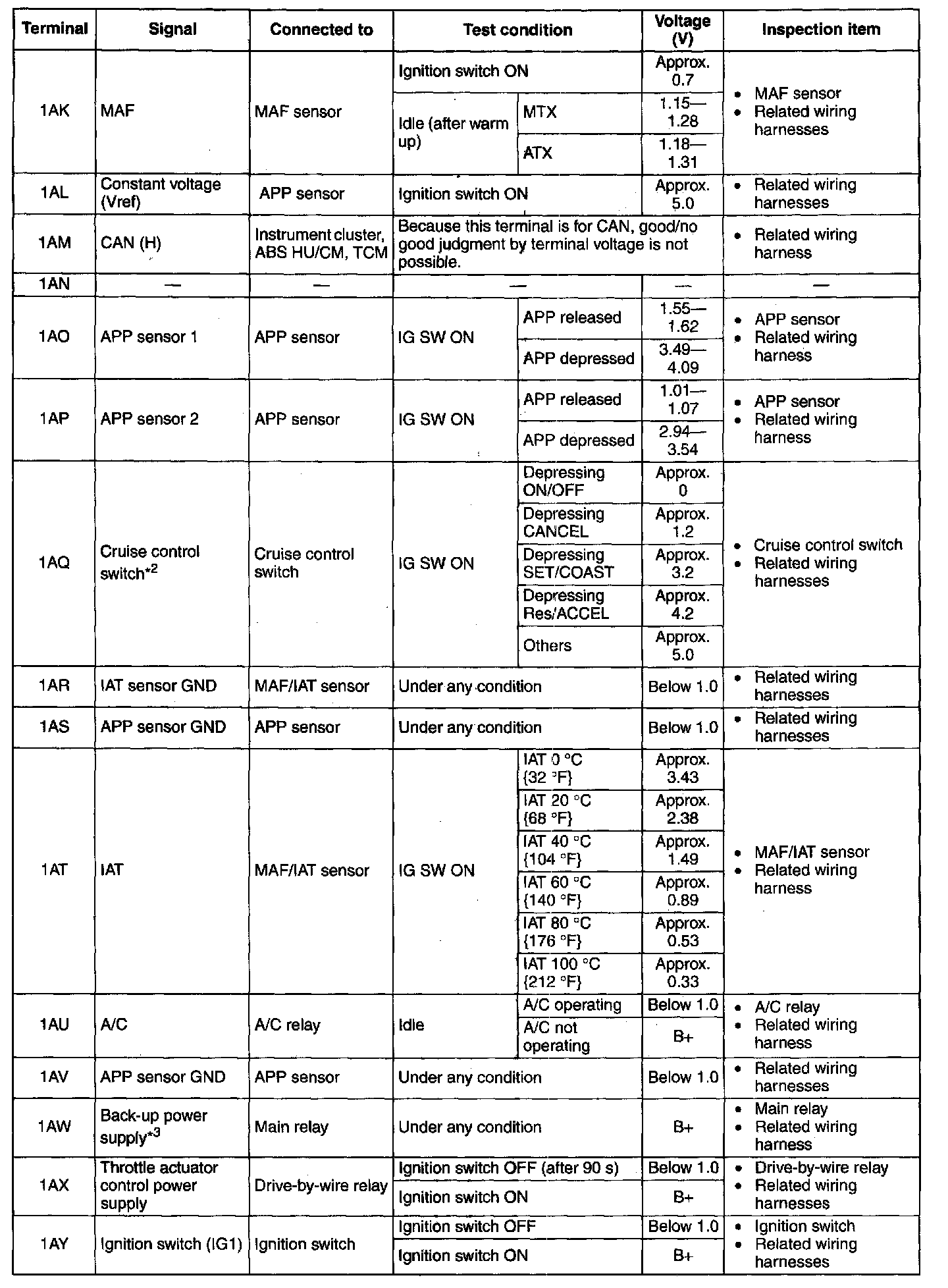

Terminal Voltage Table(Reference) - Terminal(1AK-1AY):

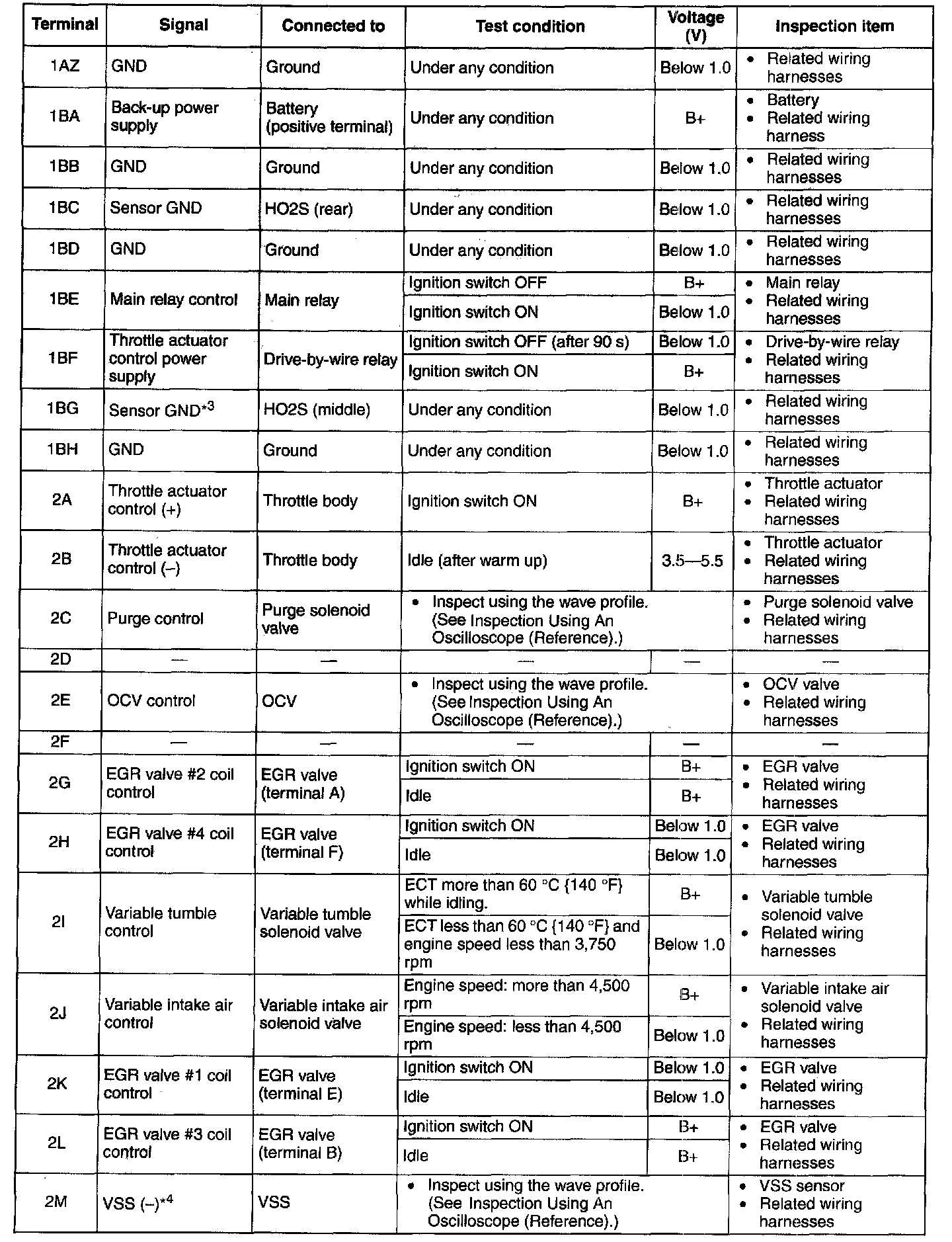

Terminal Voltage Table(Reference) - Terminal(1AZ-2M):

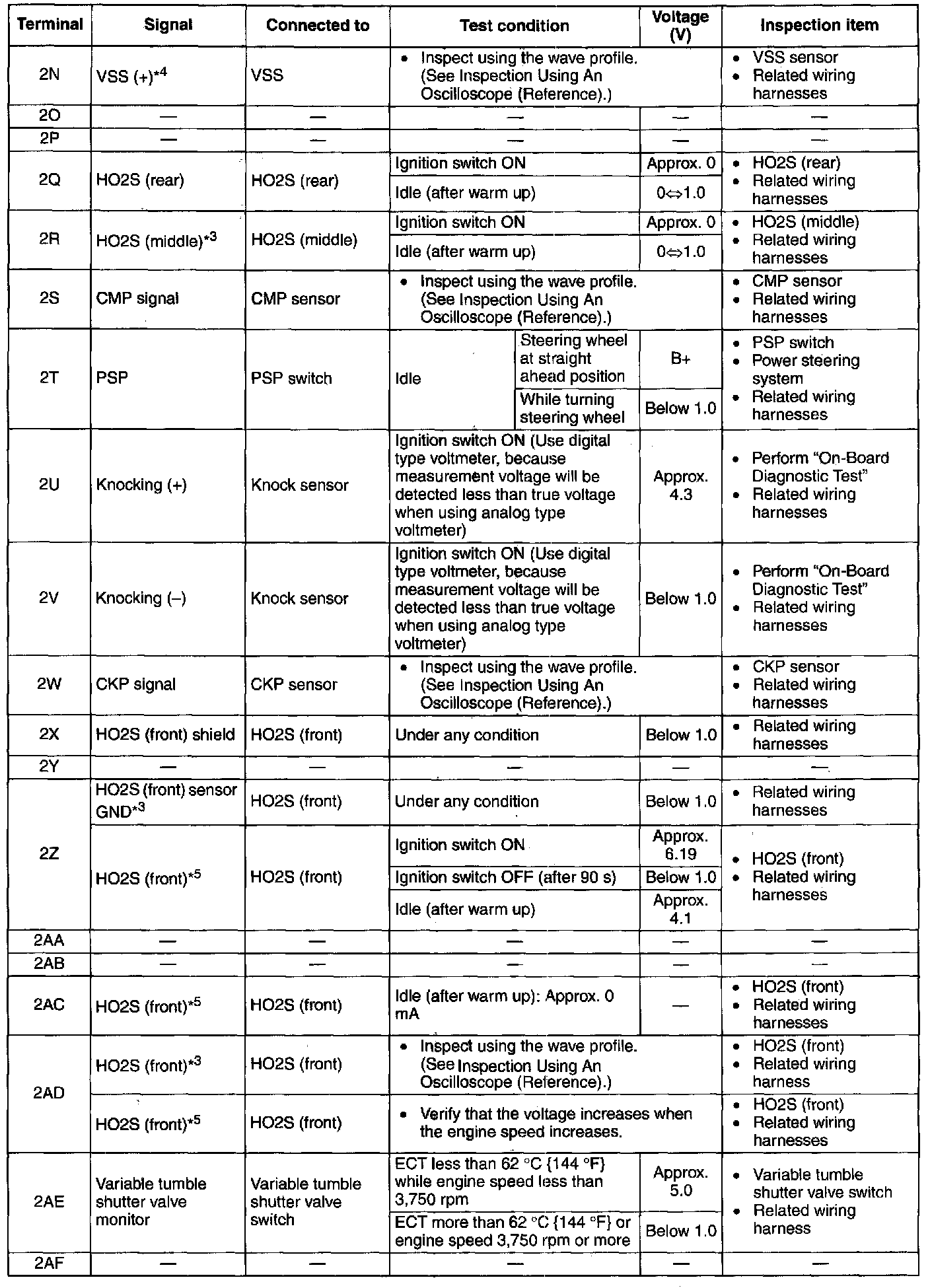

Terminal Voltage Table(Reference) - Terminal(2N-2AF):

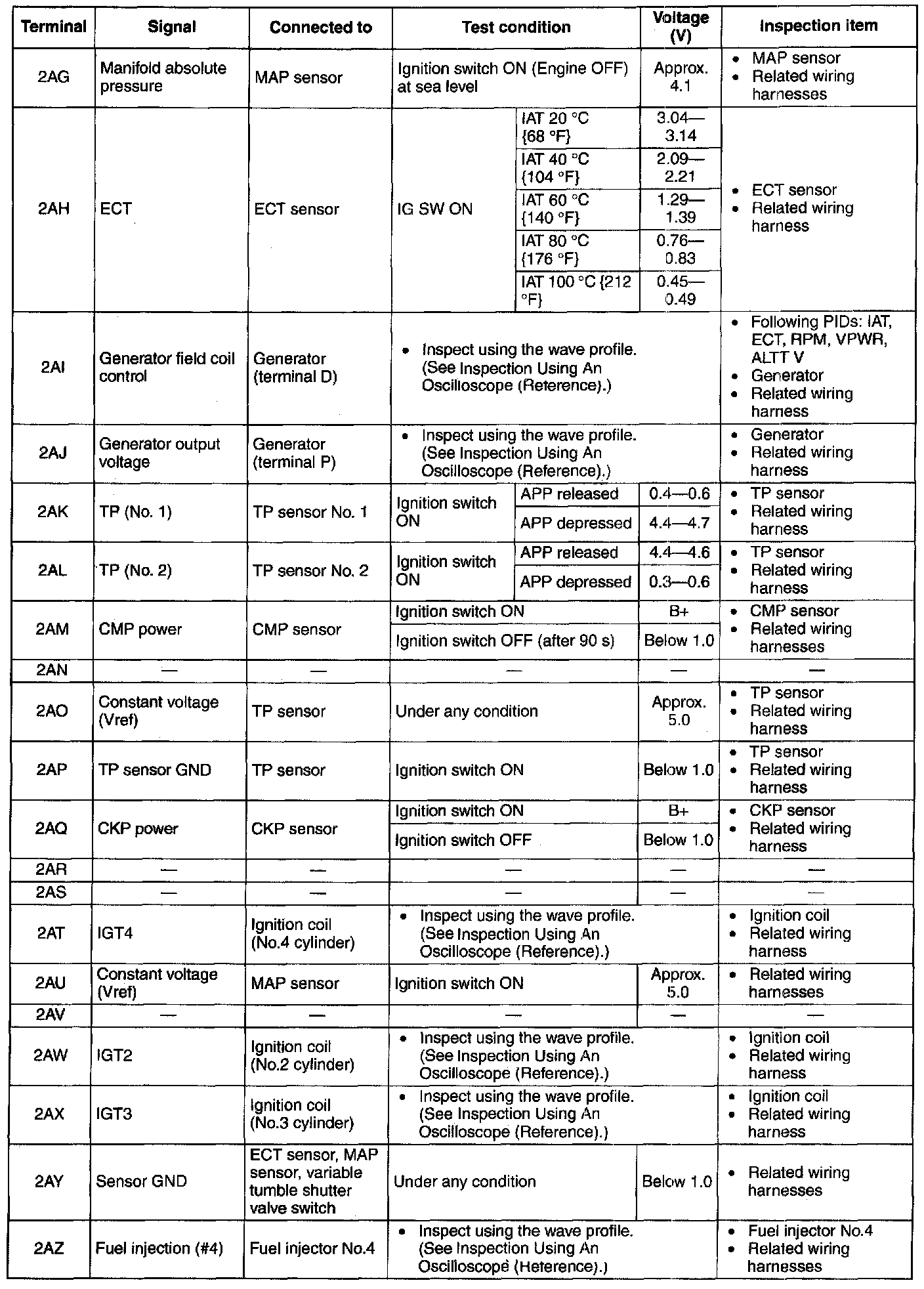

Terminal Voltage Table(Reference) - Terminal(2AG-2AZ):

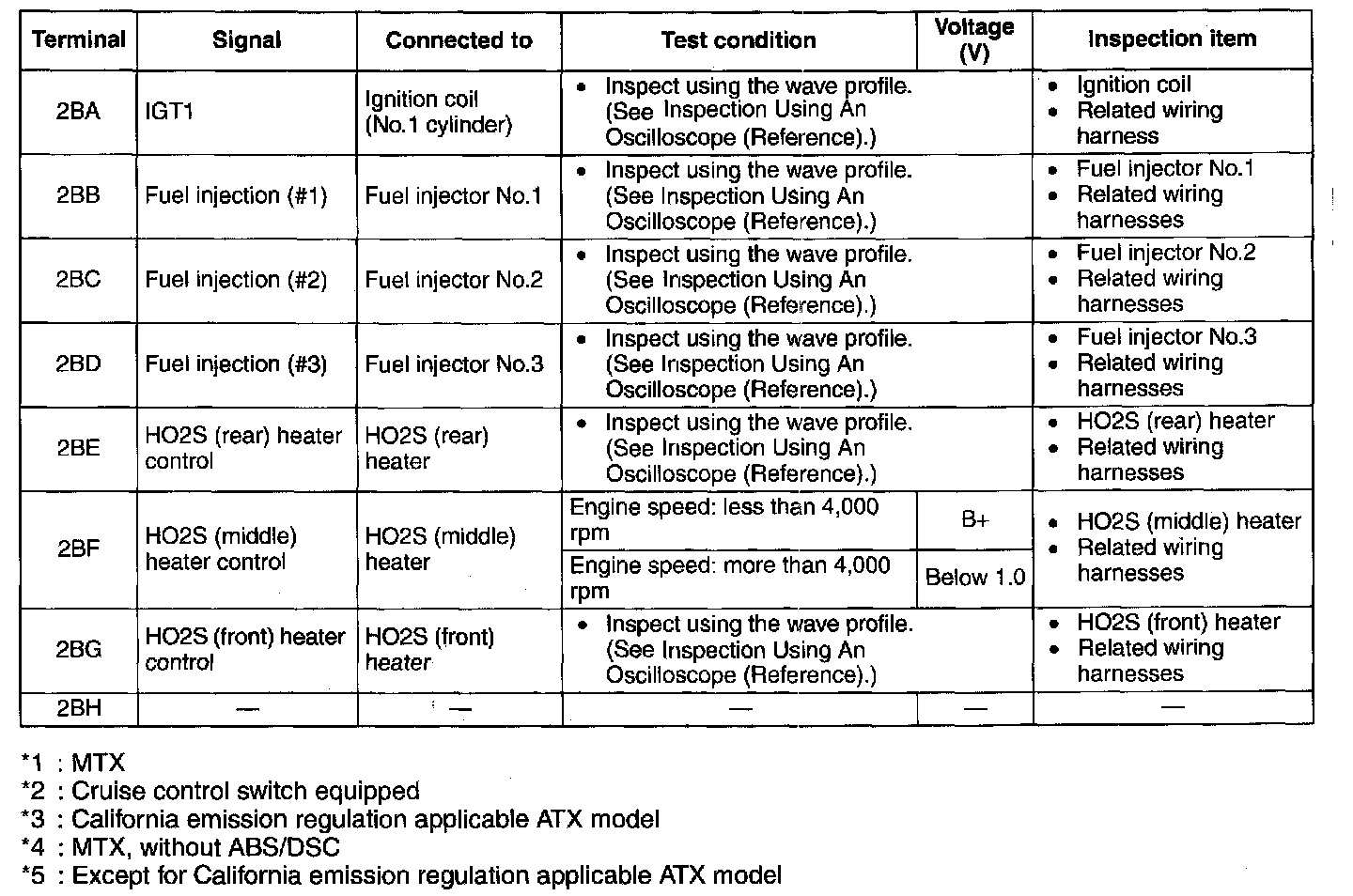

Terminal Voltage Table(Reference) - Terminal(2BA-2BH):
