Knock Sensor: Service and Repair

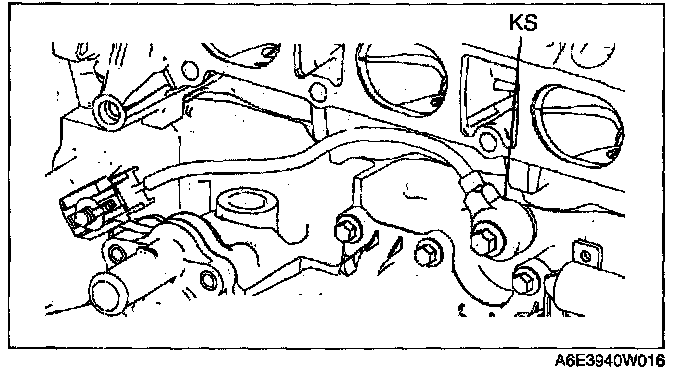

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [L3]




1. Remove the intake manifold.
2. Remove the KS attachment bolt to remove the KS.
3. Install in the reverse order of removal.

Tightening torque: 16.2-23.8N.m {1.66-2.42 kgf.m, 12.0-17.5 ft.lbf}
