Ignition Relay: Testing and Inspection

RELAY INSPECTION

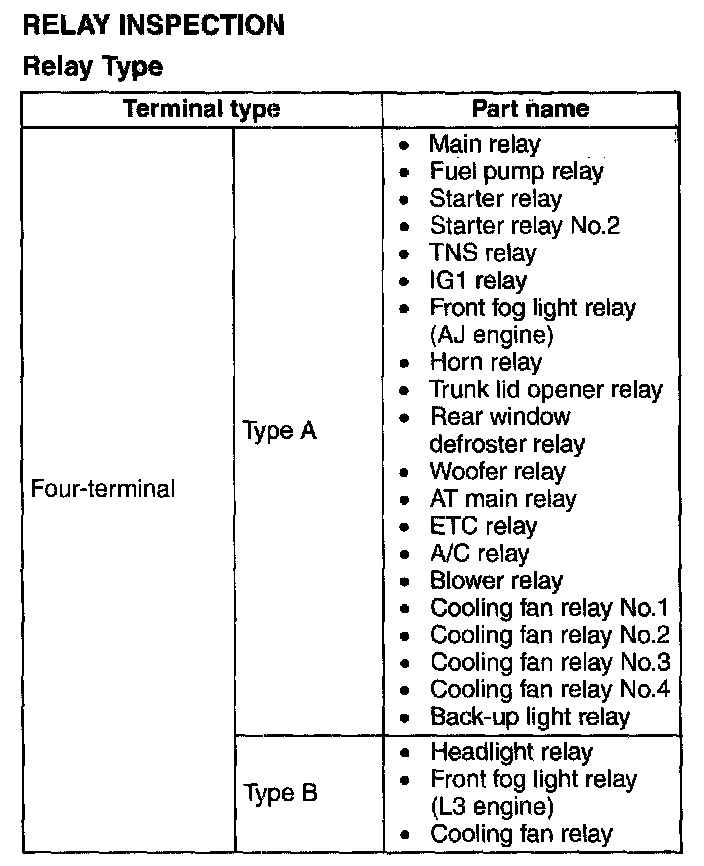

Relay Type





Four-terminal

Type A




1. Remove the relay.

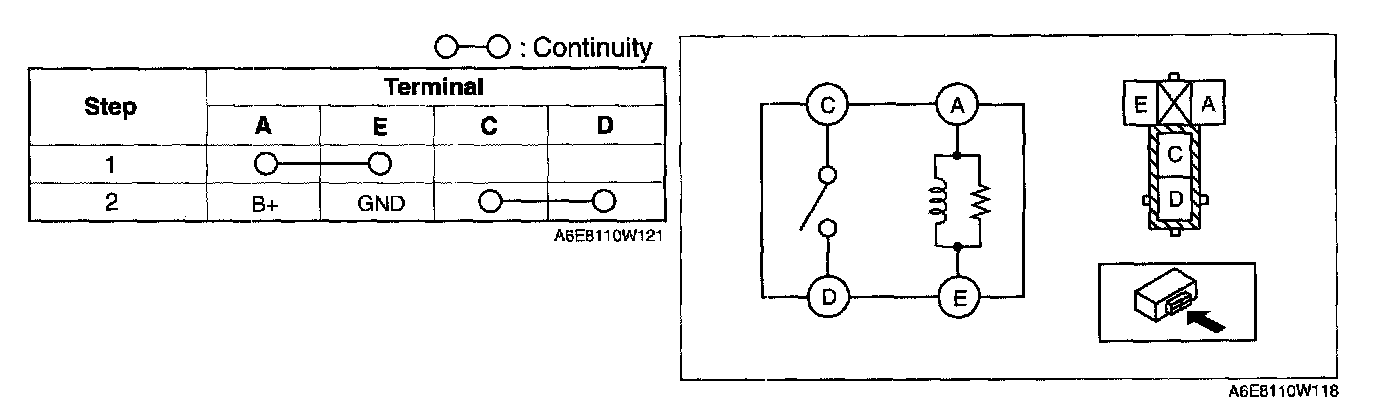

2. Inspect for continuity between the relay terminals.
- If not as specified, replace the relay.
