Ignition System: Testing and Inspection

Spark Test

1. Disconnect the fuel pump relay.
2. Verify that each ignition coil and connector is connected properly.

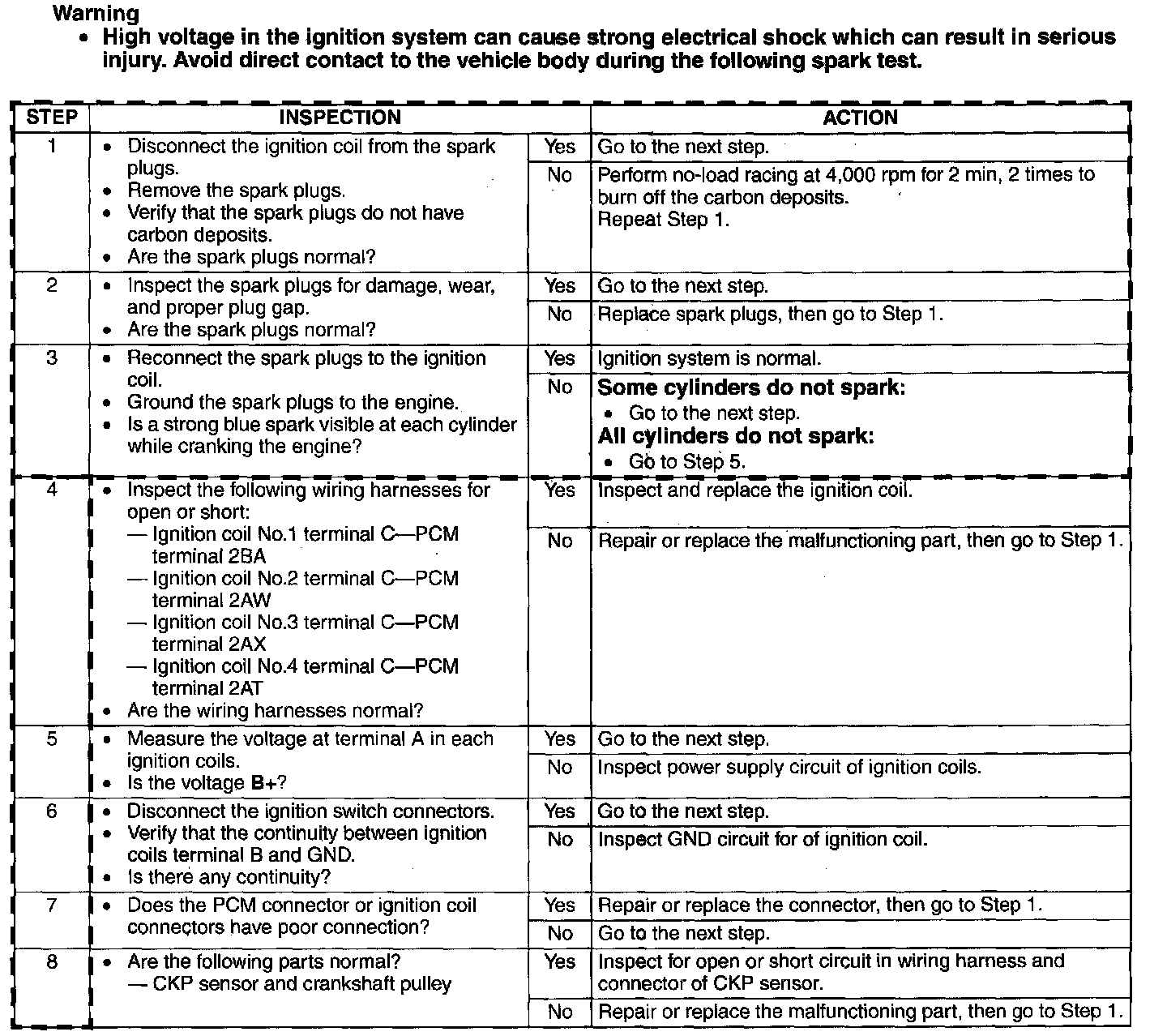

Step 1-Step 8:

3. Inspect the ignition system in the procedure.
