Charging System

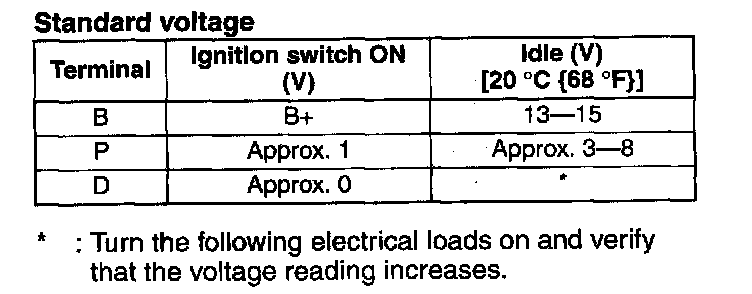

Alternator Specifications






NOTE: Current required for generating power varies with electrical loads applied.





Standard current (Reference)

Measuring conditions:
Room temperature: 20 °C {68 °F}
Voltage: 13.5 V
Engine hot
