Starting System: Testing and Inspection

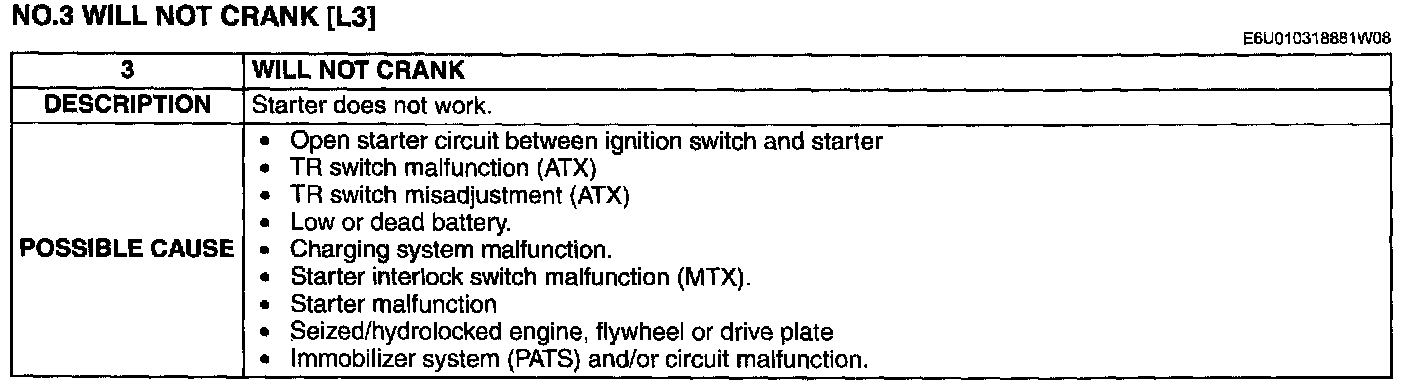

Description / Possible Cause:

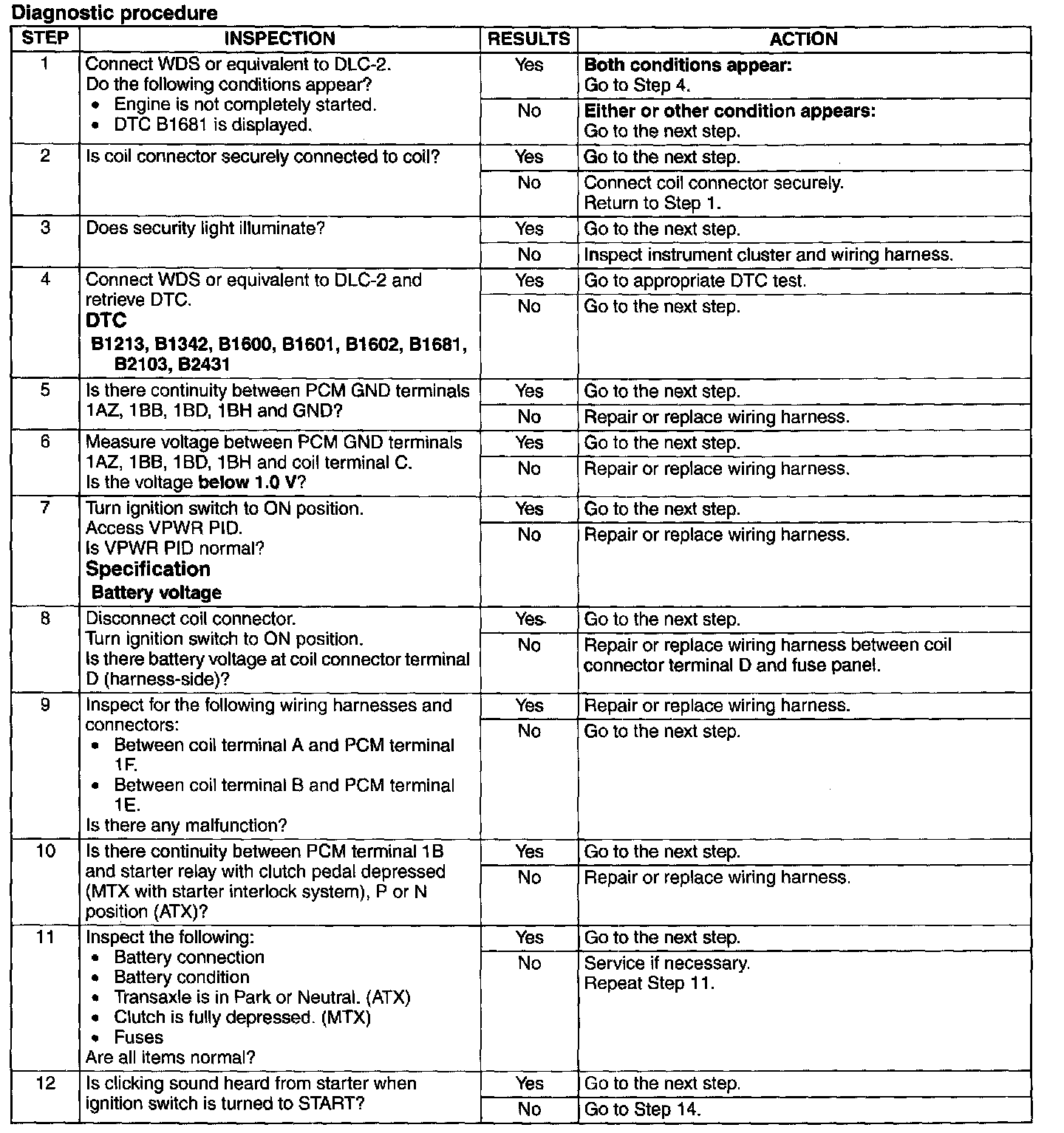

Step 1-Step 12:

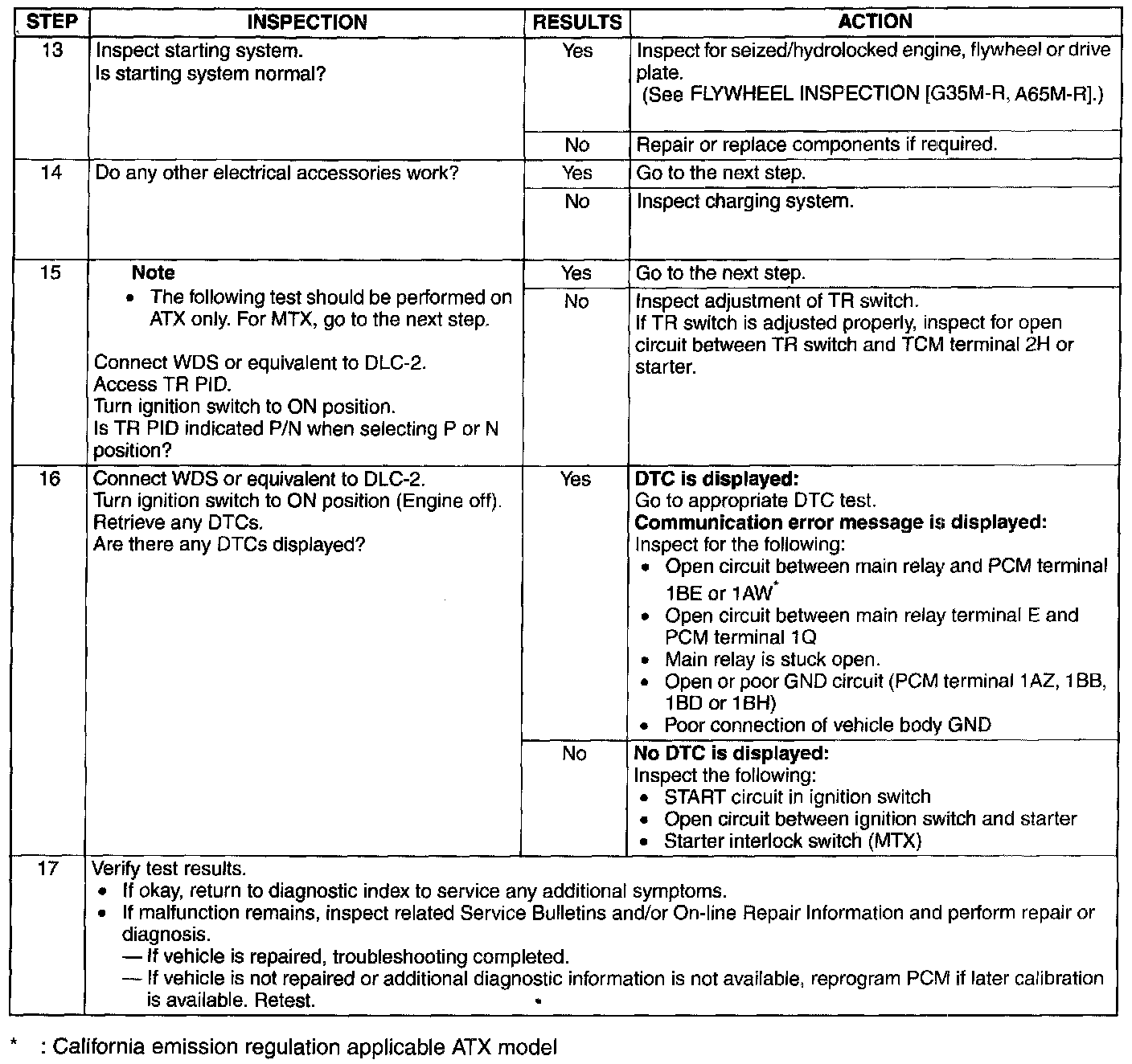

Step 13-Step 17:



Step 1 - 11:



Step 12 - 17:
