Reduction Brake Disassembly/Assembly

REDUCTION BRAKE DISASSEMBLY/ASSEMBLY
1. Perform the preinspection before disassembly.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

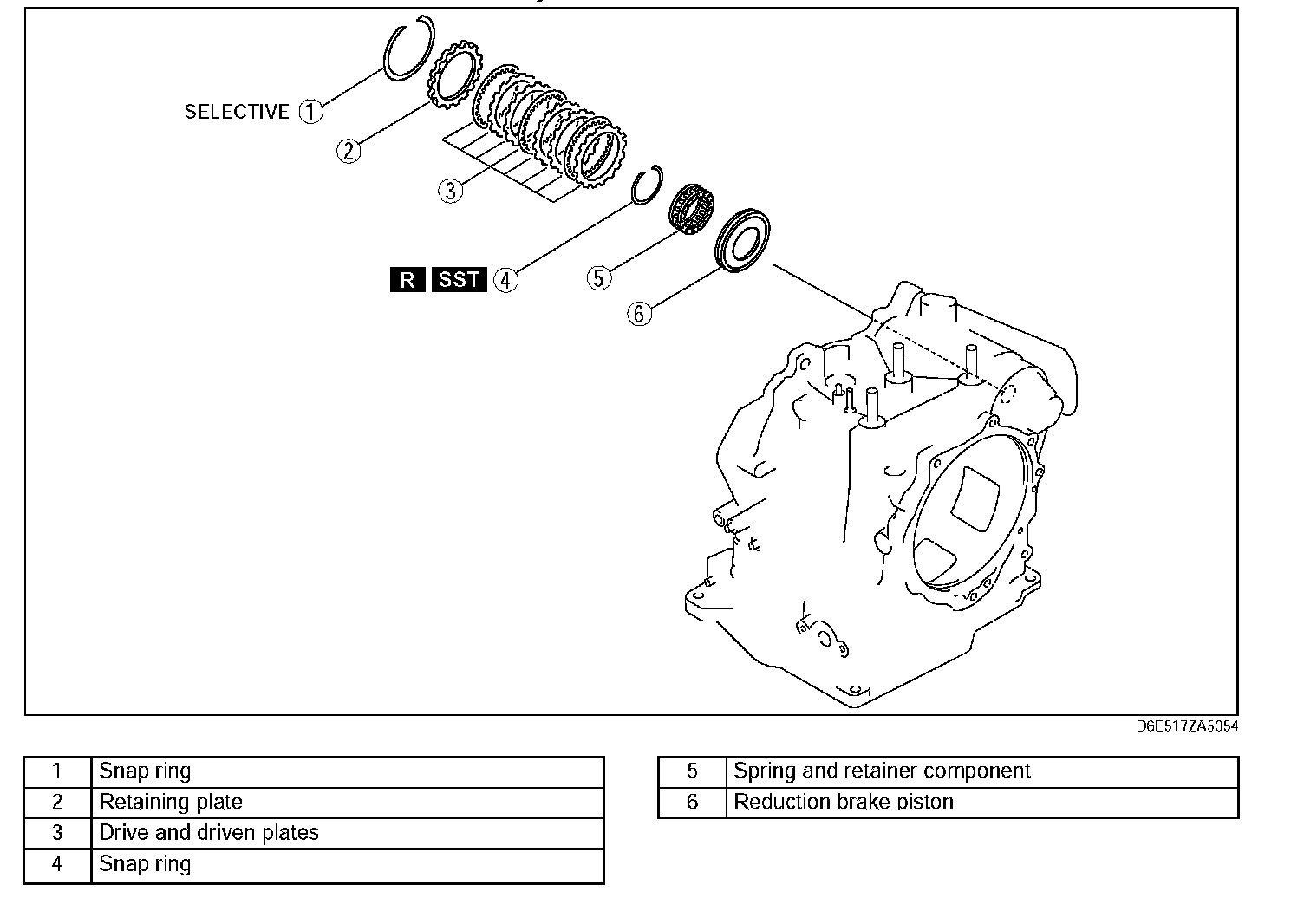

Reduction Brake Disassembly/Assembly:
