Power Outer Mirror Inspection

  1. Disconnect the power outer mirror connector.
  2. Apply battery positive voltage to the power outer mirror terminals, and inspect the operation of the power outer mirror.
    • If there is any malfunction, replace the power outer mirror.
      TERMINAL REFERENCE

      Mirror operation Terminal
      B+ GND
      Up B D
      Down D B
      Left F D
      Right D F

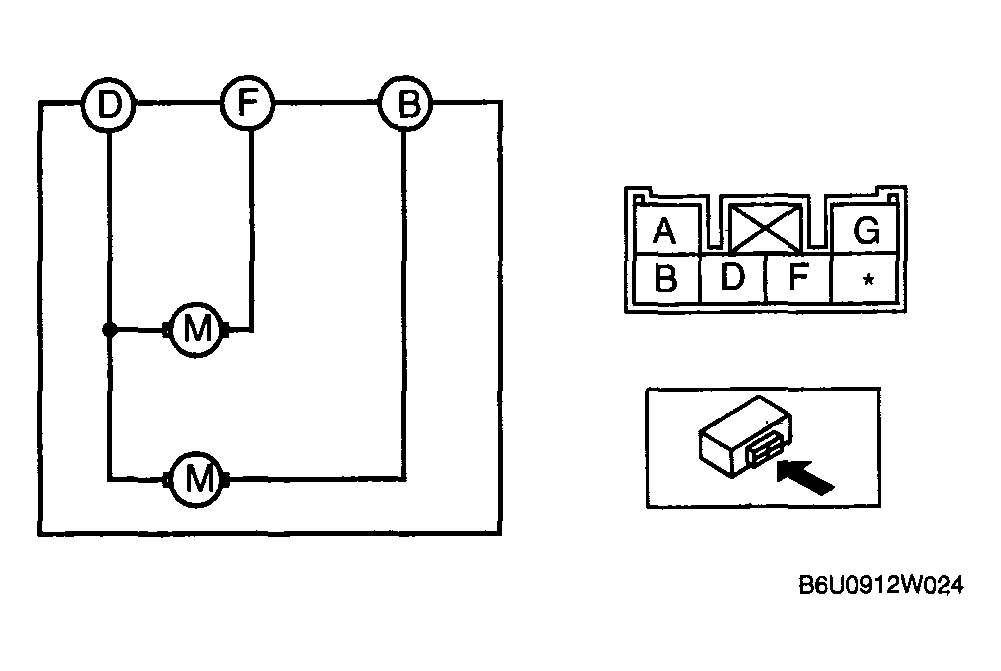

      Fig 1: Inspecting Operation Of Power Outer Mirror
      G04327228Courtesy of MAZDA MOTORS CORP.
  3. Inspect for continuity between the power outer mirror heater terminals.
    • If there is any malfunction, replace the power outer mirror.

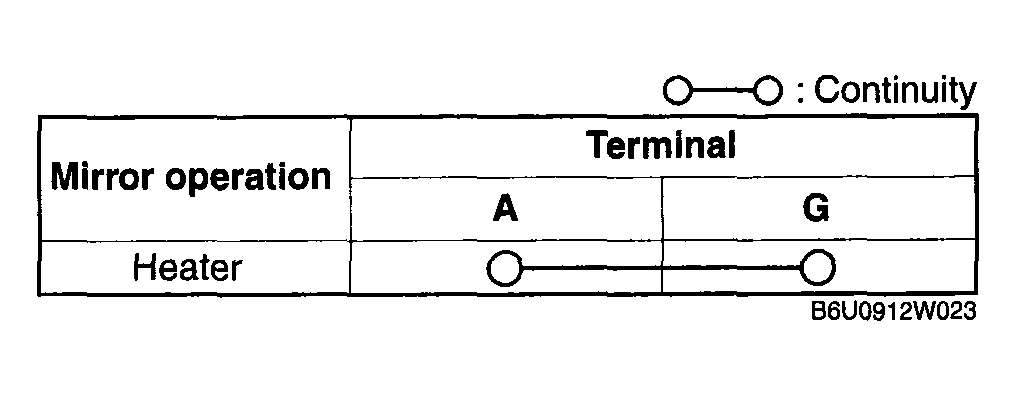

      Fig 2: Mirror Continuity Reference Chart
      G04327229Courtesy of MAZDA MOTORS CORP.

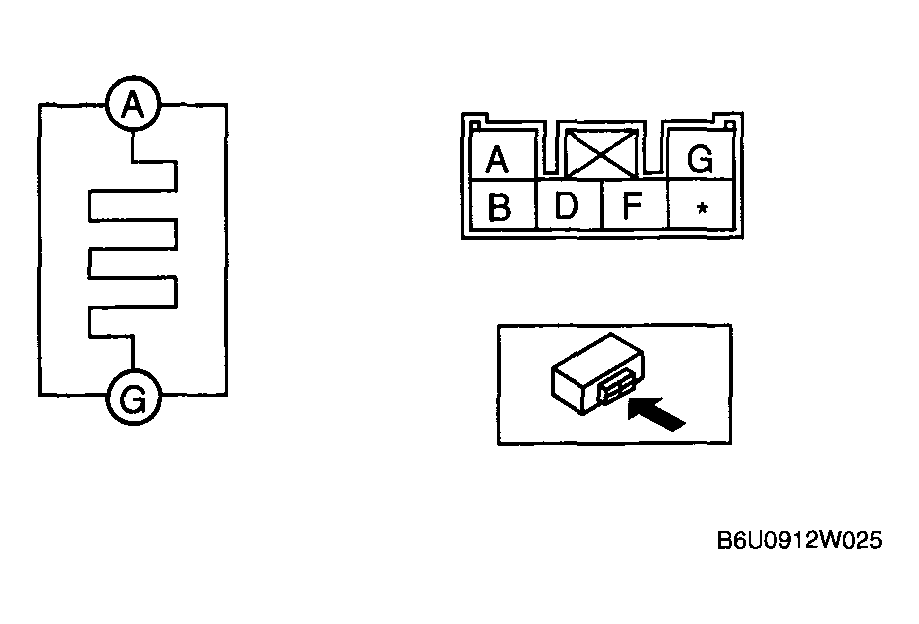

      Fig 3: Inspecting Continuity Between Power Outer Mirror Heater Terminals
      G04327230Courtesy of MAZDA MOTORS CORP.
