Power Window Regulator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door glass or rear door glass. See FRONT DOOR GLASS REMOVAL/INSTALLATION . See REAR DOOR GLASS REMOVAL/INSTALLATION .
  3. Remove the front door speaker or rear door speaker. See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ) See REAR DOOR SPEAKER REMOVAL/INSTALLATION )
  4. Remove the power window motor. See POWER WINDOW MOTOR REMOVAL/INSTALLATION .
  5. Remove the nuts.

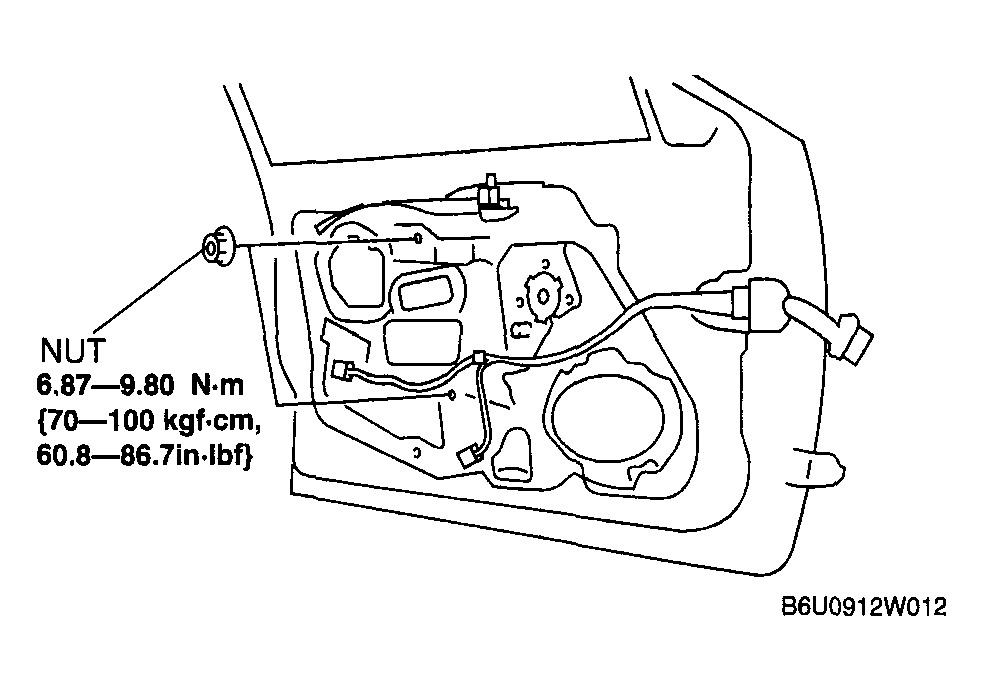

    Fig 1: Power Window Motor Mounting Nut & Torque Specification
    G04327175Courtesy of MAZDA MOTORS CORP.
  6. Insert hand through the speaker installation hole, rotate the regulator drum housing in the direction shown in the figure, and disengage the regulator drum housing from the door unit connection tabs.

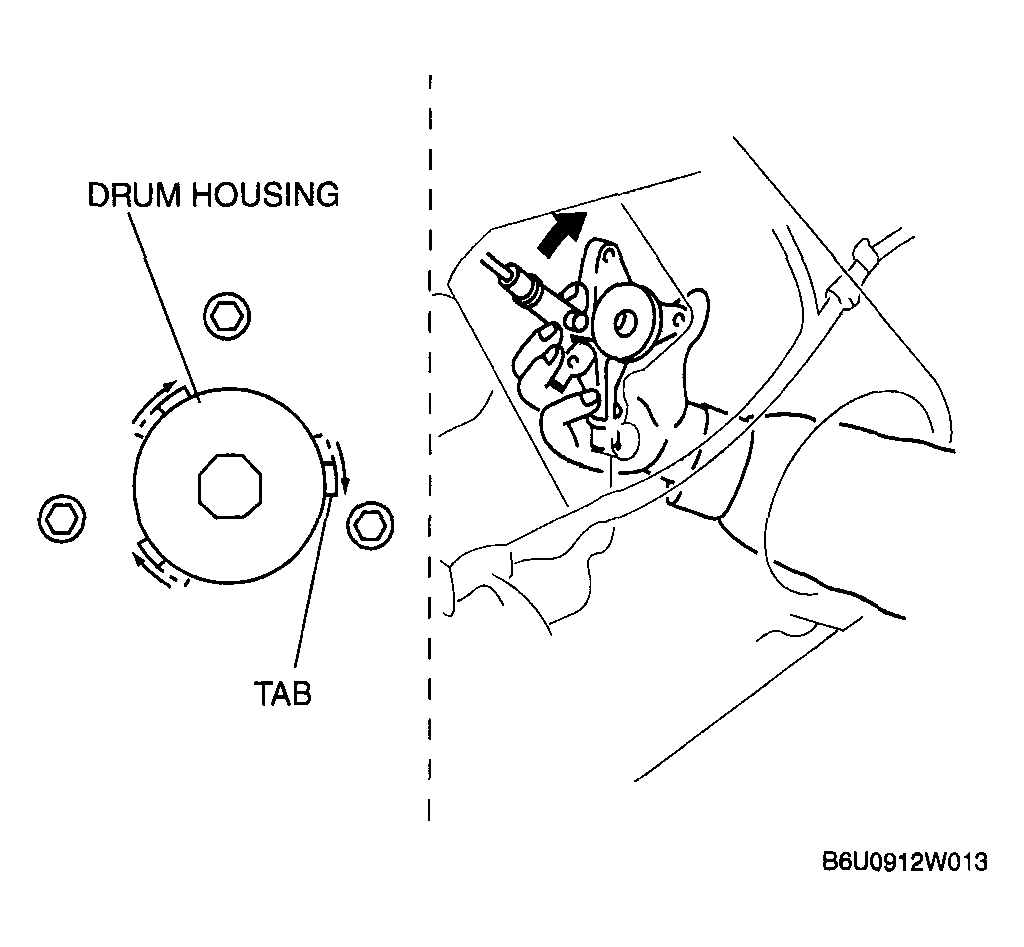

    Fig 2: Rotating Regulator Drum Housing
    G04327176Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window regulator from the speaker installation hole.
  8. Install in the reverse order of removal.

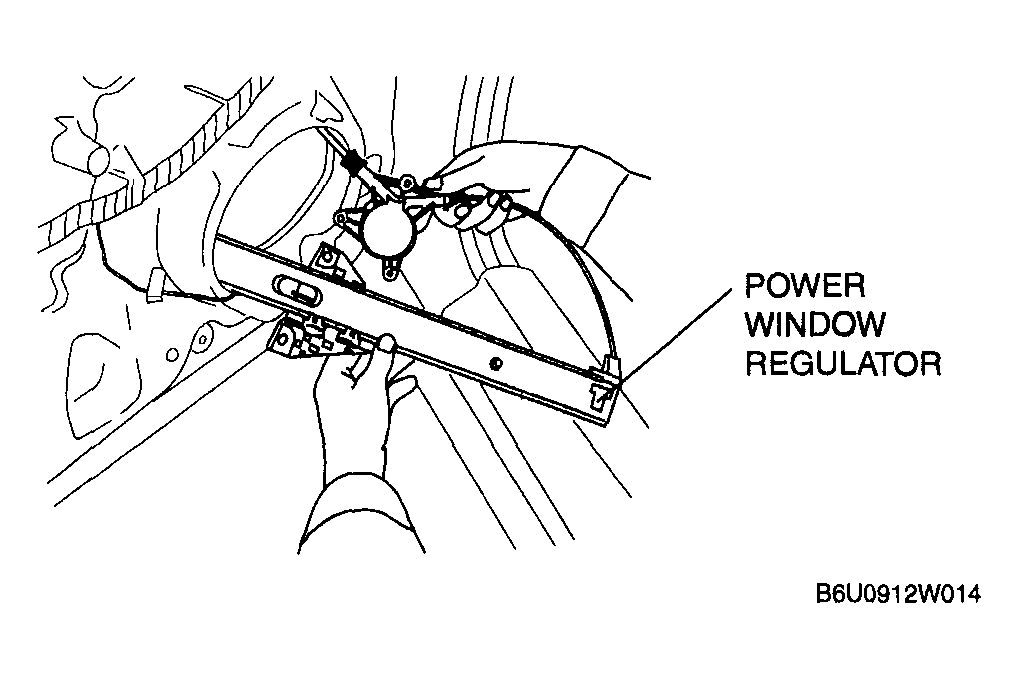

    Fig 3: Removing Power Window Regulator From Speaker Installation Hole
    G04327177Courtesy of MAZDA MOTORS CORP.
