Lateral-G Sensor Inspection

Connect the connector.
Turn ignition switch on, verify the voltage between terminals B and ground terminal E under the following conditions.
- If not within the specification, replace the combined sensor.
1. Horizontal
  Voltage

  2.4-2.6 V

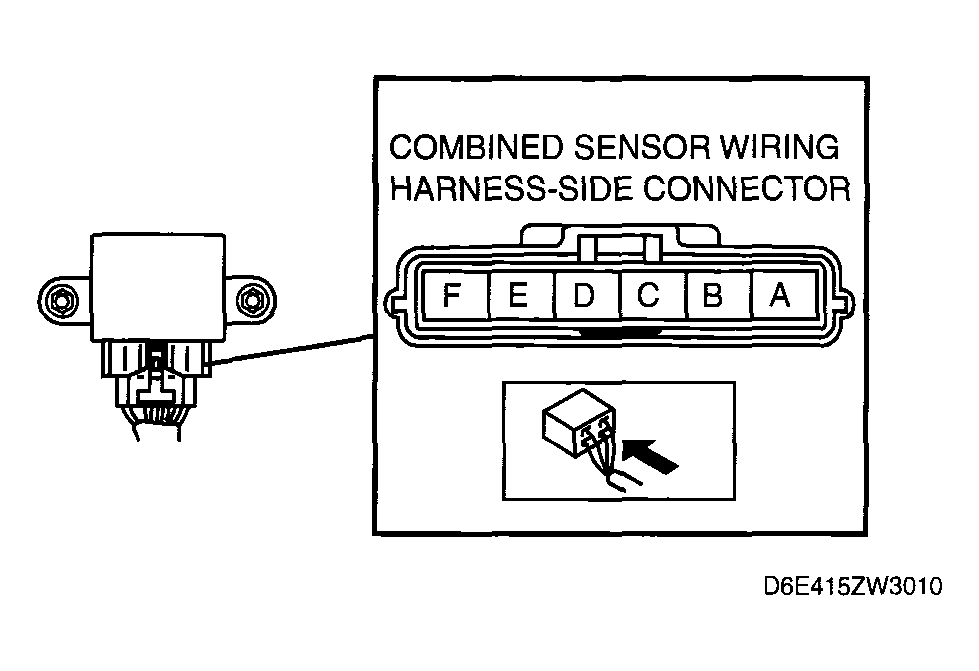

  Fig 1: Identifying Combined Sensor Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
2. Facing up (inclined 90° from horizontal)
  Voltage

  3.3-3.7 V

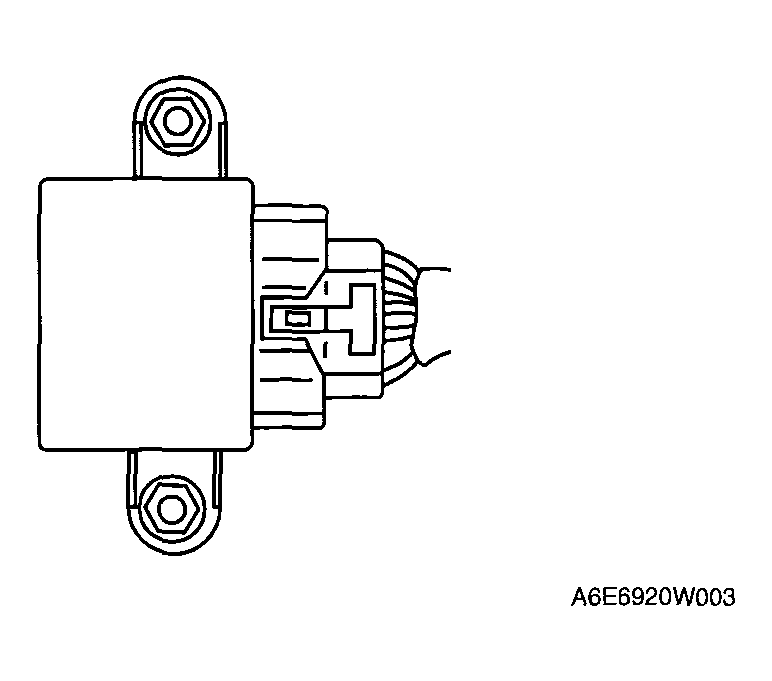

  Fig 2: Identifying Combined Sensor Facing Up Position
  Courtesy of MAZDA MOTORS CORP.
3. Facing down (declined 90° from horizontal)
  Voltage

  1.3-1.7 V

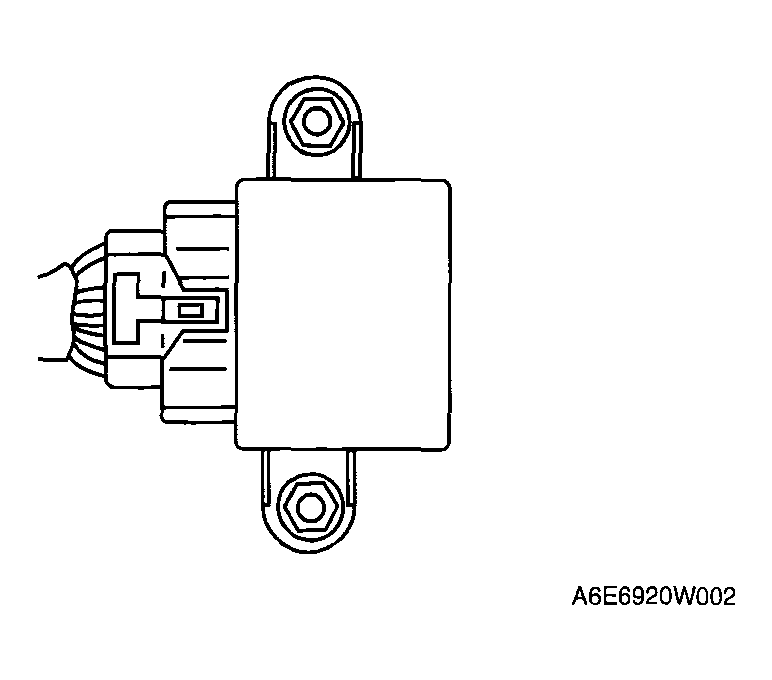

  Fig 3: Identifying Combined Sensor Facing Down Position
  Courtesy of MAZDA MOTORS CORP.
