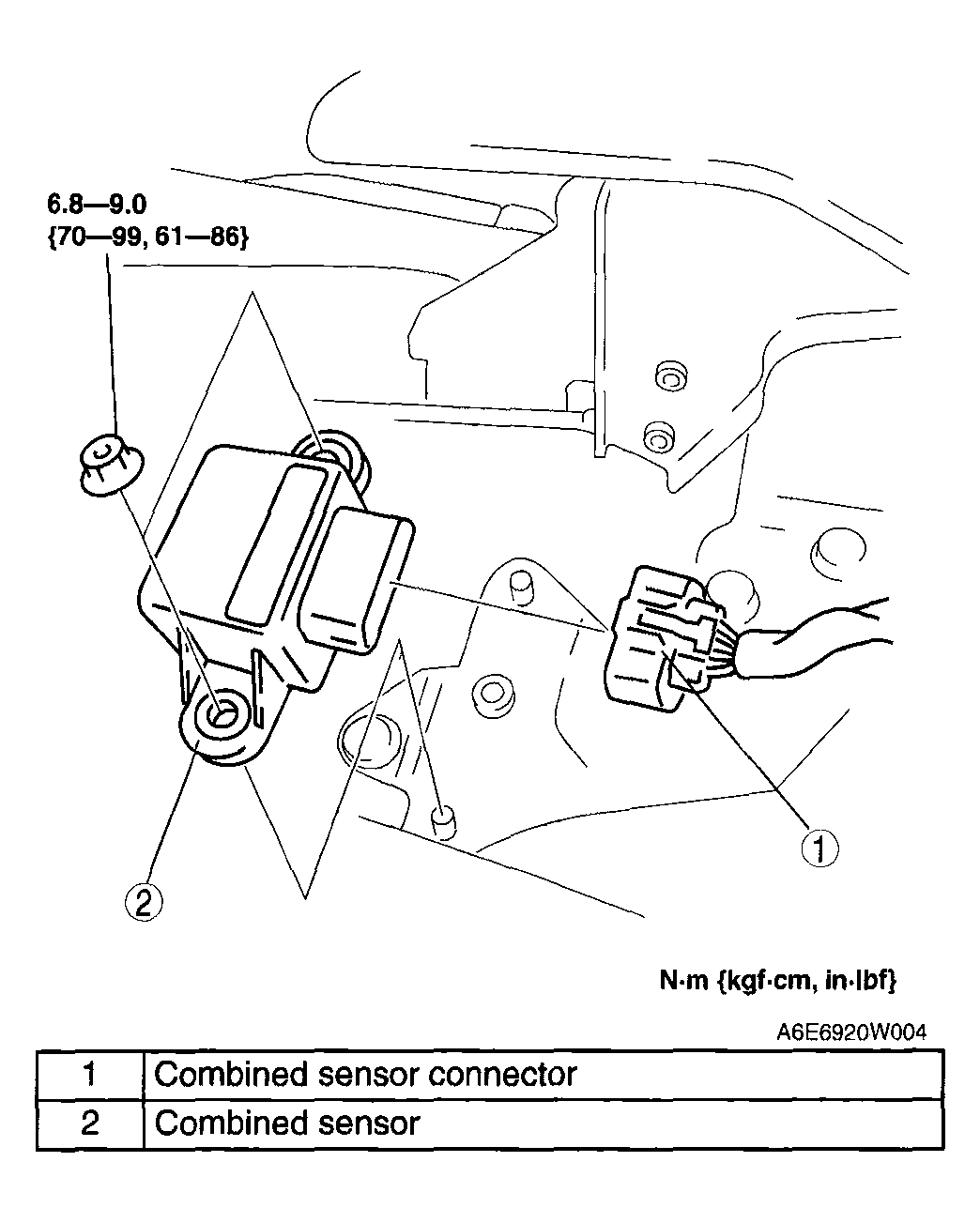

Combined Sensor Removal/Installation
CAUTION:
- The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.
- Remove the console. (See CONSOLE REMOVAL/INSTALLATION. )
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, perform the combined sensor initialization procedure. (See COMBINED SENSOR INITIALIZATION PROCEDURE ).
