Connector Installation Note

  1. Verify that the lock lever of the harness connector is securely locked.

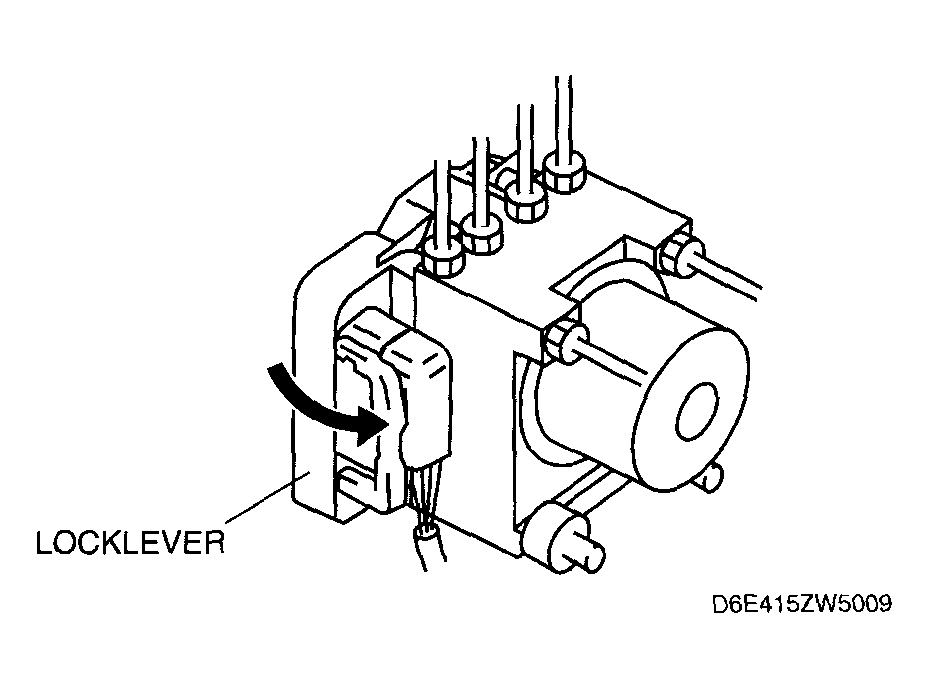

    Fig 1: Installing Lock Lever
    G04325982Courtesy of MAZDA MOTORS CORP.
