Connector Removal Note

  1. Release the lock lever to unlock it.
  2. Remove the connector.

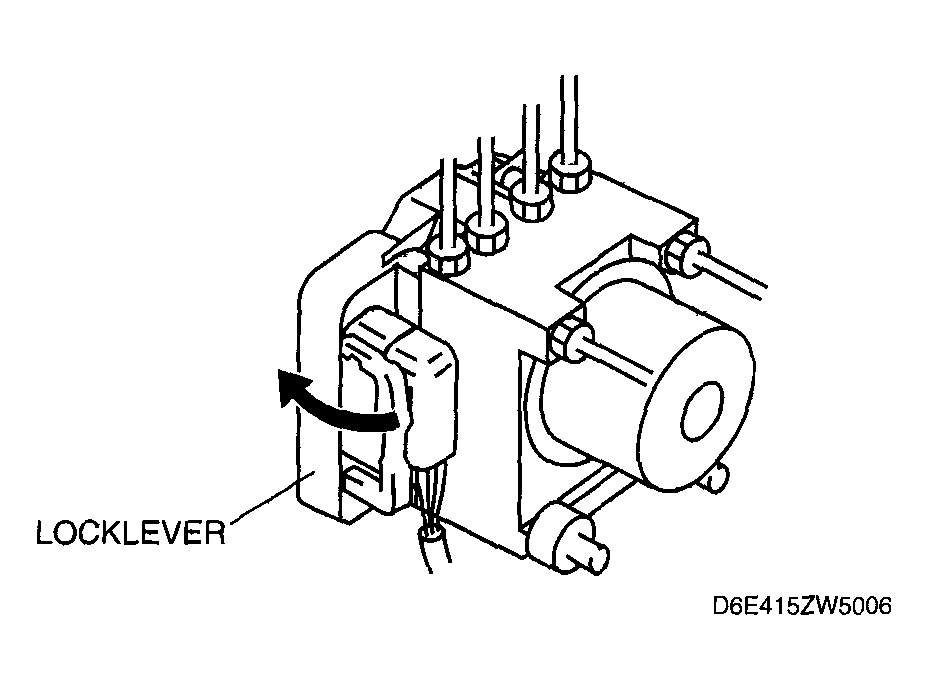

    Fig 1: Removing Lock Lever
    G04325979Courtesy of MAZDA MOTORS CORP.
