DSC HU/Cm Removal/Installation: Notes
CAUTION:
- When replacing the DSC HU/CM, configuration procedure must be done before removing the DSC HU/CM. If configuration is not completed before removing the DSC HU/CM, DTC B2477 will be detected.
- The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.
- Configure the DSC HU/CM (only when replacing it). (See DSC HU/CM CONFIGURATION ).

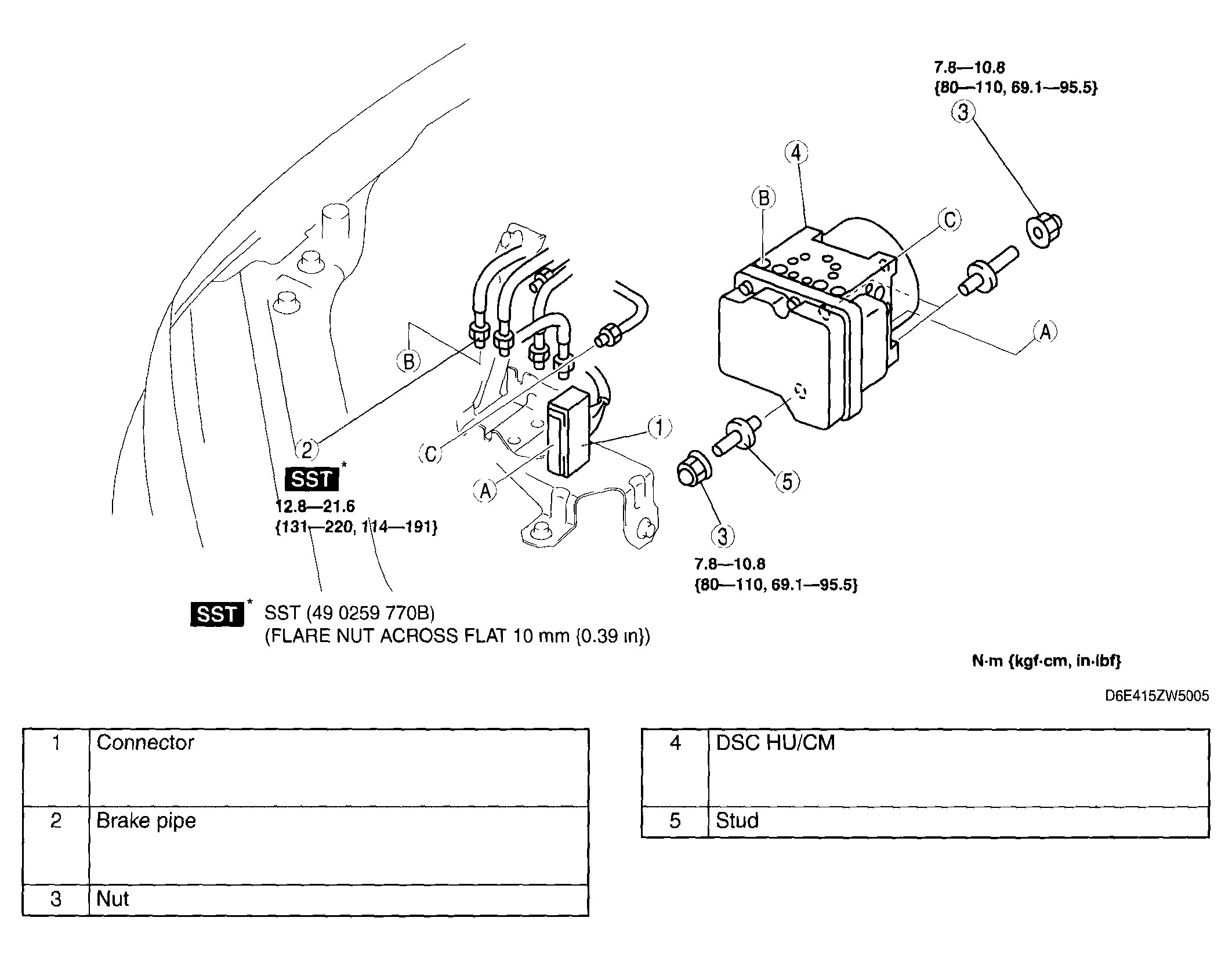

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Perform the initialization procedures for the combined sensor. (See COMBINED SENSOR INITIALIZATION PROCEDURE ).
