DSC Location Index

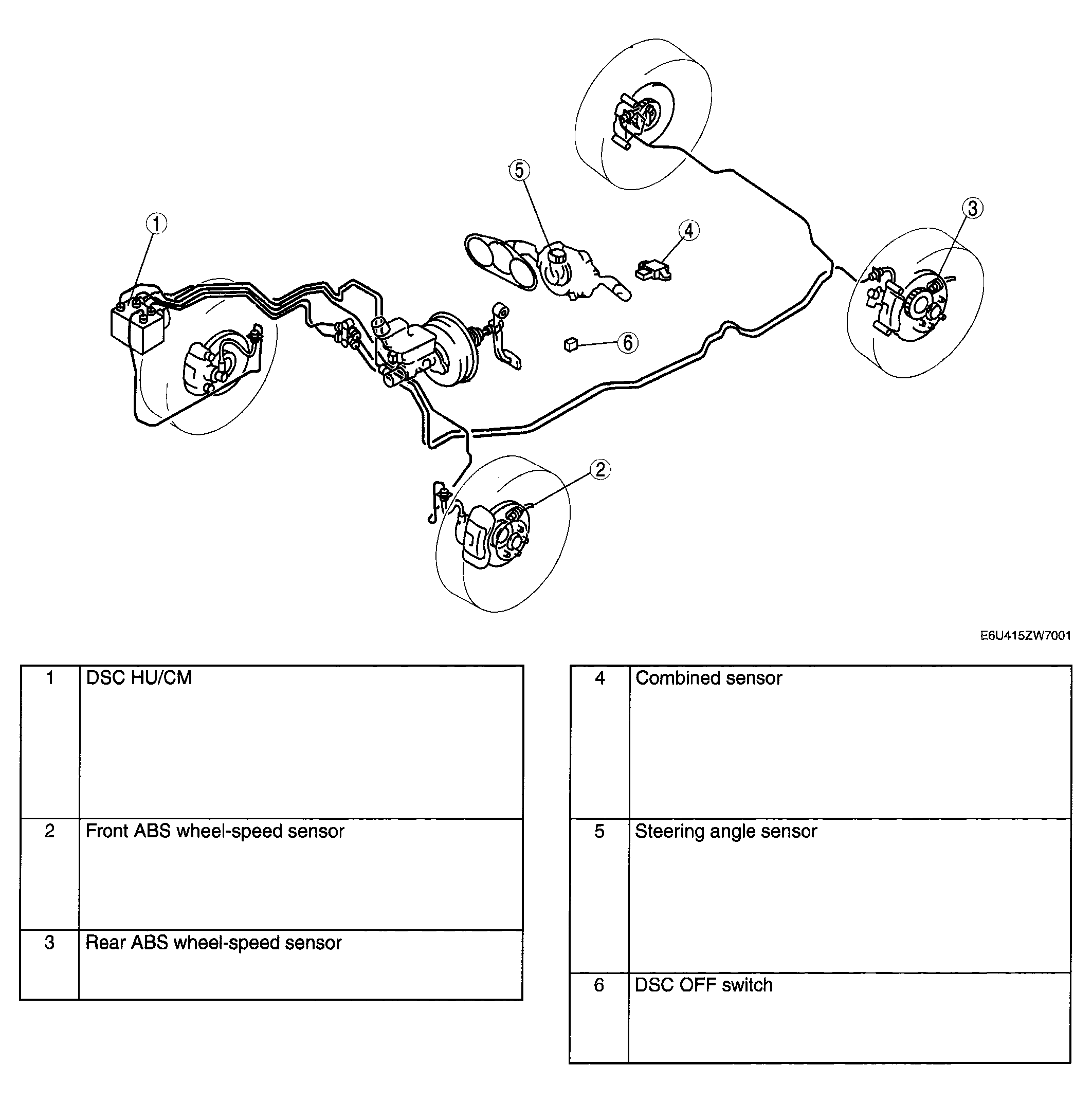

Fig 1: Identifying DSC Component Location
G04325974Courtesy of MAZDA MOTORS CORP.
