Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION. )
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

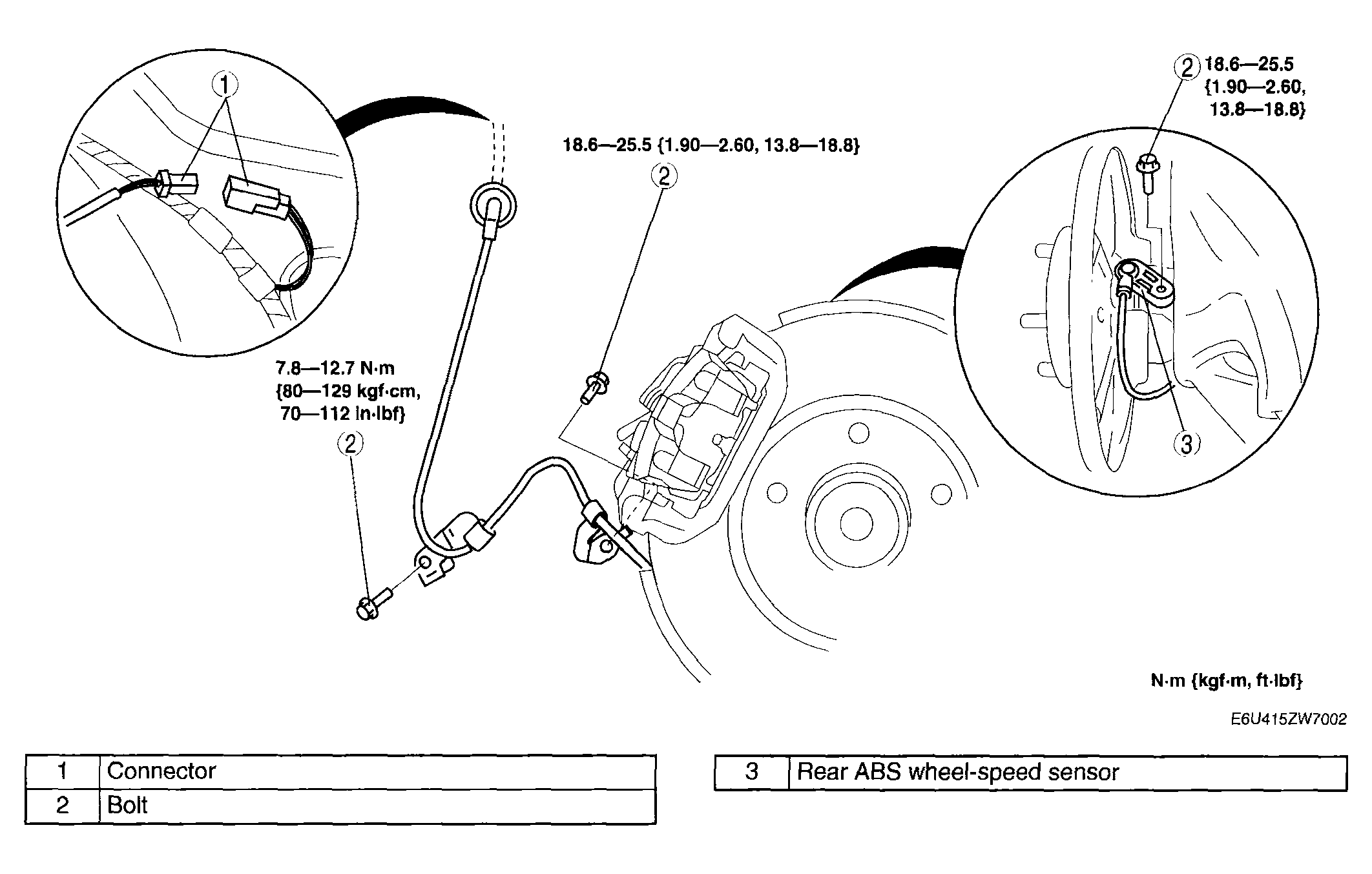

    Fig 1: Rear ABS Wheel-Speed Sensor & Torque Specification
    G04325985Courtesy of MAZDA MOTORS CORP.
