Open circuit
- If there is no continuity, the circuit is open. Repair or replace the wiring harness.
- CMP sensor terminal A and main relay terminal C

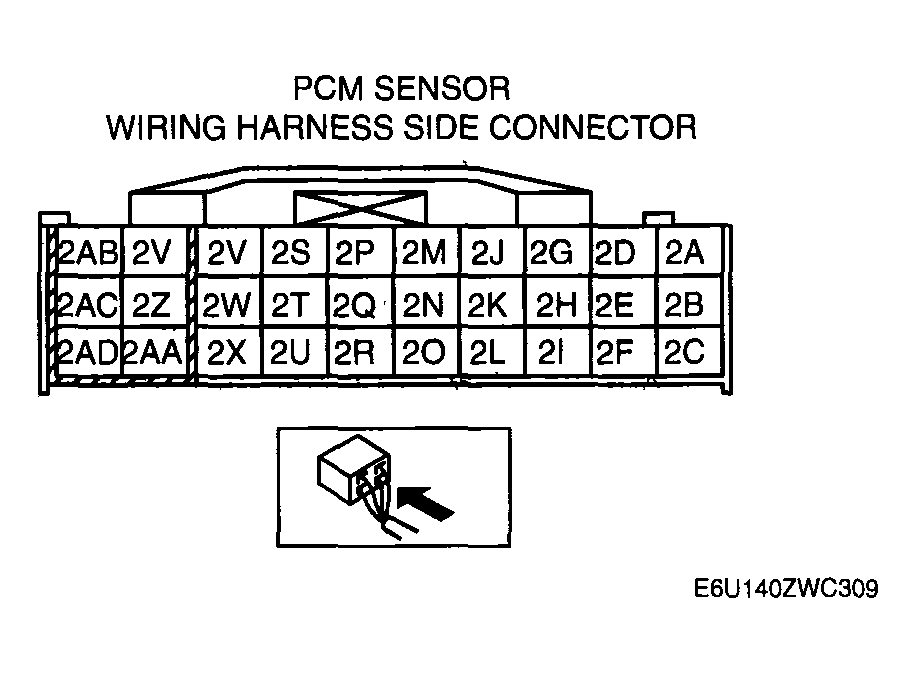

- CMP sensor terminal B and PCM terminal 2H
- CMP sensor terminal C and PCM terminal 2E
Courtesy of MAZDA MOTORS CORP.
