Front Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [L3 WITH TC] or FRONT SEAT REMOVAL/INSTALLATION [EXCEPT L3 WITH TC] ).
  3. Disconnect the buckle switch connector.

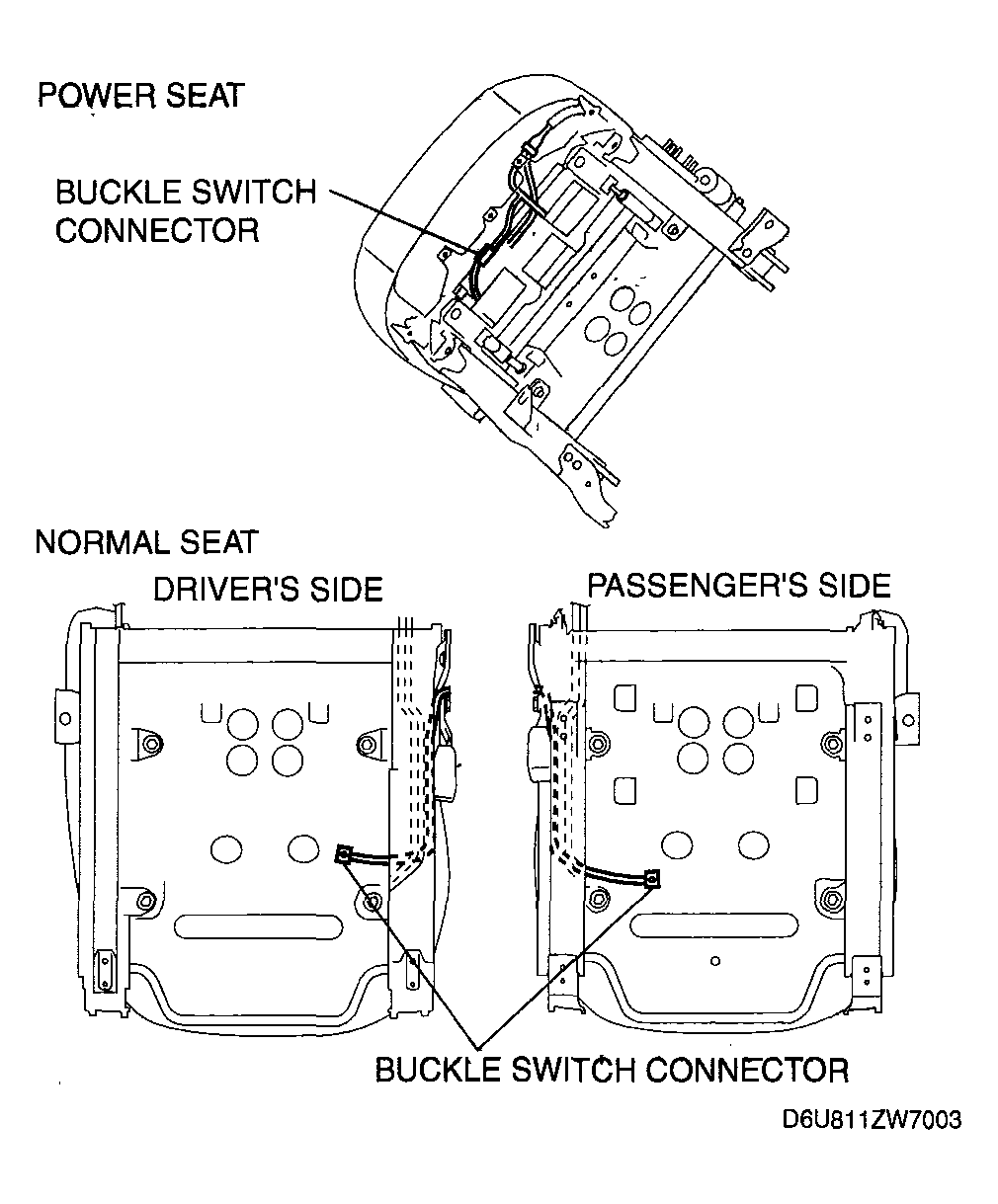

    Fig 1: Disconnecting Buckle Switch Connector
    G04327006Courtesy of MAZDA MOTORS CORP.
  4. Remove bolt.
  5. Install in the reverse order of removal.

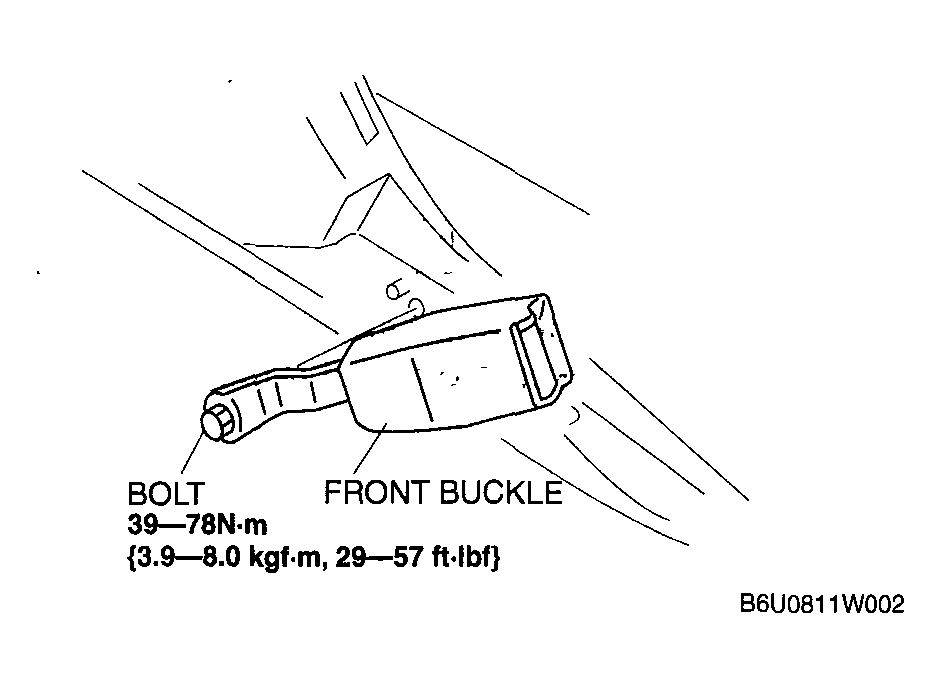

    Fig 2: Front Buckle & Torque Specification
    G04327007Courtesy of MAZDA MOTORS CORP.
