Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION [SPORT SEDAN] or REAR SEAT REMOVAL/INSTALLATION [MAZDASPEED6] ).
  2. Remove the bolts.
  3. Remove the rear buckles.
  4. Install in the reverse order of removal.

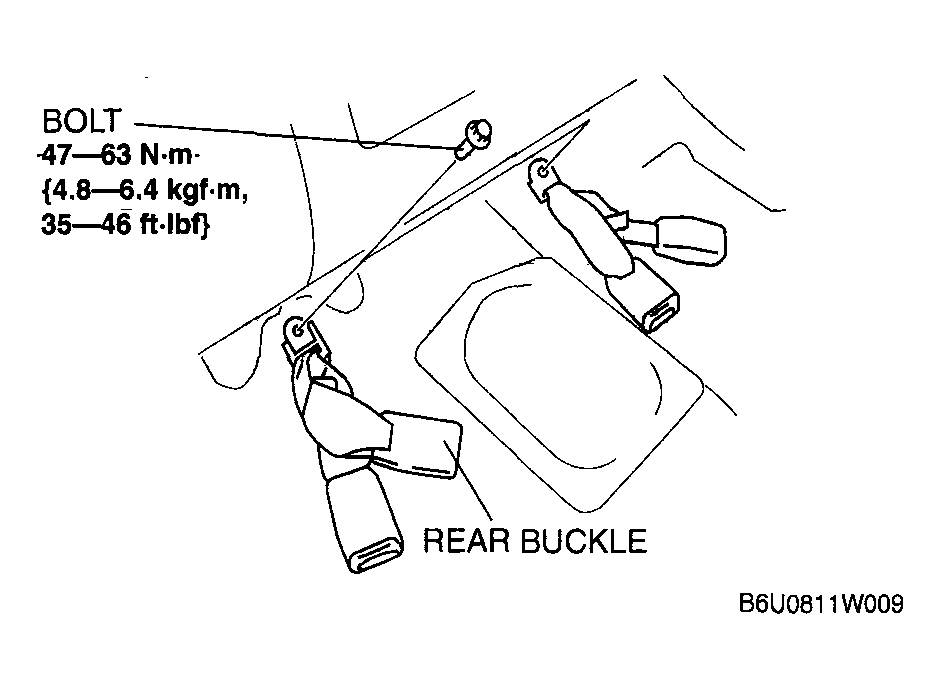

    Fig 1: Rear Seat Belt Buckles & Torque Specification
    G04327008Courtesy of MAZDA MOTORS CORP.
