Right Side Sensor

  1. Remove the right front wheel and tire assembly.

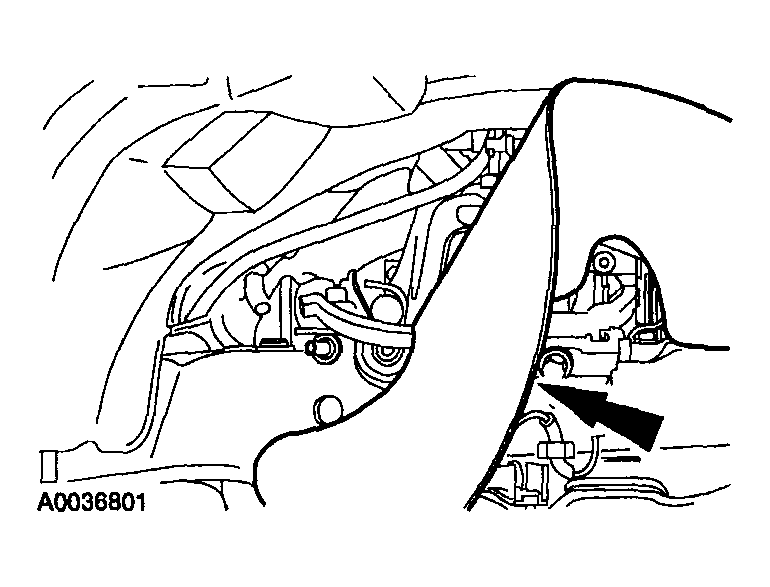

    Fig 1: Identifying Right Side Sensor
    G04308415Courtesy of MAZDA MOTORS CORP.
  2. Position aside the right front fender splash shield.
