Camshaft Position (CMP) Sensor Removal / Installation - 2.3L

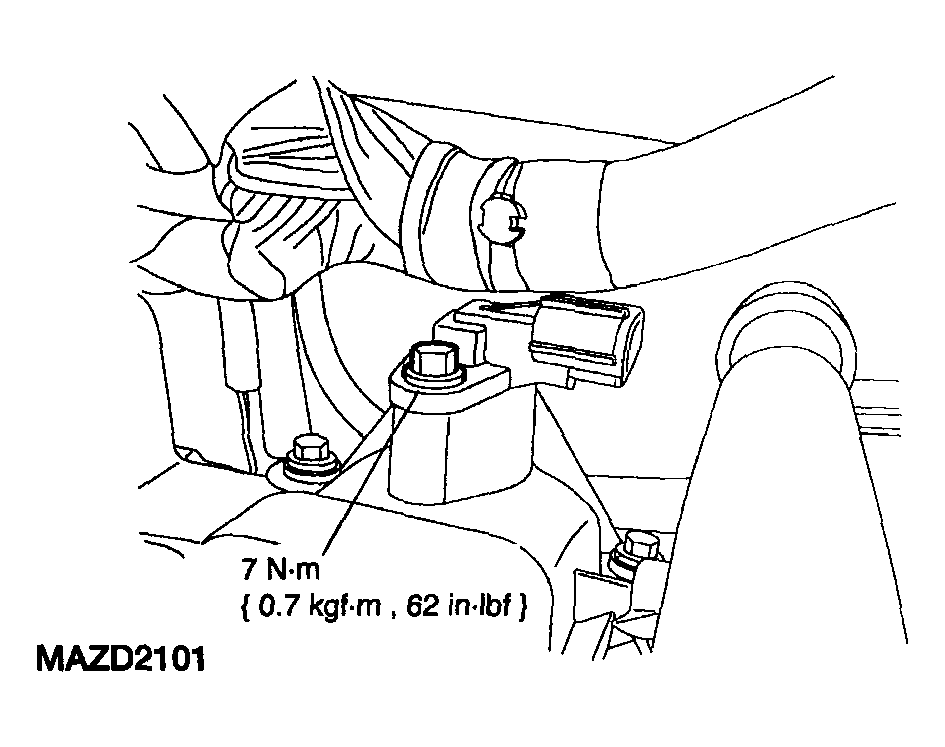

Fig 1: Removing Camshaft Position (CMP) Sensor

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
2. Disconnect the camshaft position (CMP) sensor electrical connector.

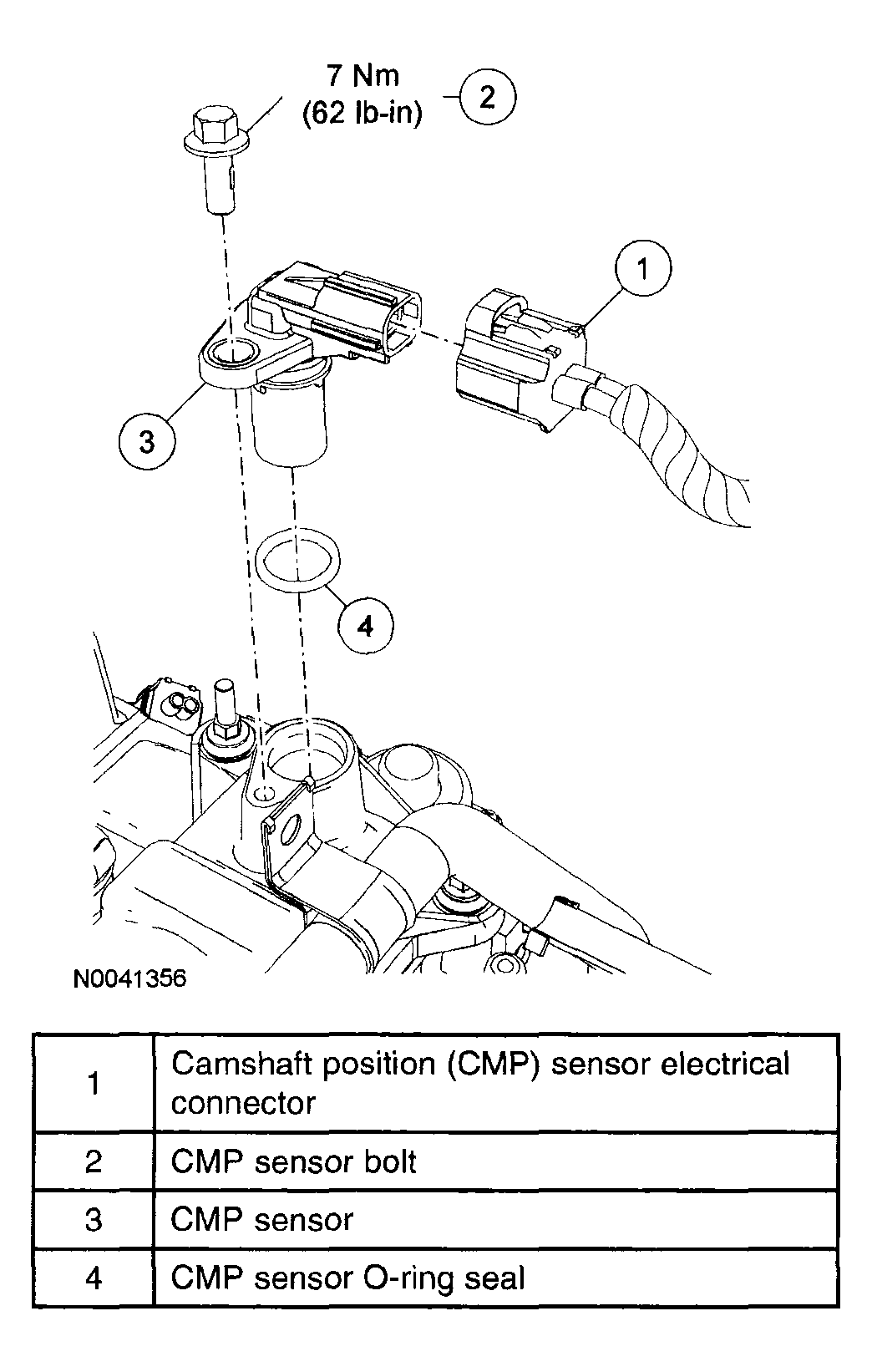

   Fig 2: Removing Bolt And CMP Sensor

   Courtesy of MAZDA MOTORS CORP.
3. Remove the bolt and the CMP sensor.
   NOTE:

   • Lubricate the O-ring with clean engine oil.
4. To install, reverse the removal procedure.
