Camshaft Position (CMP) Sensor Removal / Installation - 4.0L: Notes

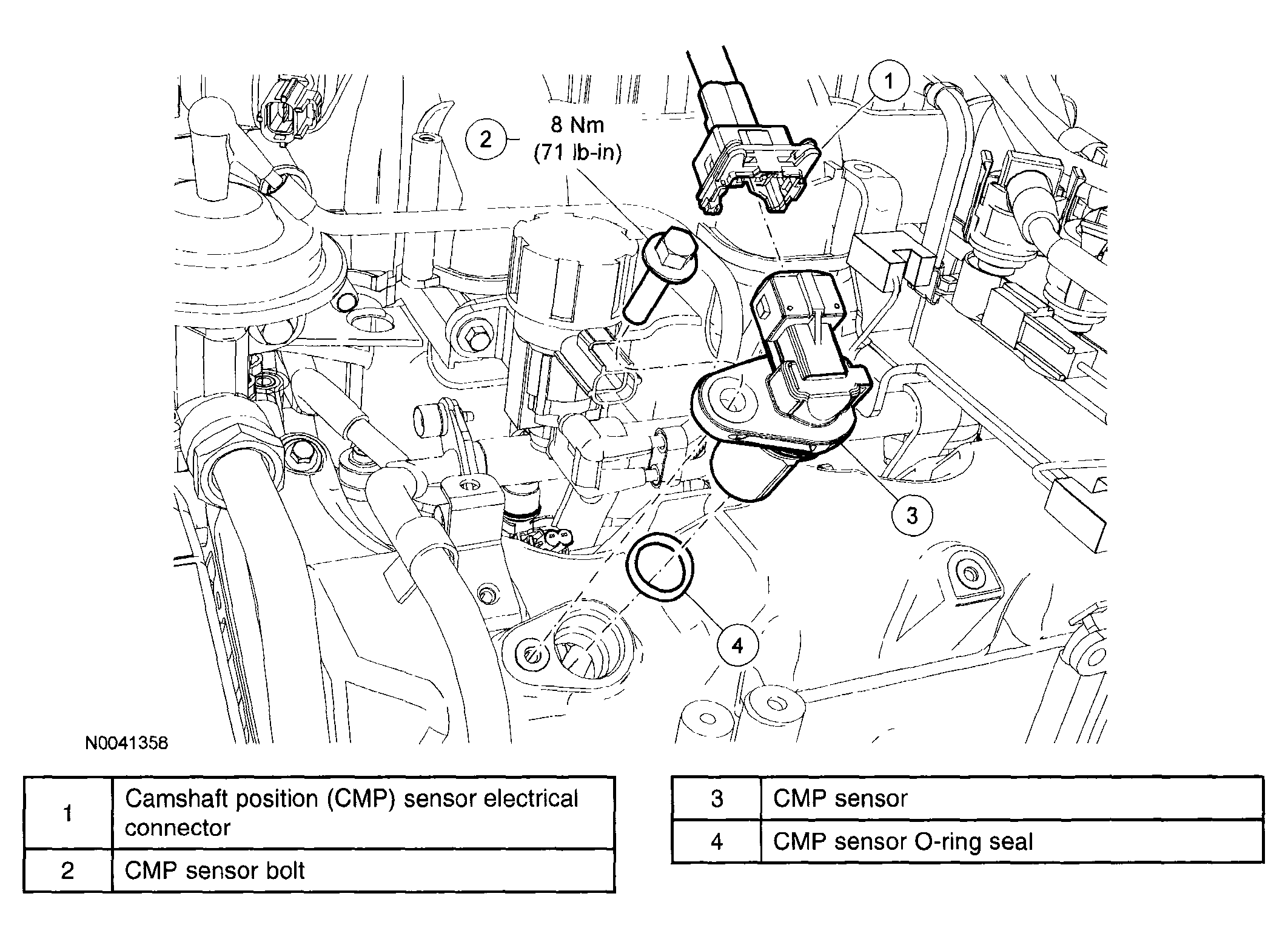

Fig 1: Removing /Installing Camshaft Position Sensor
G04308371Courtesy of MAZDA MOTORS CORP.
