Knock Sensor (KS) Removal / Installation - 3.0L

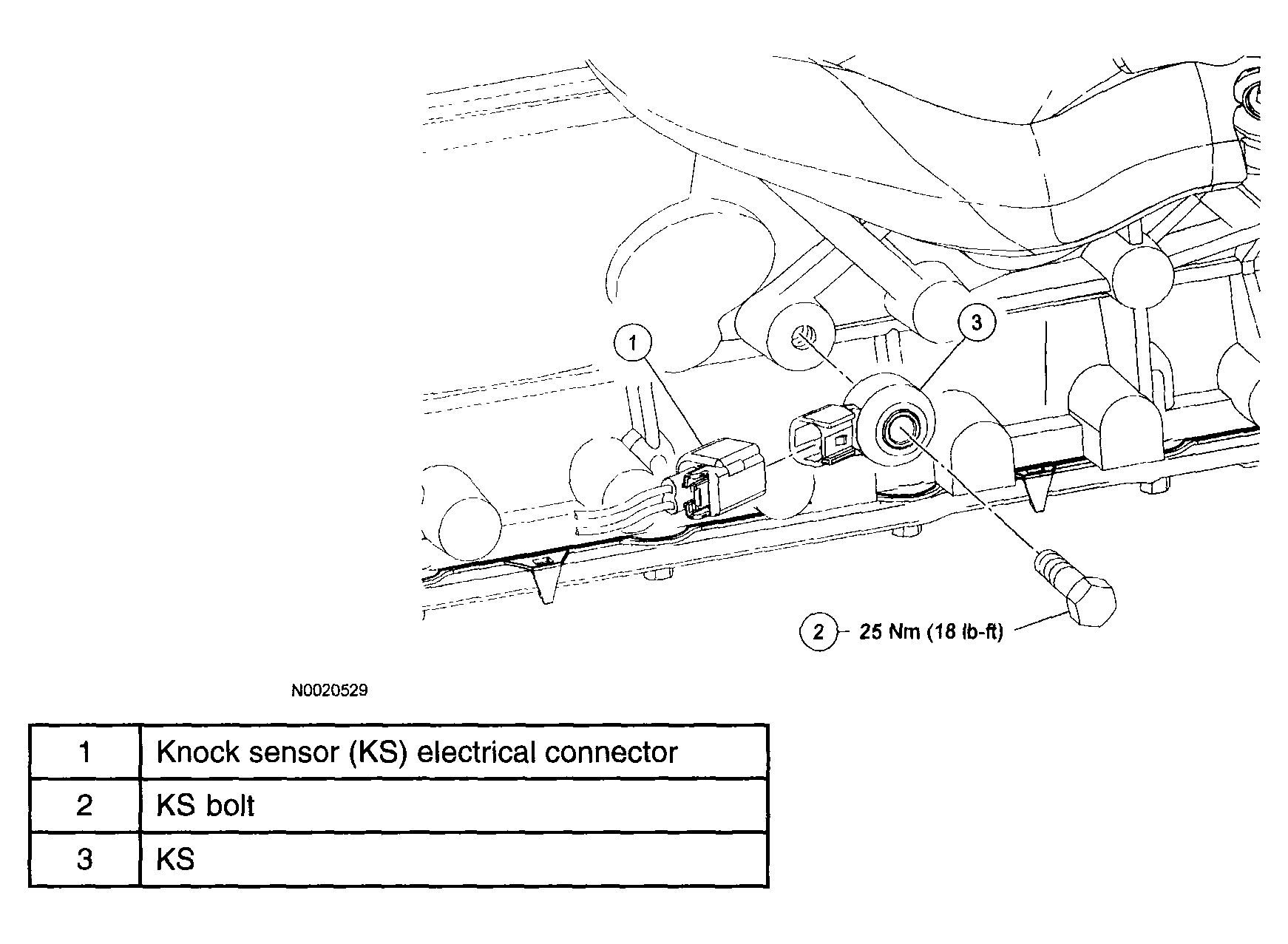

Fig 1: Removing /Installing Knock Sensor

Courtesy of MAZDA MOTORS CORP.

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Disconnect the negative battery cable. See BATTERY DISCONNECT , .

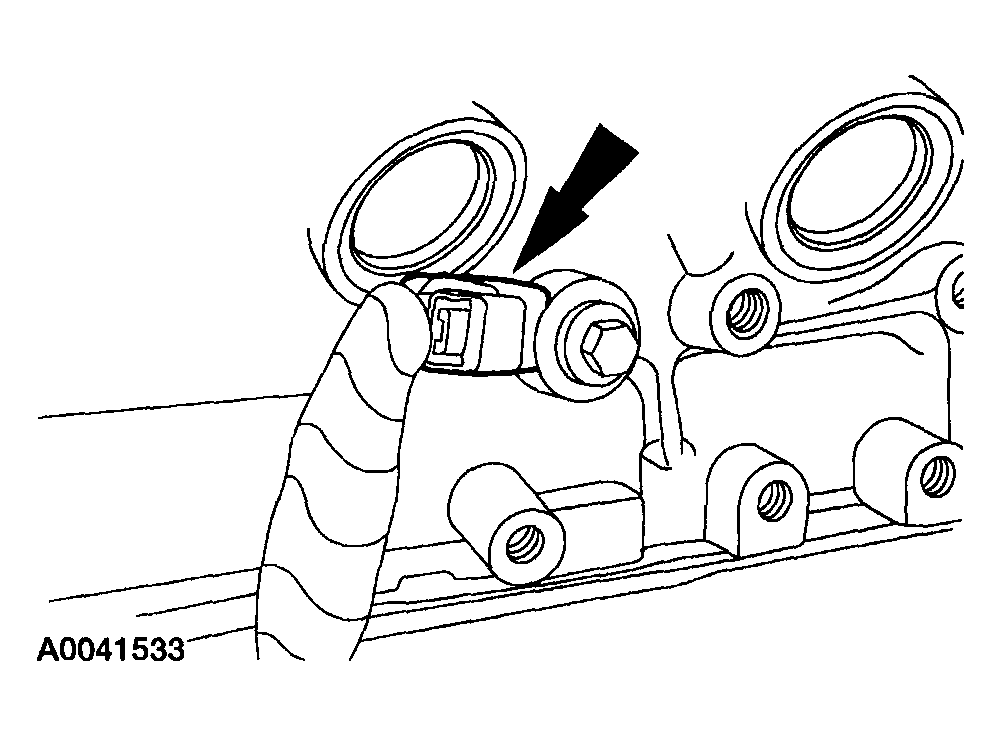

   Fig 2: Disconnecting Knock Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the knock sensor (KS) electrical connector.

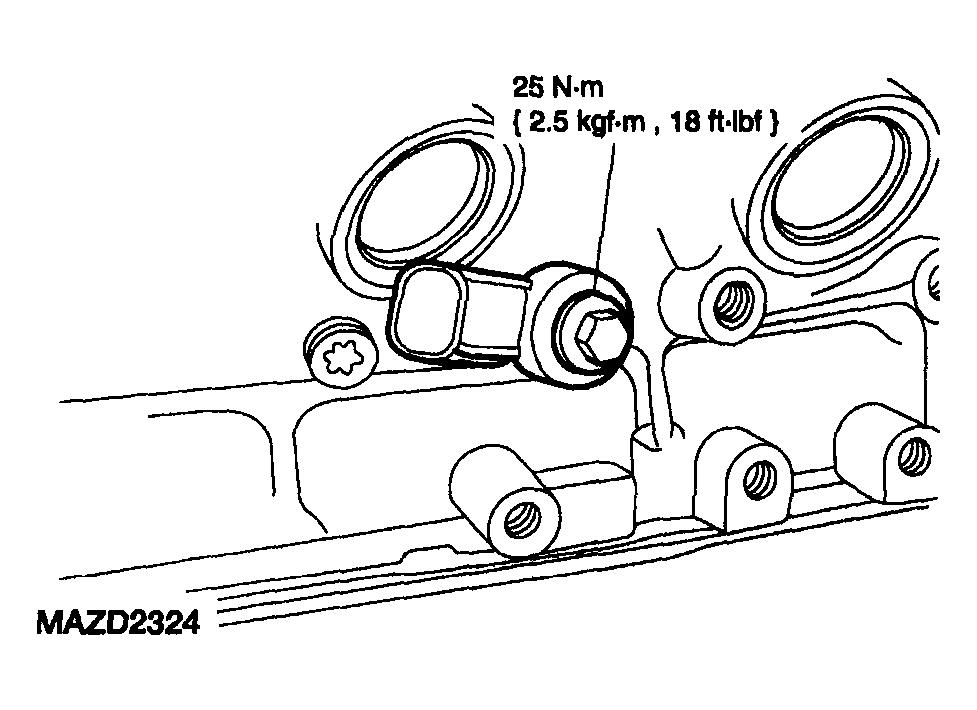

   Fig 3: Removing Bolt And Knock Sensor

   Courtesy of MAZDA MOTORS CORP.
4. Remove the bolt and the KS.
5. To install, reverse the removal procedure.
