Manifold Absolute Pressure (Map) Sensor Removal / Installation - 2.3L

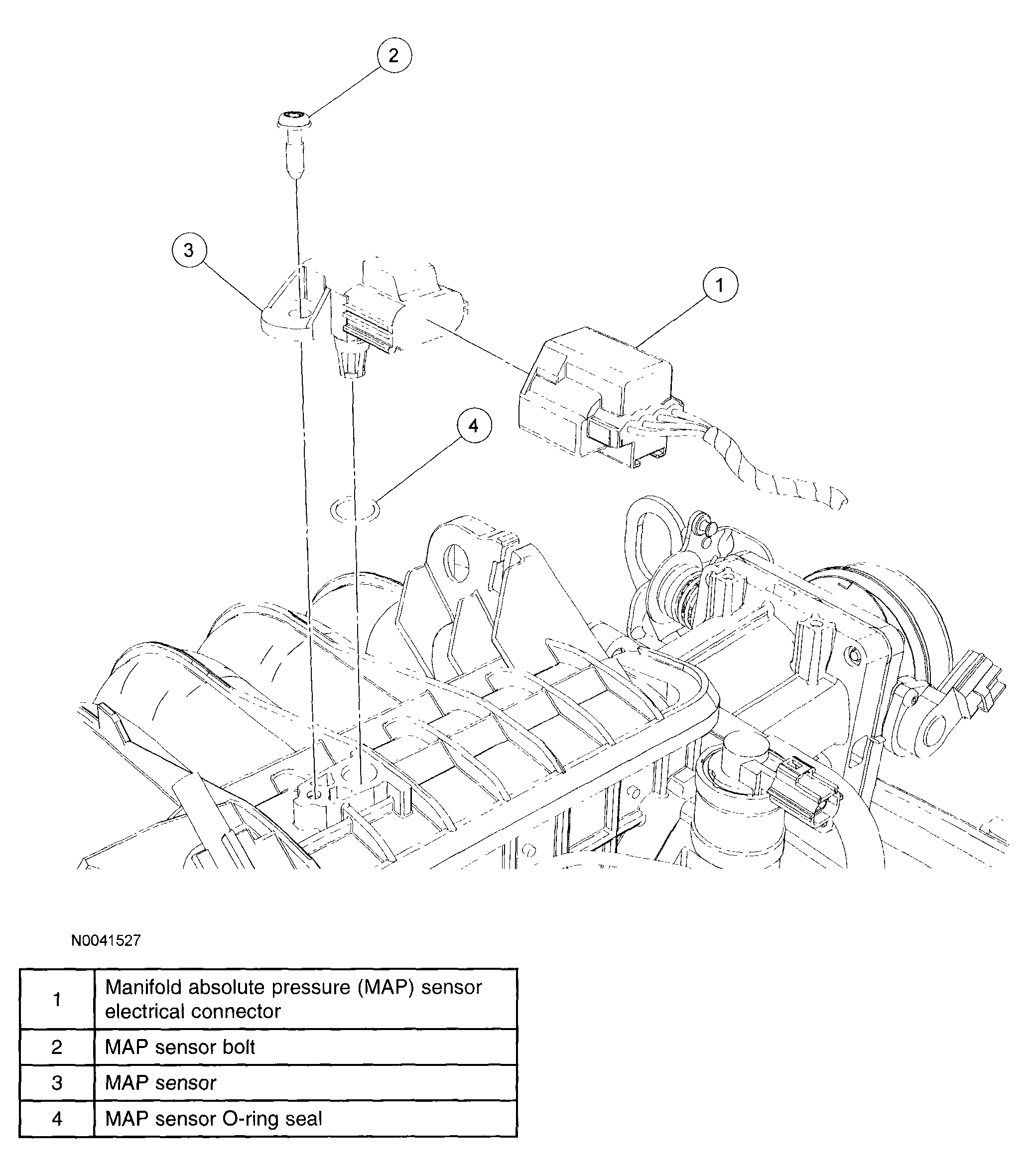

Fig 1: Removing /Installing Manifold Absolute Pressure Sensor

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .

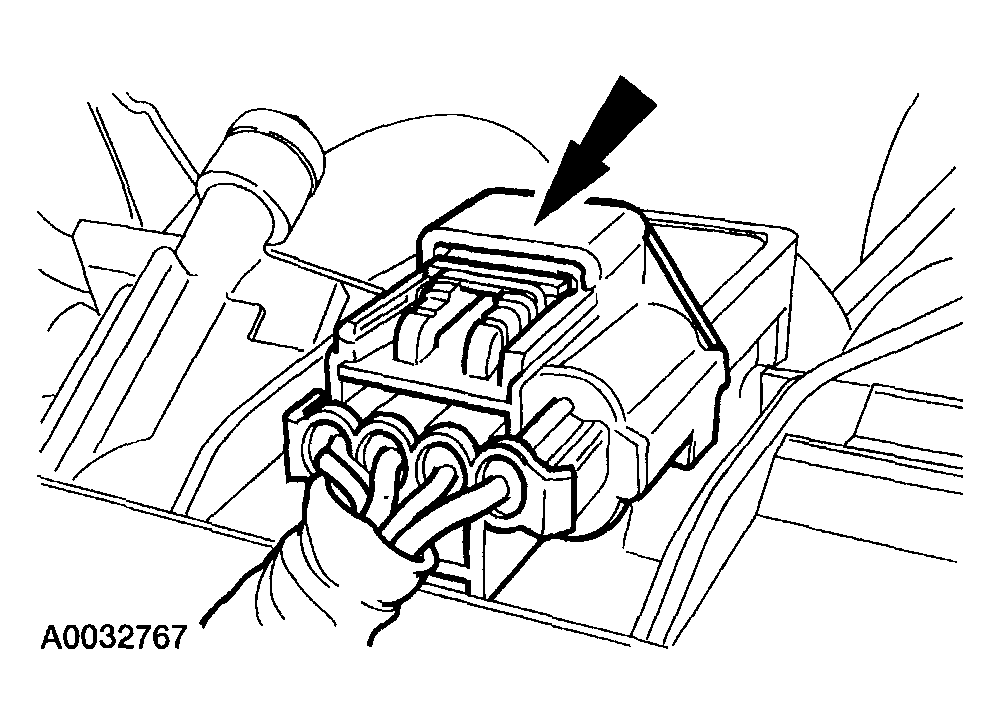

   Fig 2: Identifying Manifold Absolute Pressure Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

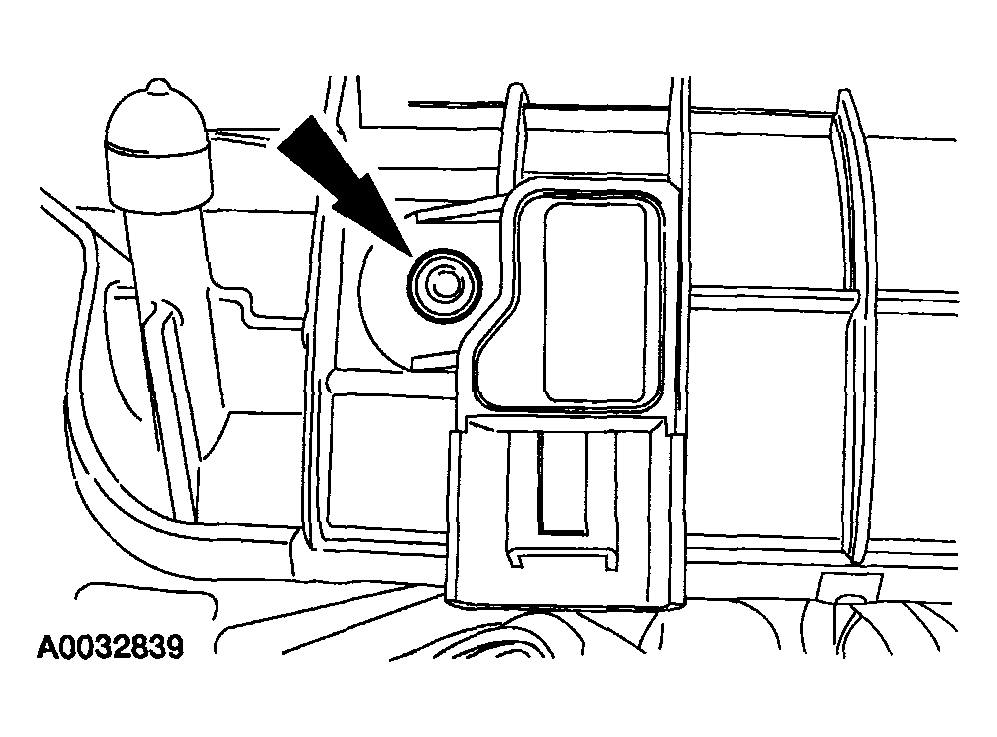

   Fig 3: Removing Bolt And Lift Map Sensor Out Of Intake Manifold

   Courtesy of MAZDA MOTORS CORP.
3. Remove the bolt and lift the MAP sensor out of the intake manifold.
4. To install, reverse the removal procedure.
