Throttle Position (TP) Sensor Removal / Installation - 2.3L

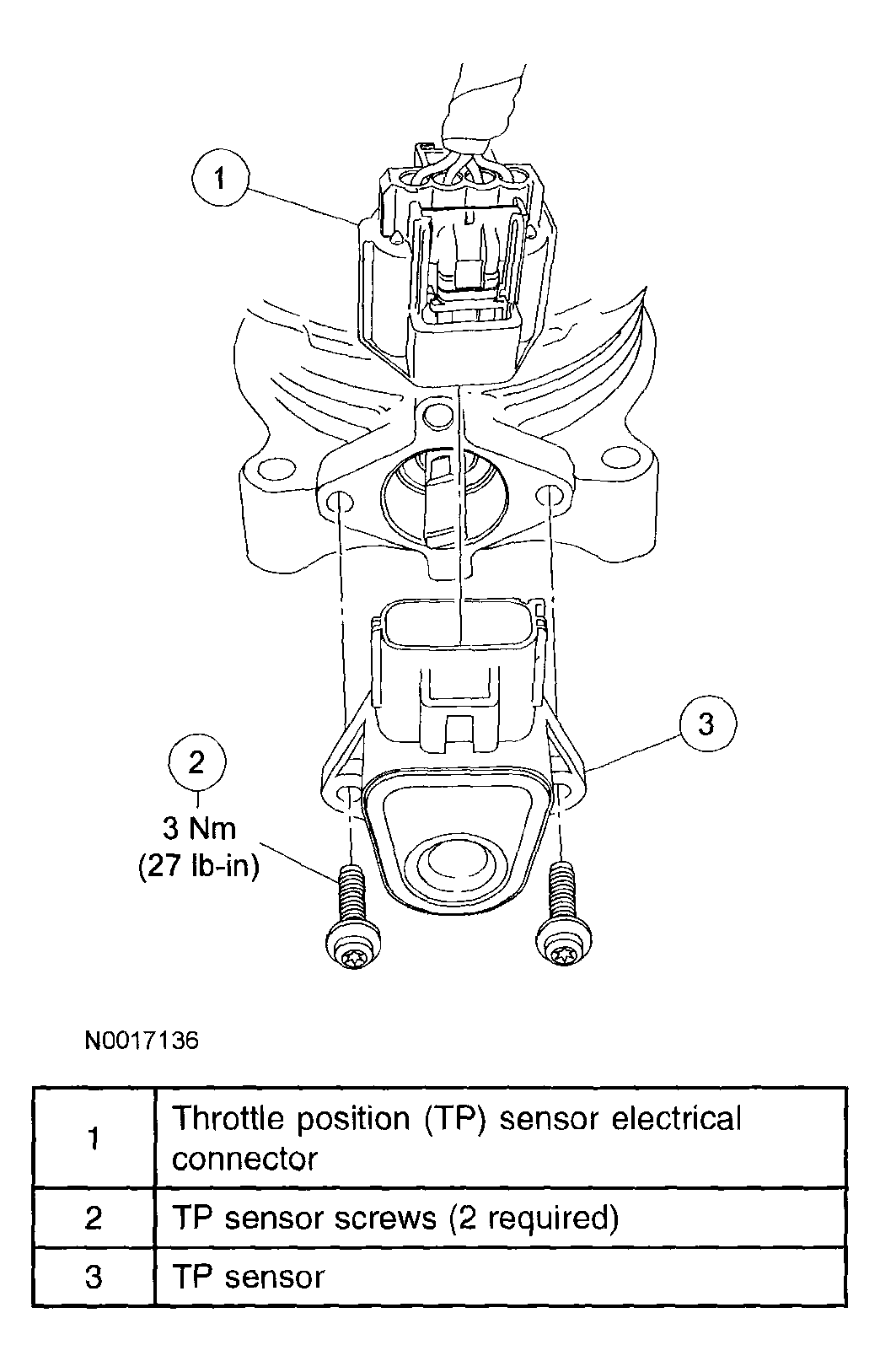

Fig 1: Removing /Installing Throttle Position (TP) Sensor

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .

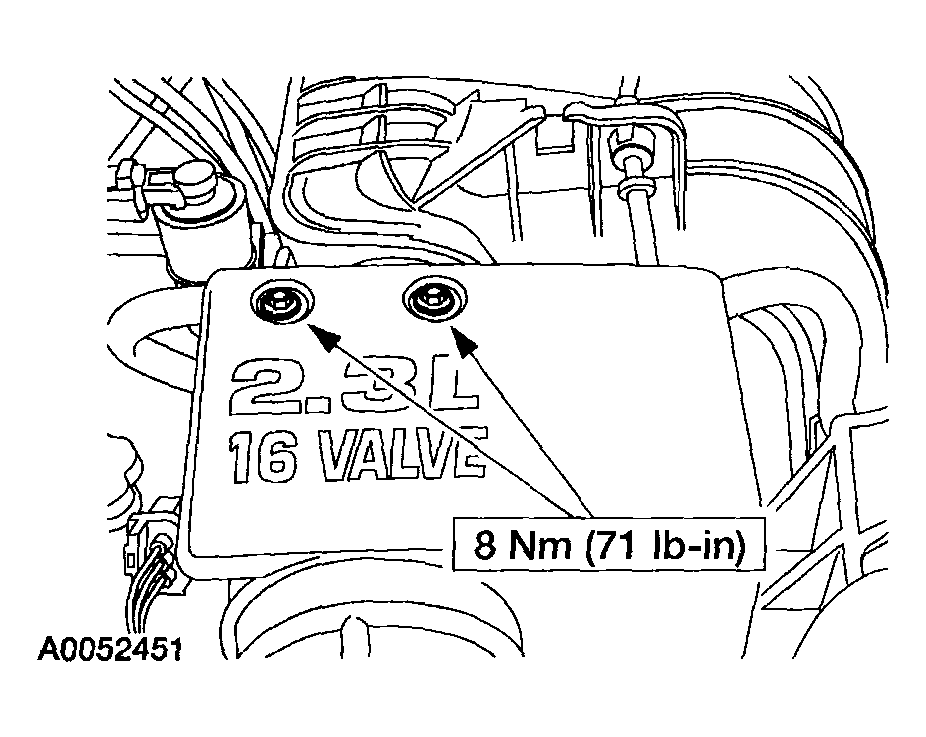

   Fig 2: Removing Accelerator Control Splash Shield

   Courtesy of MAZDA MOTORS CORP.
2. Remove the accelerator control splash shield.
3. Disconnect the throttle position (TP) sensor electrical connector.

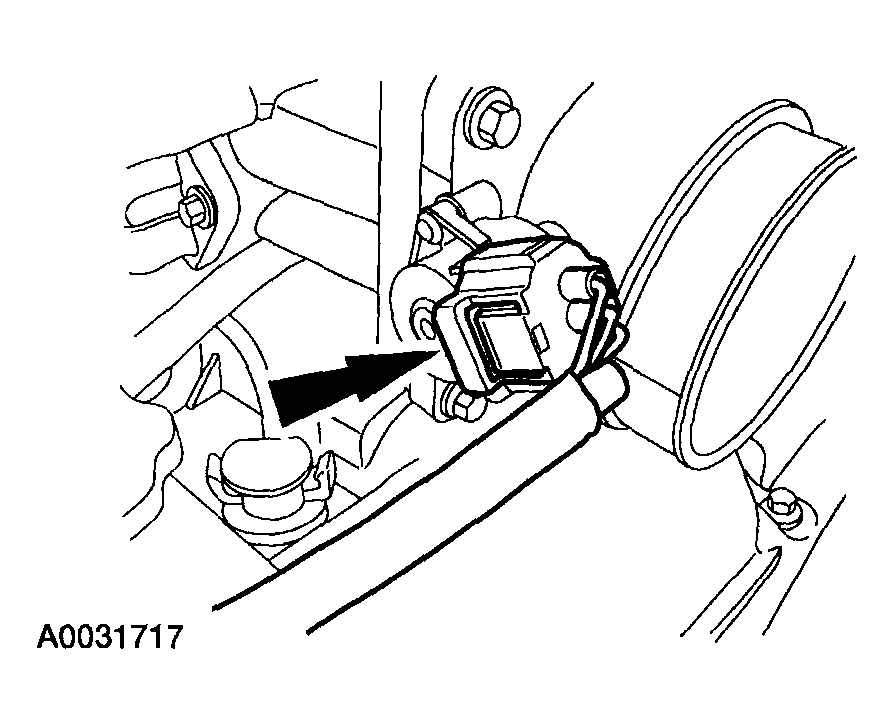

   Fig 3: Disconnecting Throttle Position Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
4. Disconnect the throttle position (TP) sensor electrical connector.

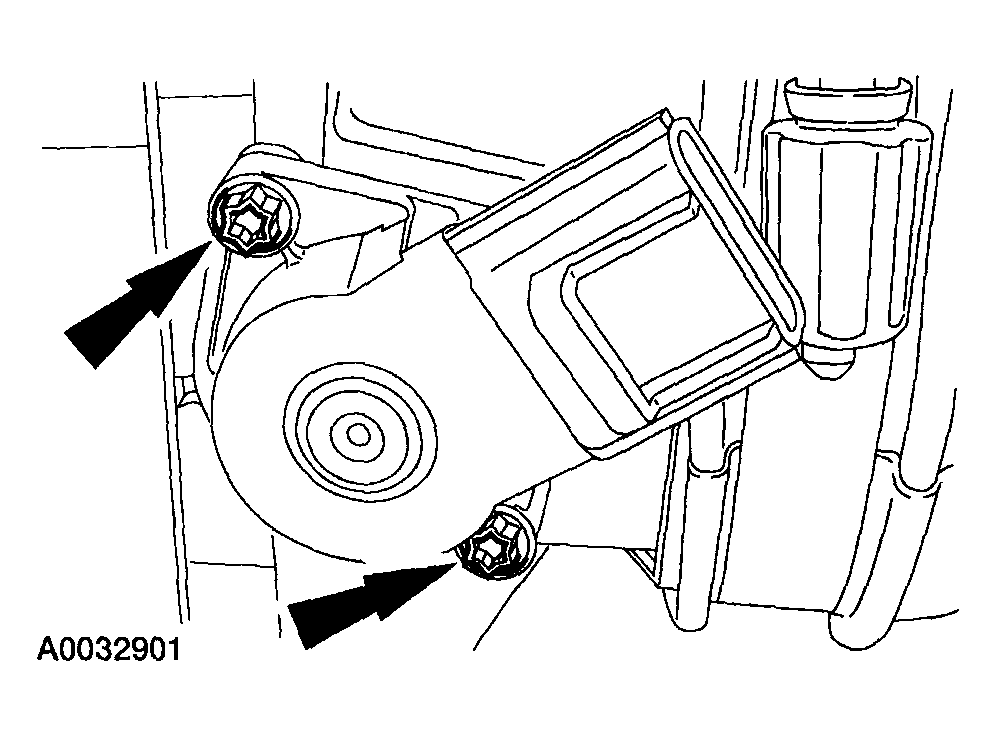

   Fig 4: Removing Bolts And TP Sensor

   Courtesy of MAZDA MOTORS CORP.
5. Remove the bolts and the TP sensor.
6. To install, reverse the removal procedure.
