Throttle Position (TP) Sensor Removal / Installation - 3.0L: Notes

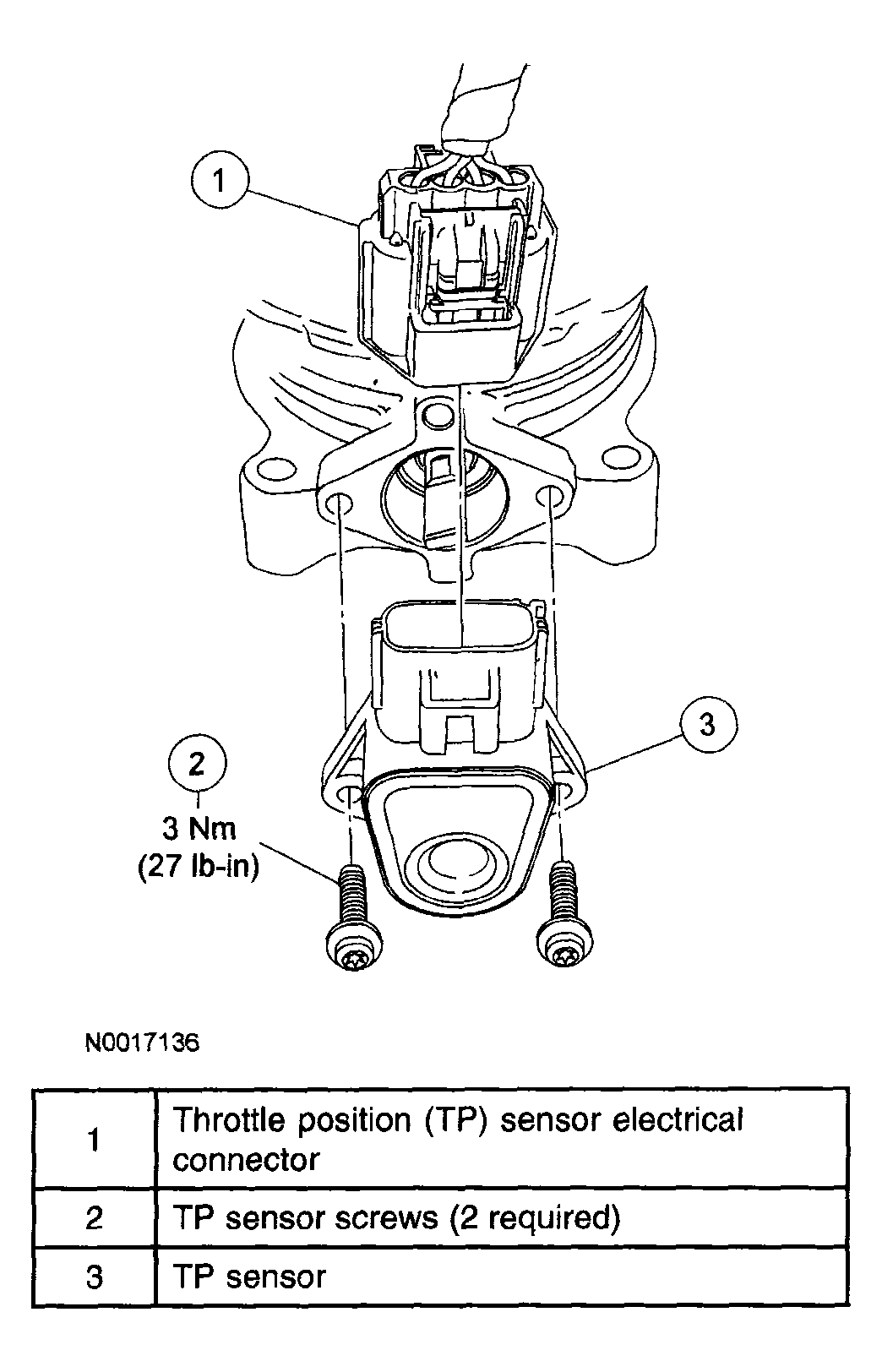

Fig 1: Removing /Installing Throttle Position Sensor
G04308396Courtesy of MAZDA MOTORS CORP.
