Throttle Position (TP) Sensor Removal / Installation - 4.0L

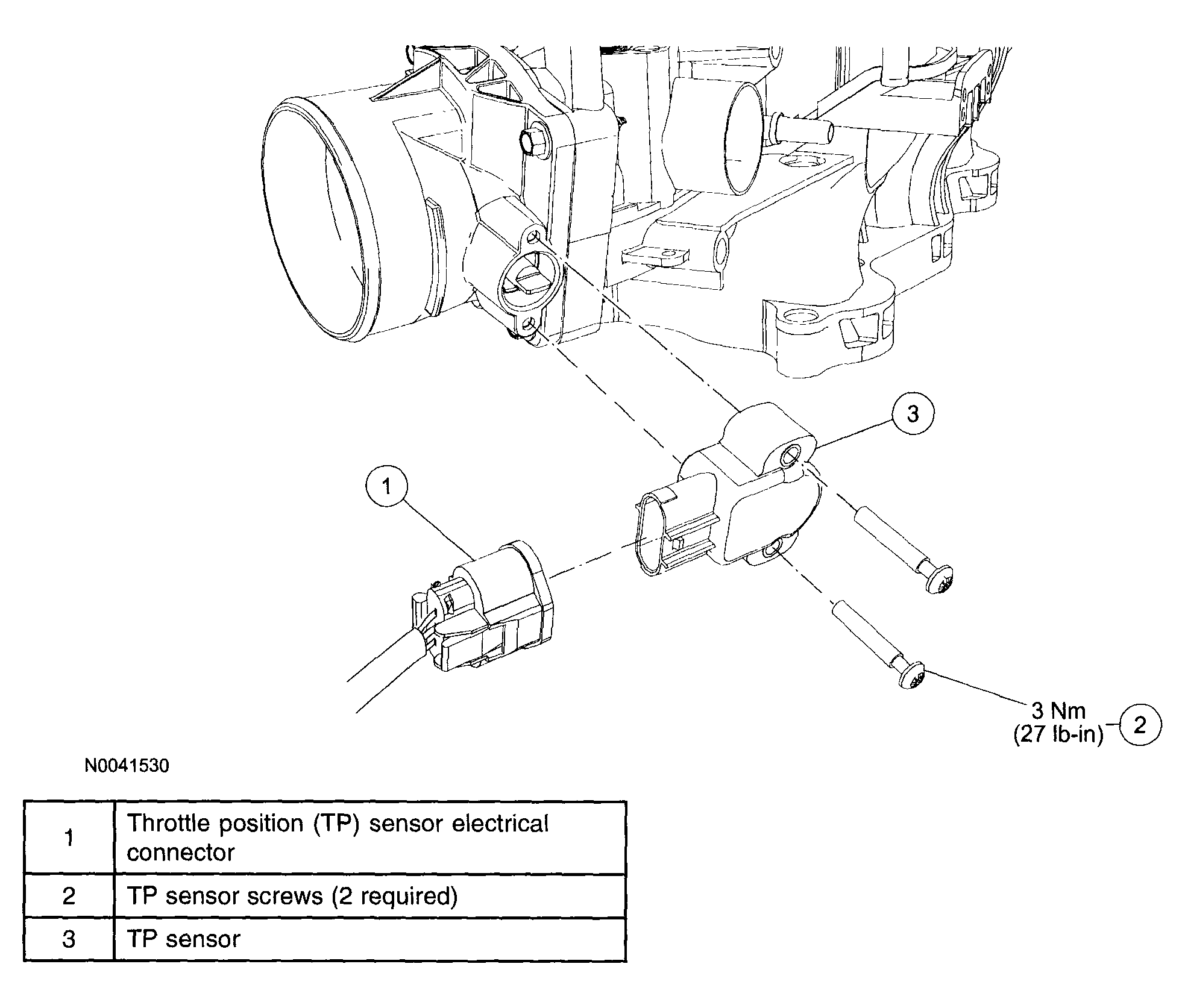

Fig 1: Removing Throttle Position Sensor

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Accelerator Control Splash Shield

Courtesy of MAZDA MOTORS CORP.

1. Remove the accelerator control splash shield.

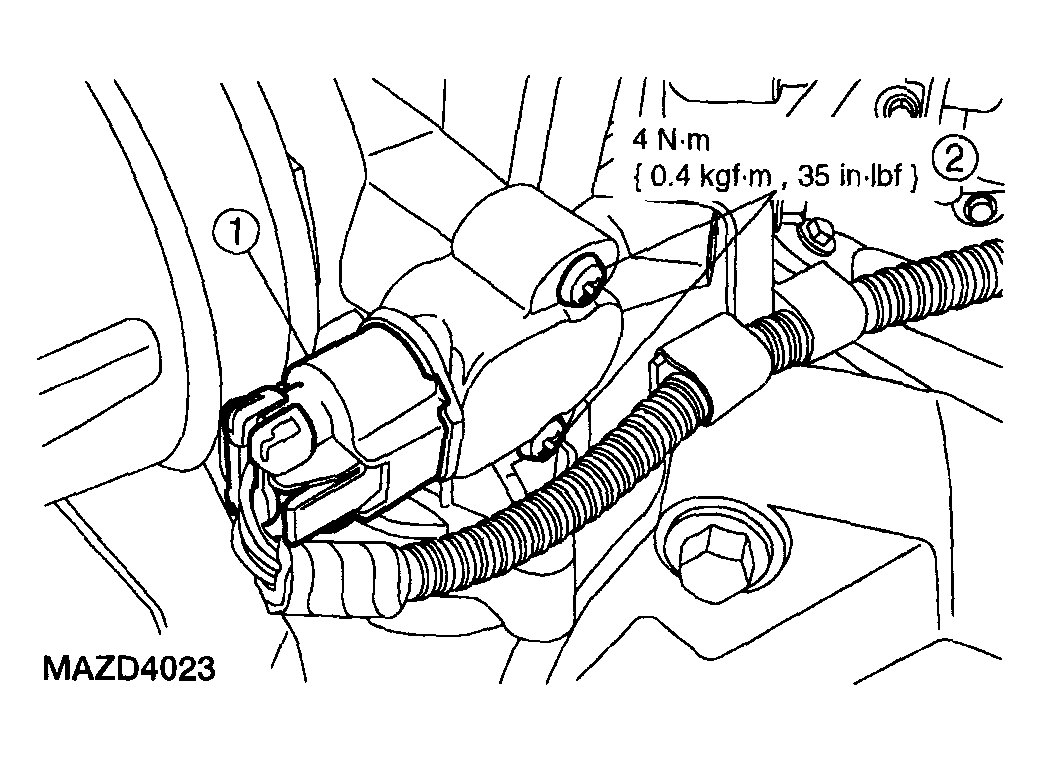

   Fig 3: Removing Bolts And TP Sensor

   Courtesy of MAZDA MOTORS CORP.
2. Remove the throttle position (TP) sensor.
   1. Disconnect the electrical connector.
   2. Remove the bolts and the TP sensor.
3. To install, reverse the removal procedure.
