Spring Lock Couplings: Disconnect

Relieve the fuel pressure. See FUEL PRESSURE RELIEF .
Remove the fuel tube clip.

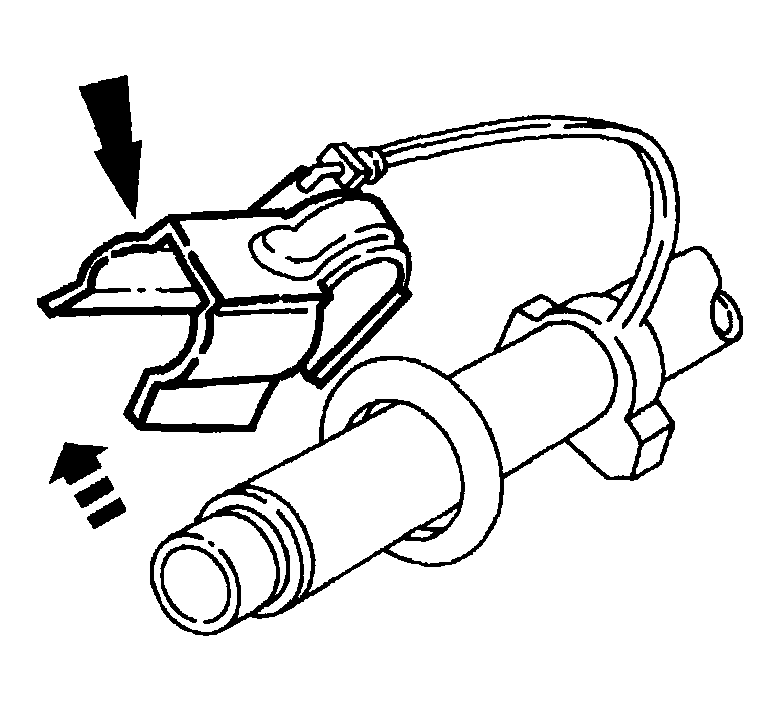

Fig 1: Removing Fuel Tube Clip
Courtesy of MAZDA MOTORS CORP.
Install the appropriate disconnect tool SST .

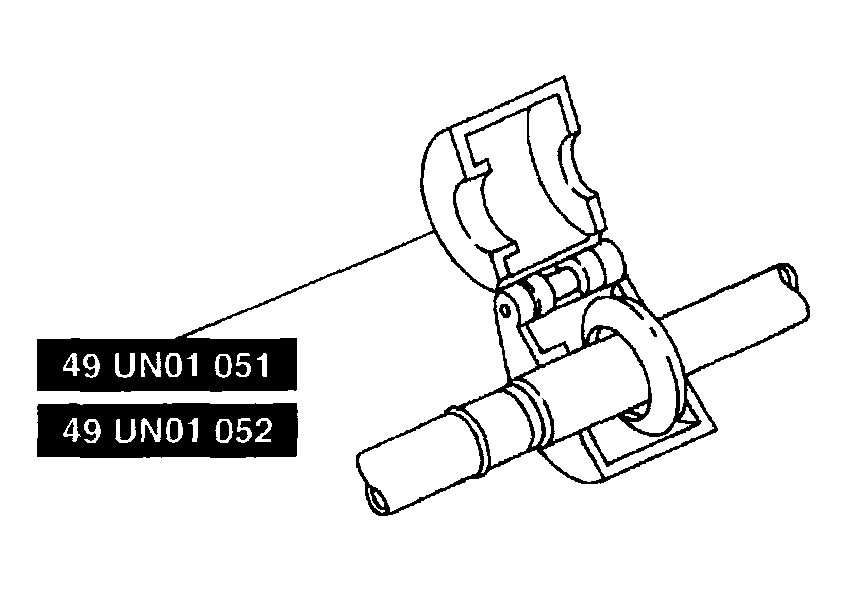

Fig 2: Installing Disconnect Tool SST
Courtesy of MAZDA MOTORS CORP.
Close and push disconnect tool SST into the open side of the cage.

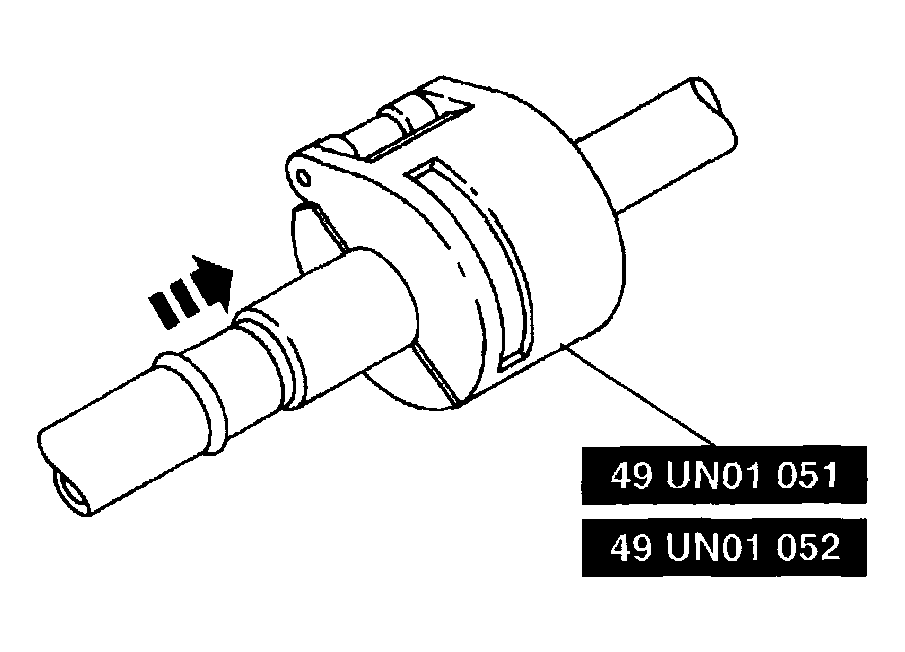

Fig 3: Pushing Disconnect Tool SST Into Open Side Of Cage
Courtesy of MAZDA MOTORS CORP.
Separate the fitting.

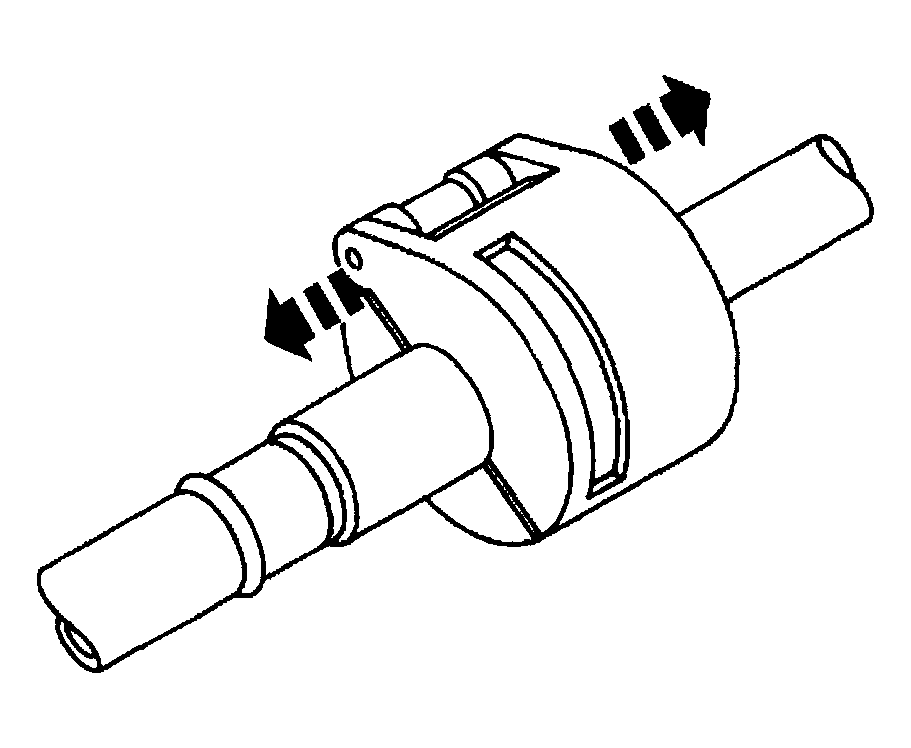

Fig 4: Separating Fitting
Courtesy of MAZDA MOTORS CORP.
Remove disconnect tool SST.

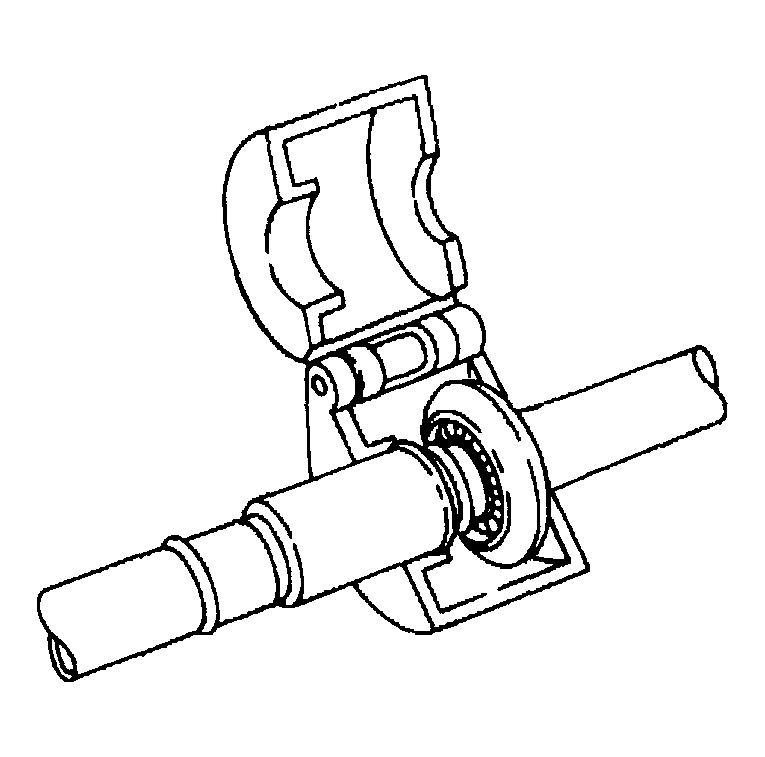

Fig 5: Removing Disconnect Tool SST

Courtesy of MAZDA MOTORS CORP.
