CAMSHAFT POSITION (CMP) SENSOR REMOVAL / INSTALLATION - 3.0l

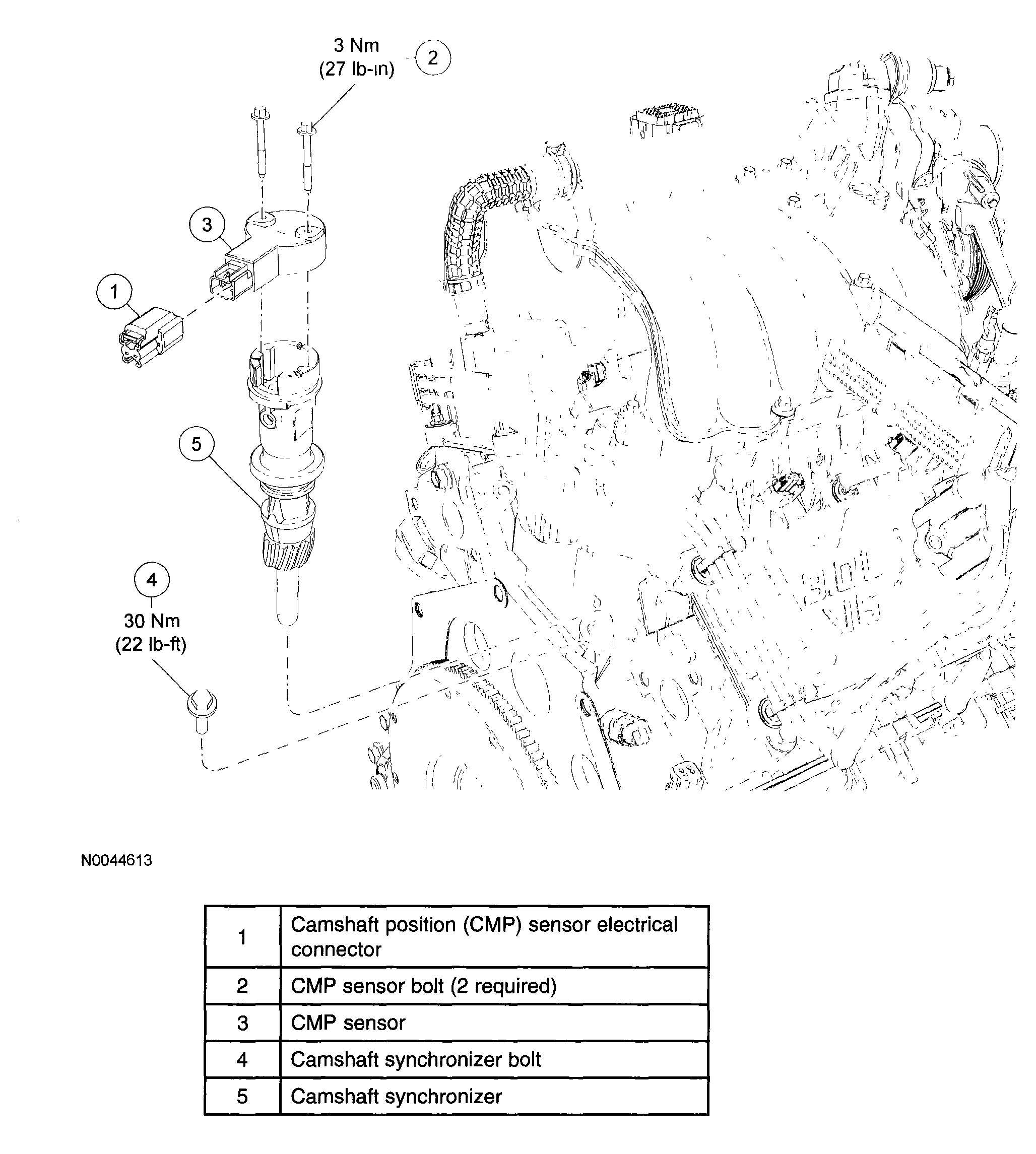

Fig 1: Removing /Installing Camshaft Position (CMP) Sensor

Courtesy of MAZDA MOTORS CORP.

1. Disconnect negative battery cable. See BATTERY DISCONNECT .
2. Disconnect the connector the camshaft position (CMP) sensor electrical connector.
   Fig 2: Disconnecting Connector Camshaft Position (CMP) Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Remove the screws and the CMP sensor.
   Fig 3: Installing CMP Sensor And Screws

   Courtesy of MAZDA MOTORS CORP.
4. Install in reverse order of removal.

   Tightening torque

   2.5-3.5 N.m { 26-36 kgf.cm, 23-30 in.lbf}
