Heated Oxygen Sensor (Ho2S) Removal / Installation: Notes

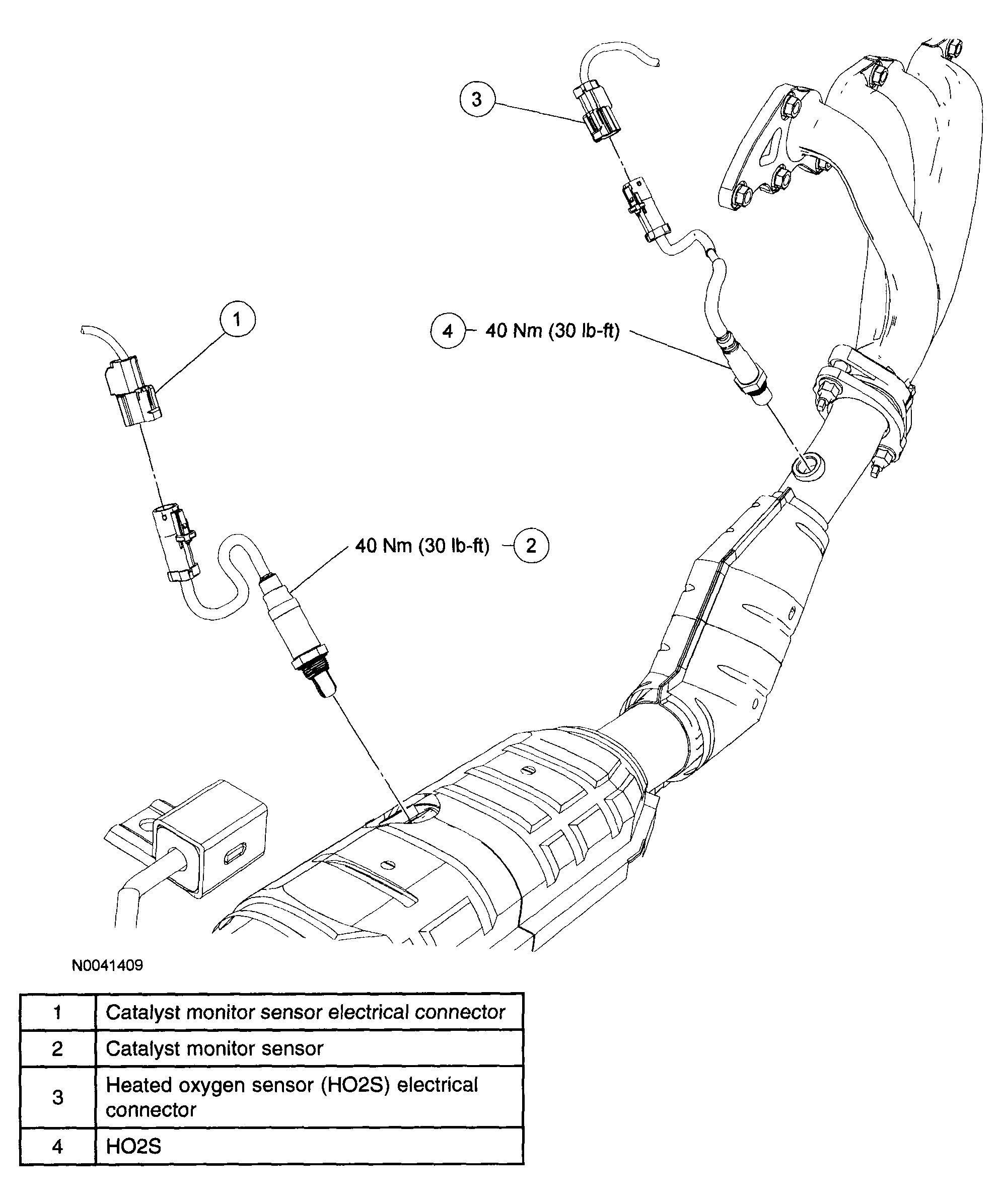

Fig 1: Removing /Installing Heated Oxygen Sensor (HO2S)
G04308414Courtesy of MAZDA MOTORS CORP.
