Idle Air Control (IAC) Valve Removal / Installation - 4.0L

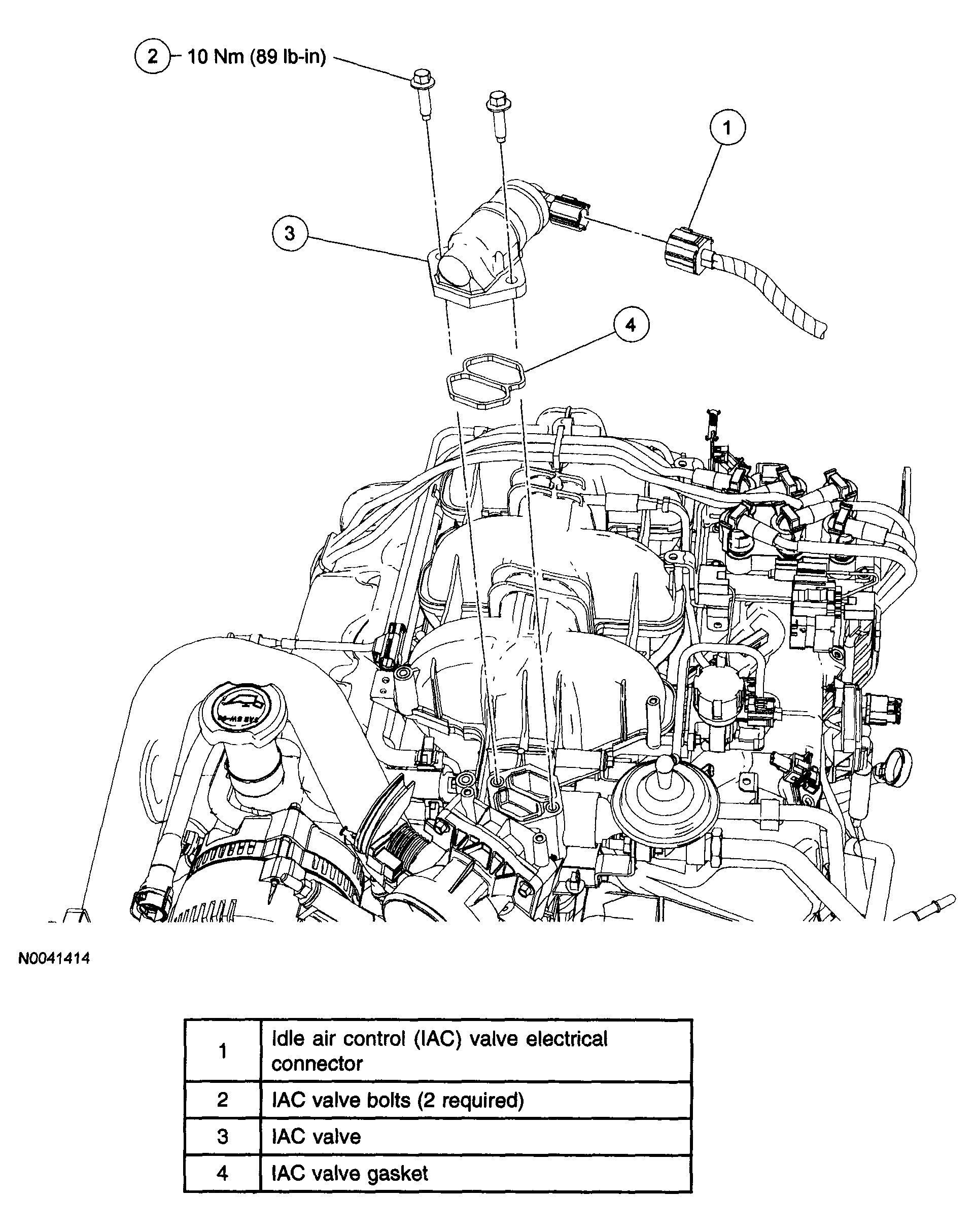

Fig 1: Removing /Installing Idle Air Control (IAC) Valve

Courtesy of MAZDA MOTORS CORP.

1. Remove the accelerator control splash shield.

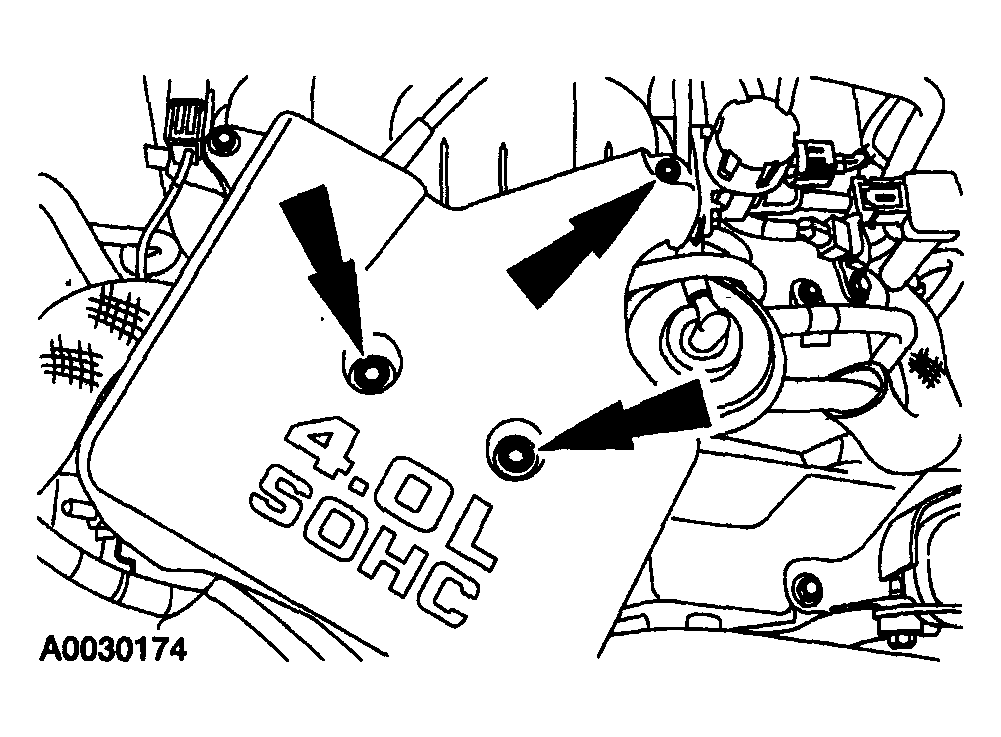

   Fig 2: Removing Accelerator Control Splash Shield

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the electrical connector. Remove the bolts and the idle air control (IAC) valve.

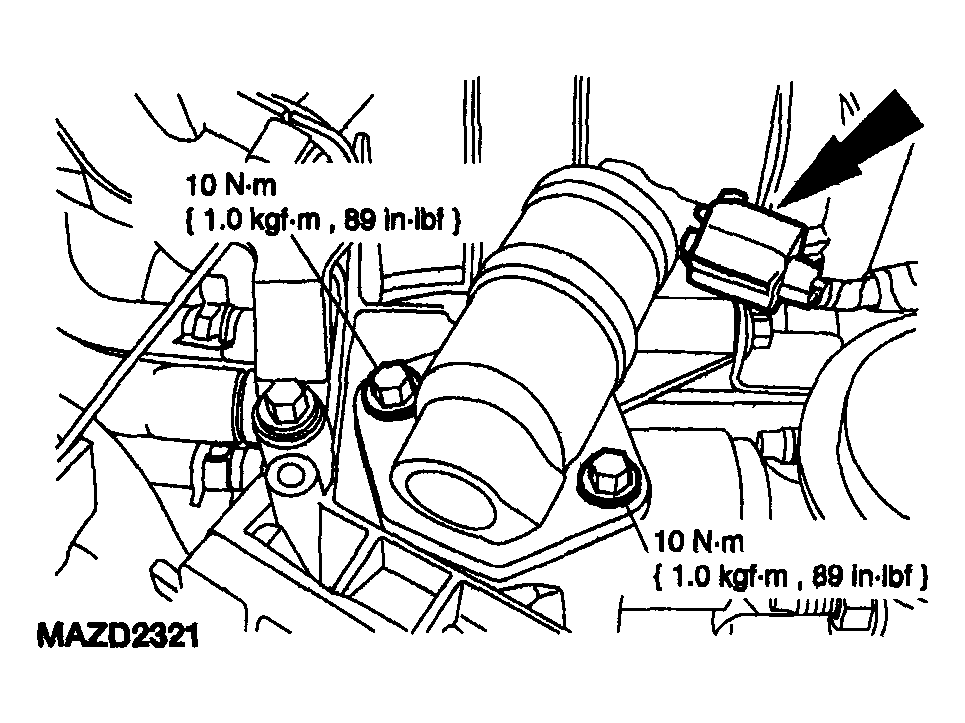

   Fig 3: Disconnecting Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Install a new IAC gasket.
3. To install, reverse the removal procedure.
