Fuel Tank Support Straps Removal / Installation

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
Remove the four bolts (two each side) and remove the skid plate, if equipped.

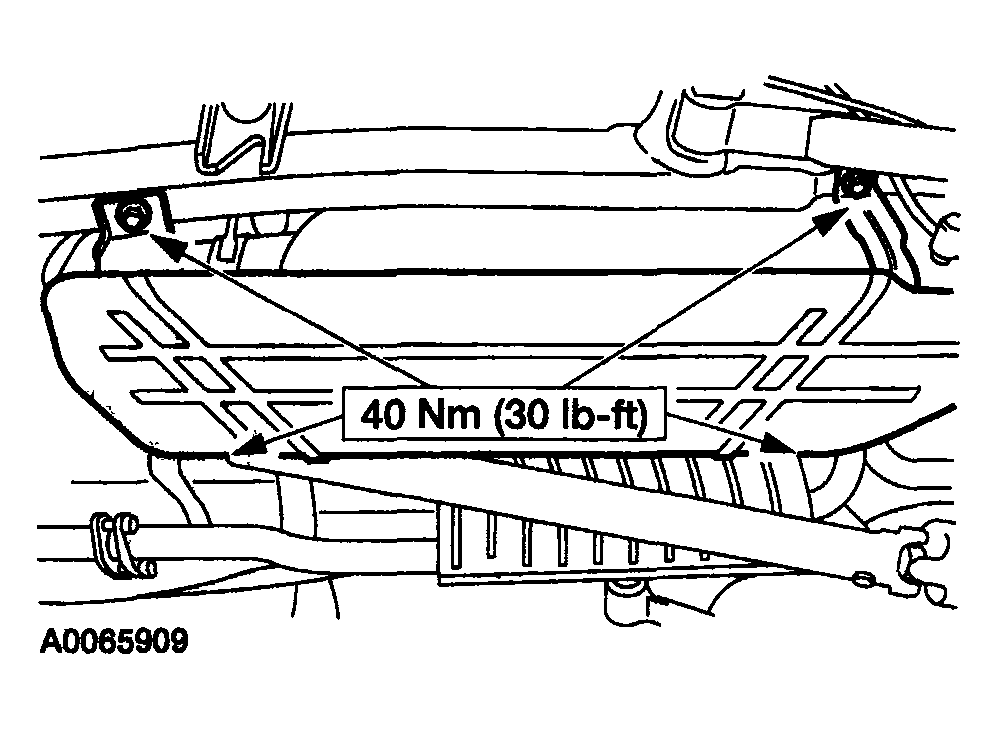

Fig 1: Removing/Installing Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Support the fuel tank.
Remove the fuel tank support straps.
- Remove the bolts.
- Remove the support straps.

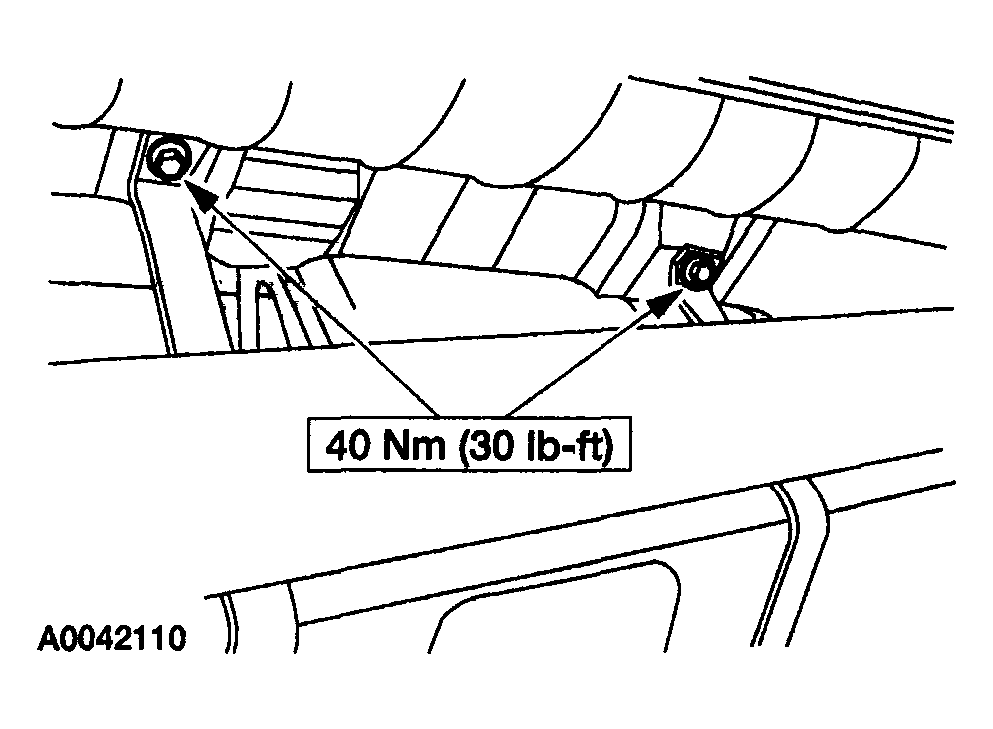

Fig 2: Removing/Installing Support Straps With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
