Inertia Fuel Shutoff Switch Removal / Installation: Notes

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Access the fuel pump shutoff switch on the right side interior trim panel and disconnect the electrical connector.

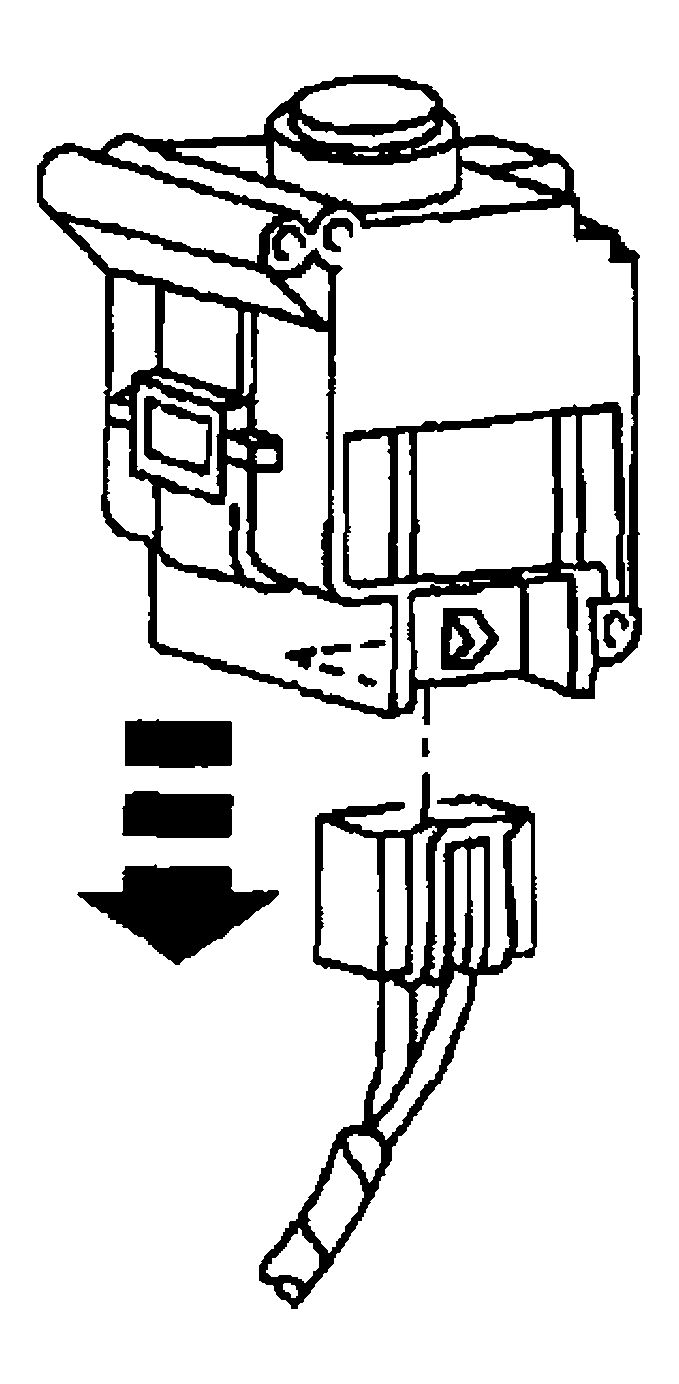

Fig 1: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and remove the fuel pump switch.

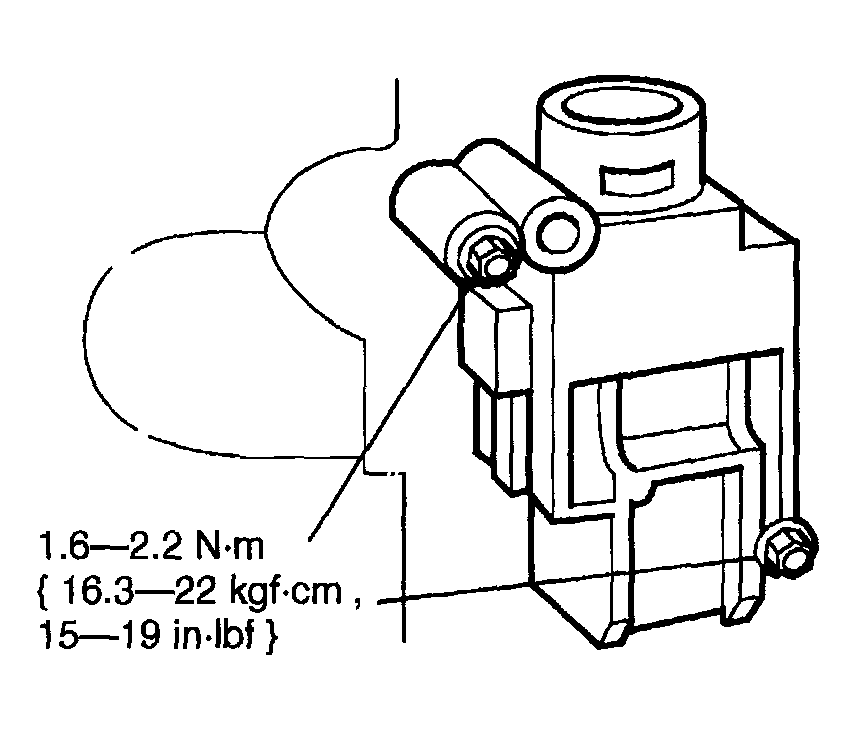

Fig 2: Removing/Installing Fuel Pump Switch With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
