Clutch Pedal Position (CPP) Switch Removal / Installation

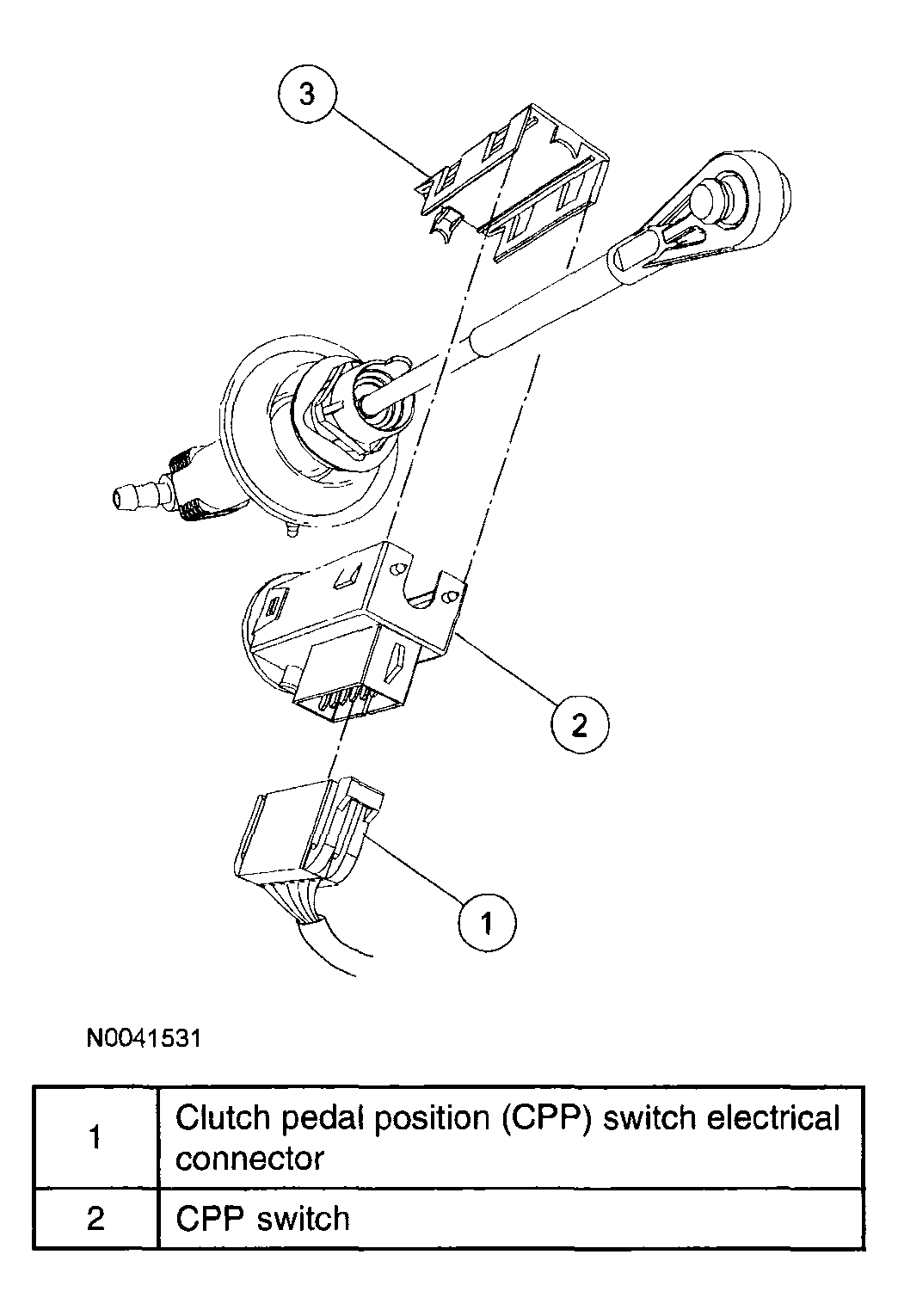

Fig 1: Removing /Installing Clutch Pedal Position Switch

Courtesy of MAZDA MOTORS CORP.

1. Disconnect negative battery cable. See BATTERY DISCONNECT .
2. Disconnect clutch pedal position (CPP) switch electrical connector.

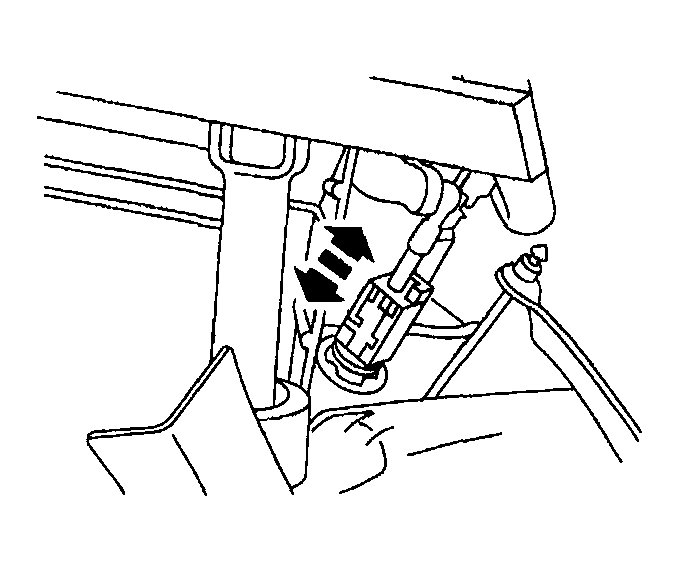

   Fig 2: Disconnecting Clutch Pedal Position Switch Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Spread the CPP switch apart and remove from the pedal rod.

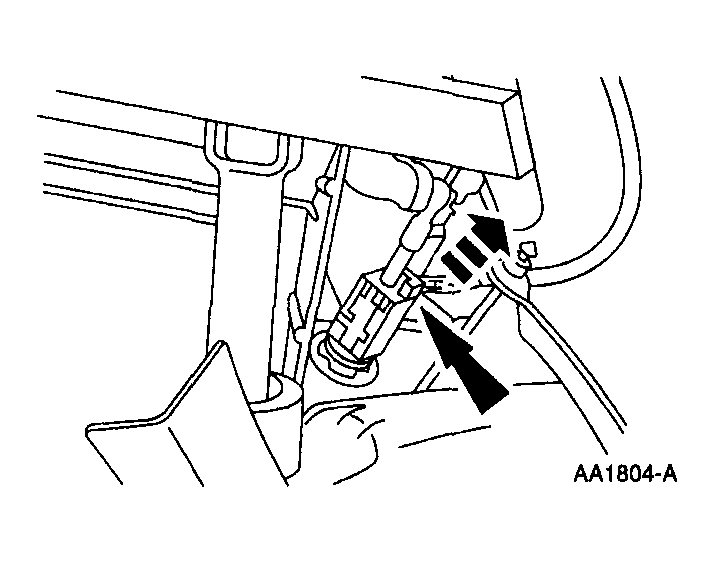

   Fig 3: Connecting Clutch Pedal Position Switch Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
4. To install, reverse the removal procedure.
