Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L: Installation

NOTE:

• A new CKP sensor must be installed when ever the old sensor is removed.

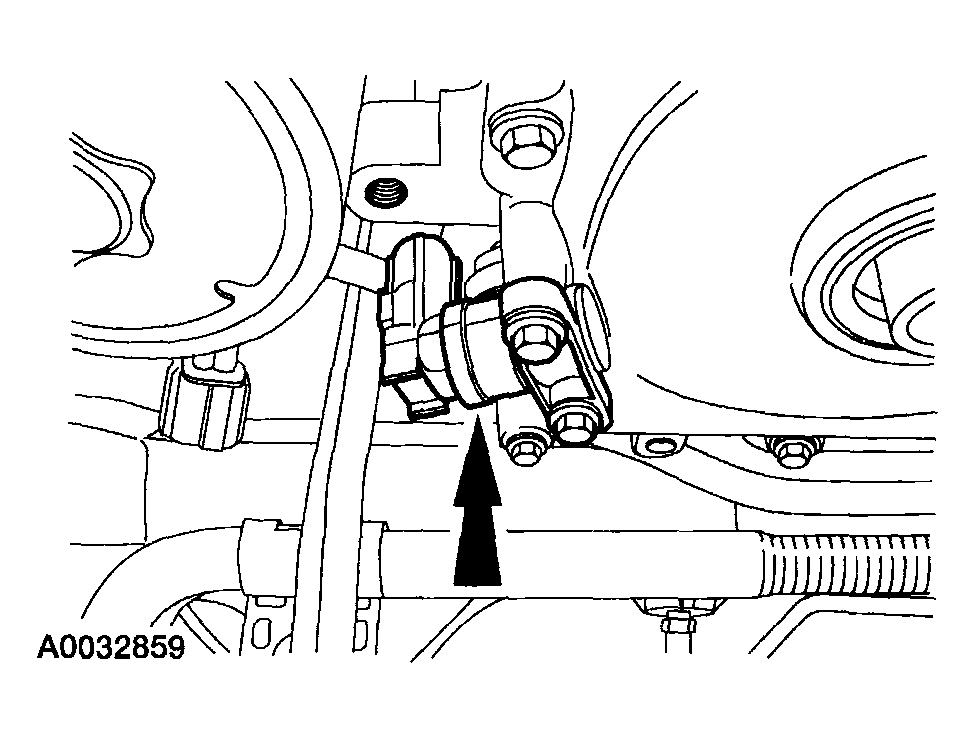

Fig 1: Locating CKP Sensor

Courtesy of MAZDA MOTORS CORP.

1. Install a new CKP, but do not tighten the bolts at this time.

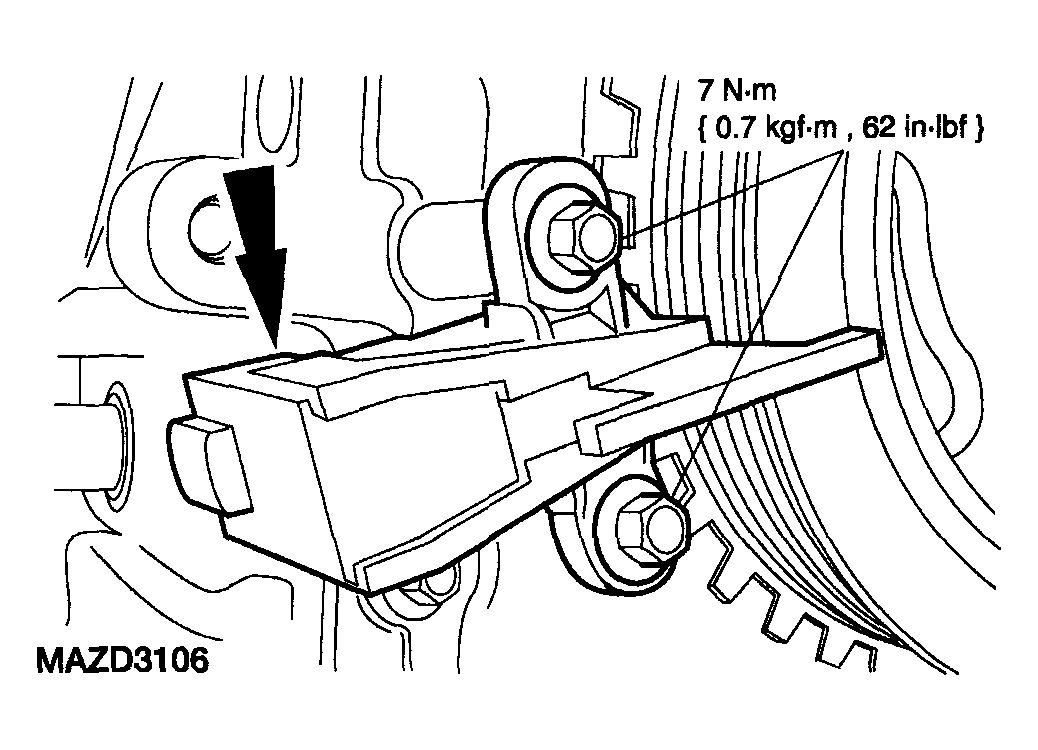

   Fig 2: Alleging Jig And Tightening Bolts

   Courtesy of MAZDA MOTORS CORP.
2. Adjust the CKP with the Crankshaft Position Sensor Alignment Jig and tighten the bolts.

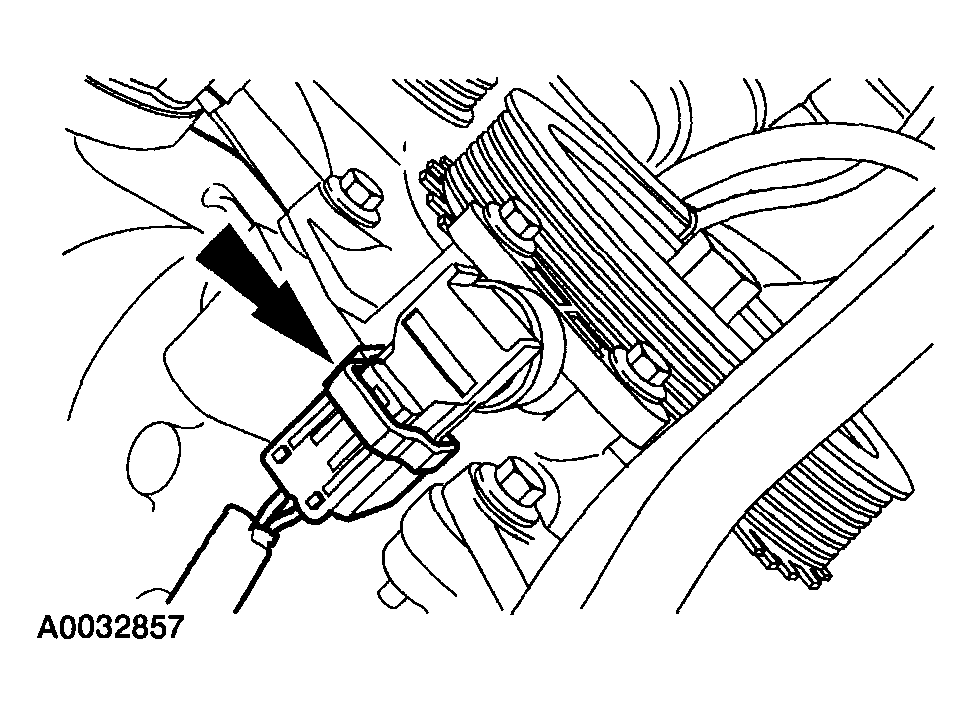

   Fig 3: Connecting CKP Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Connect the CKP electrical connector.

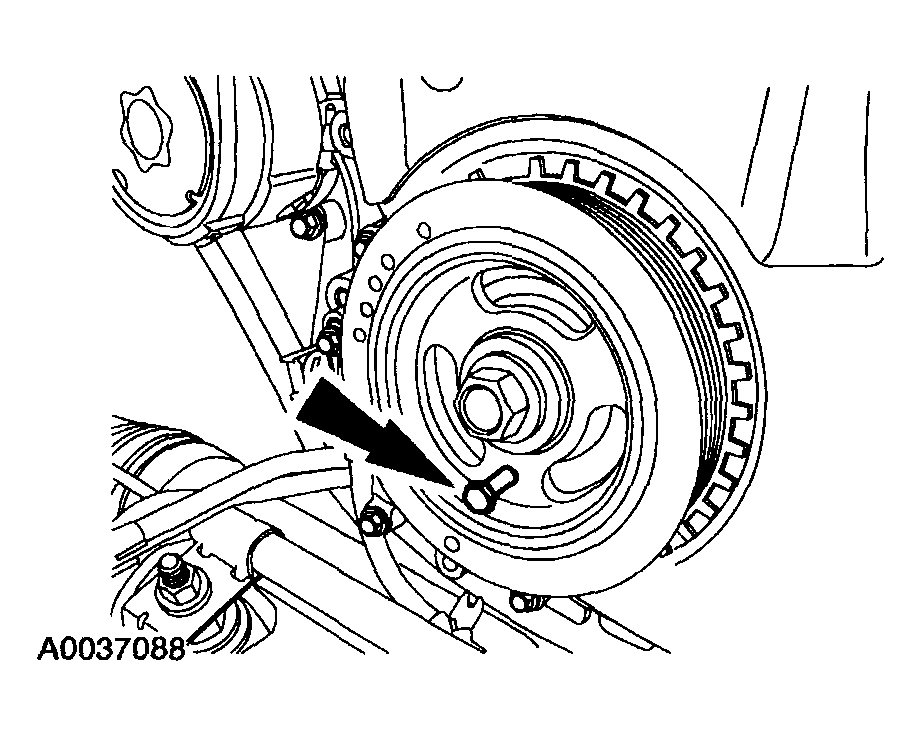

   Fig 4: Installing M6 Bolt

   Courtesy of MAZDA MOTORS CORP.
4. Remove the M6 bolt.

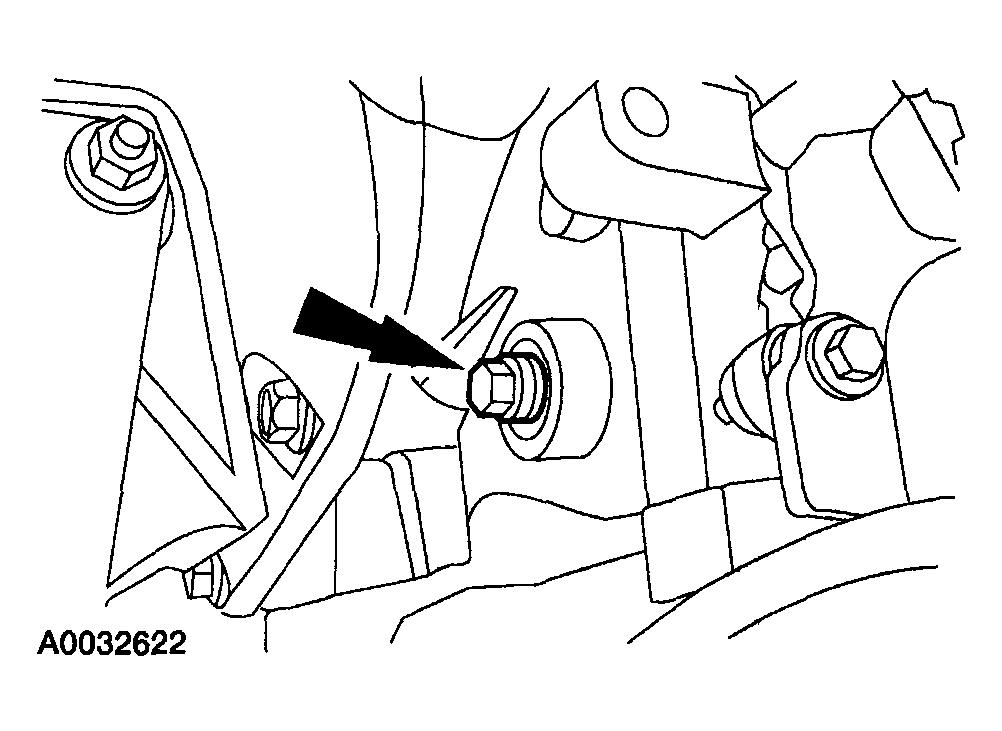

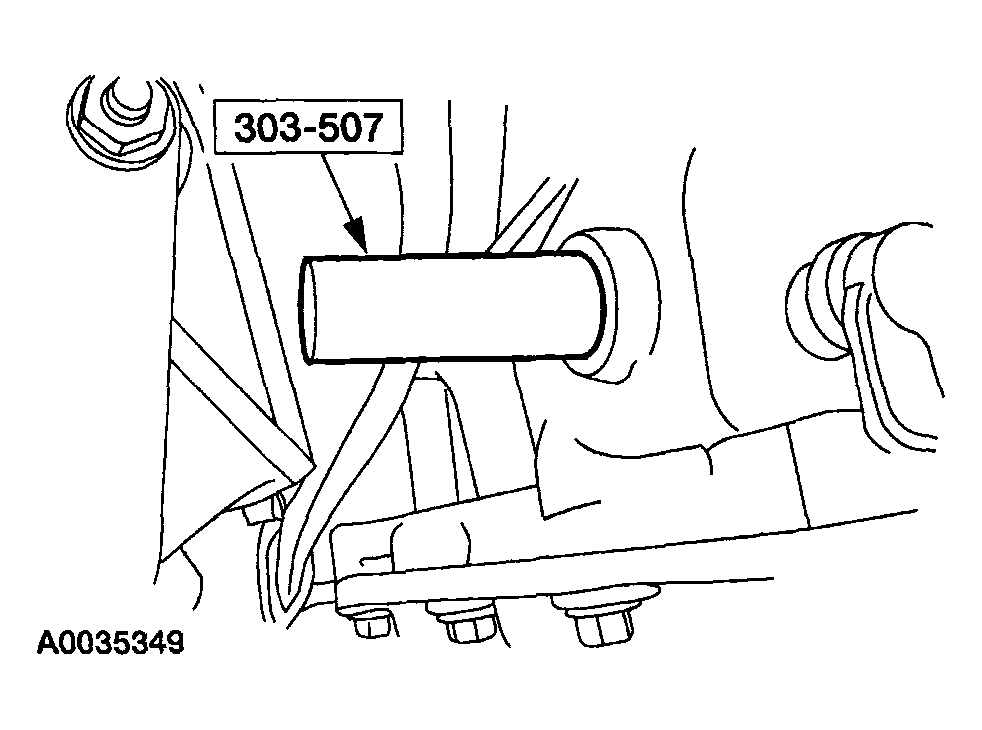

   Fig 5: Removing Special Tool

   Courtesy of MAZDA MOTORS CORP.
5. Remove the crankshaft timing peg SST  .

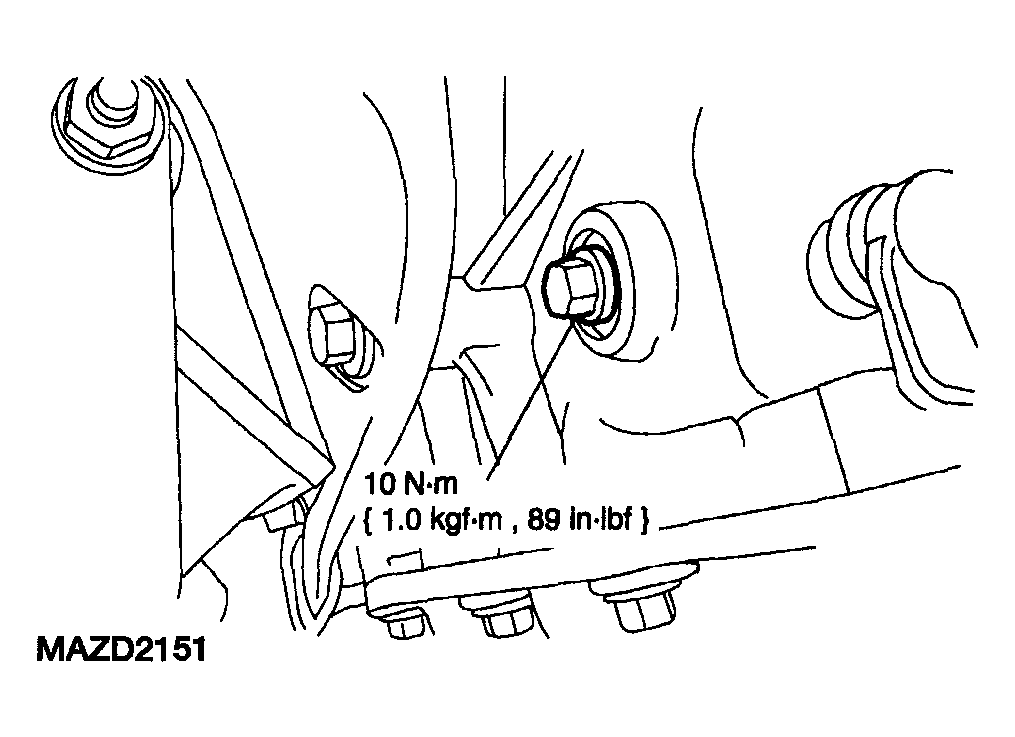

   Fig 6: Crankshaft Timing Peg With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
6. Install the plug for the crankshaft timing peg.
   Fig 7: Installing Plug For Crankshaft Timing Peg

   Courtesy of MAZDA MOTORS CORP.
