Upper Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

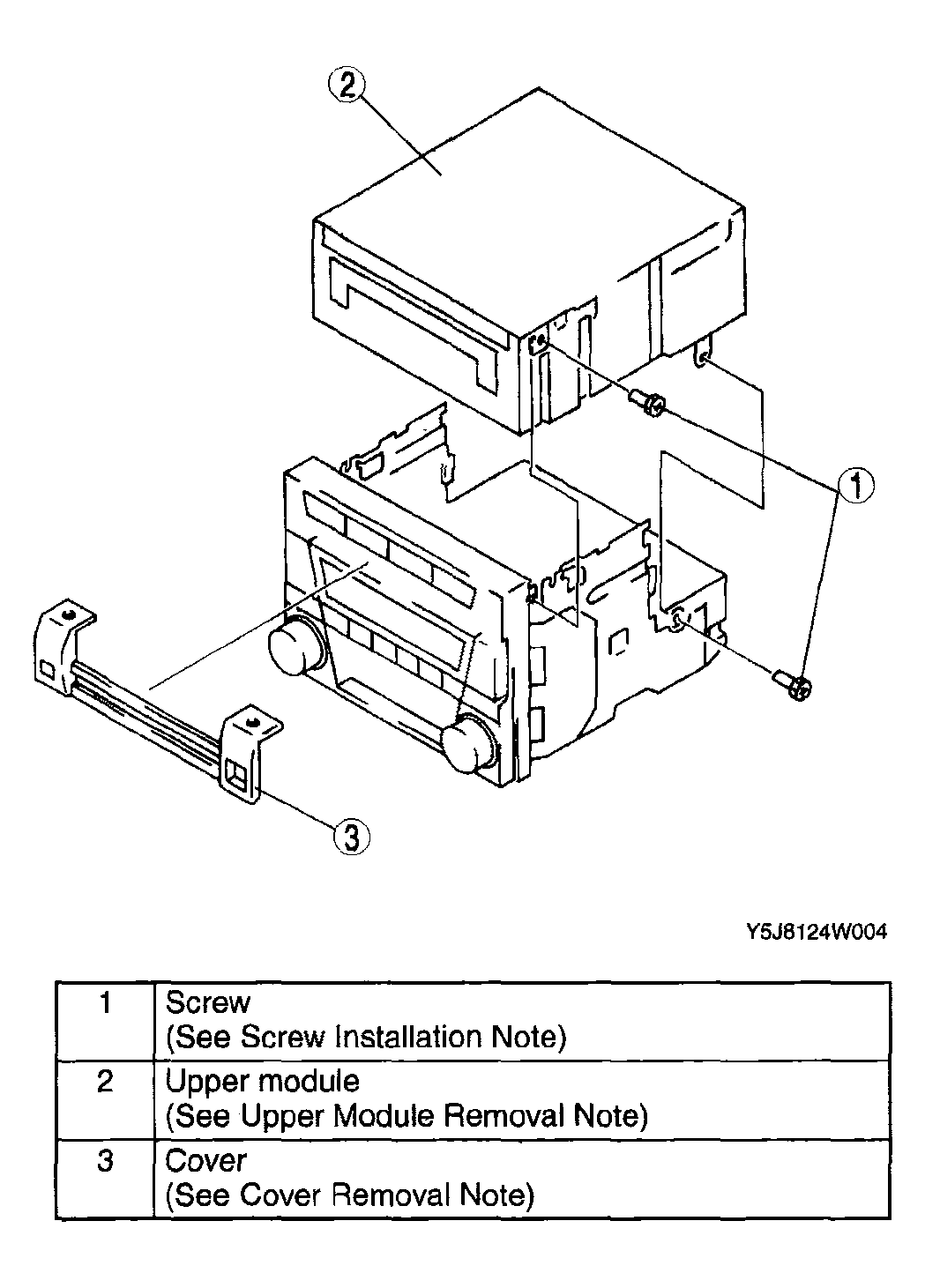

Fig 1: Upper Module
G04329807Courtesy of MAZDA MOTORS CORP.
