Upper Module Removal Note

  1. Insert a screwdriver into the hole stamped mark.
  2. To remove upper module, lift it by pushing down the screwdriver's handle.

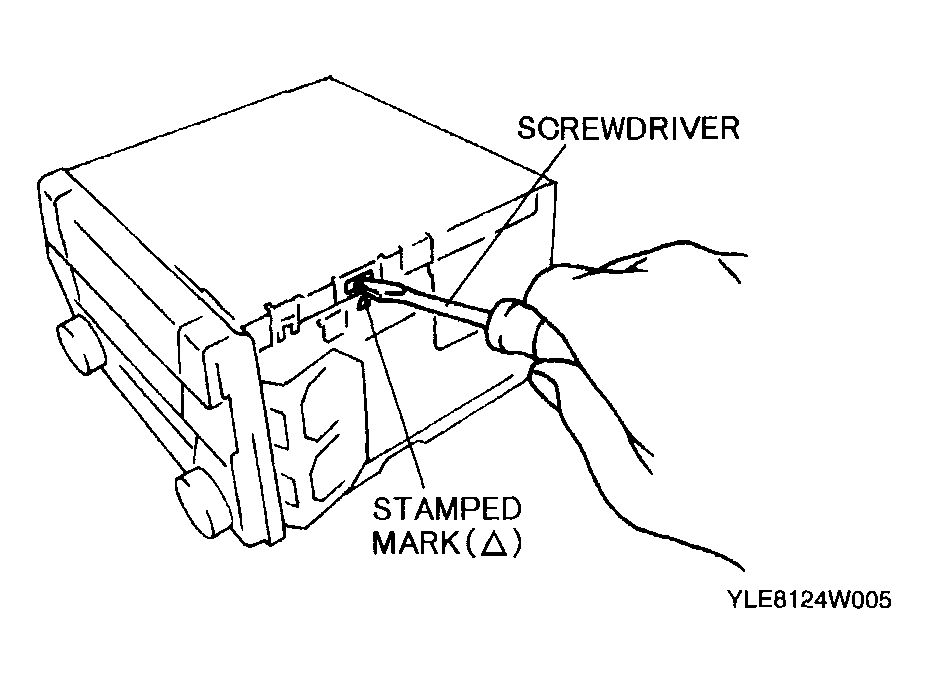

Fig 1: Inserting A Screwdriver Into Hole Stamped Mark
G04329808Courtesy of MAZDA MOTORS CORP.
