Bracket Disassembly Note

  1. To disassemble the bracket, push the stopper down with a small screwdriver.

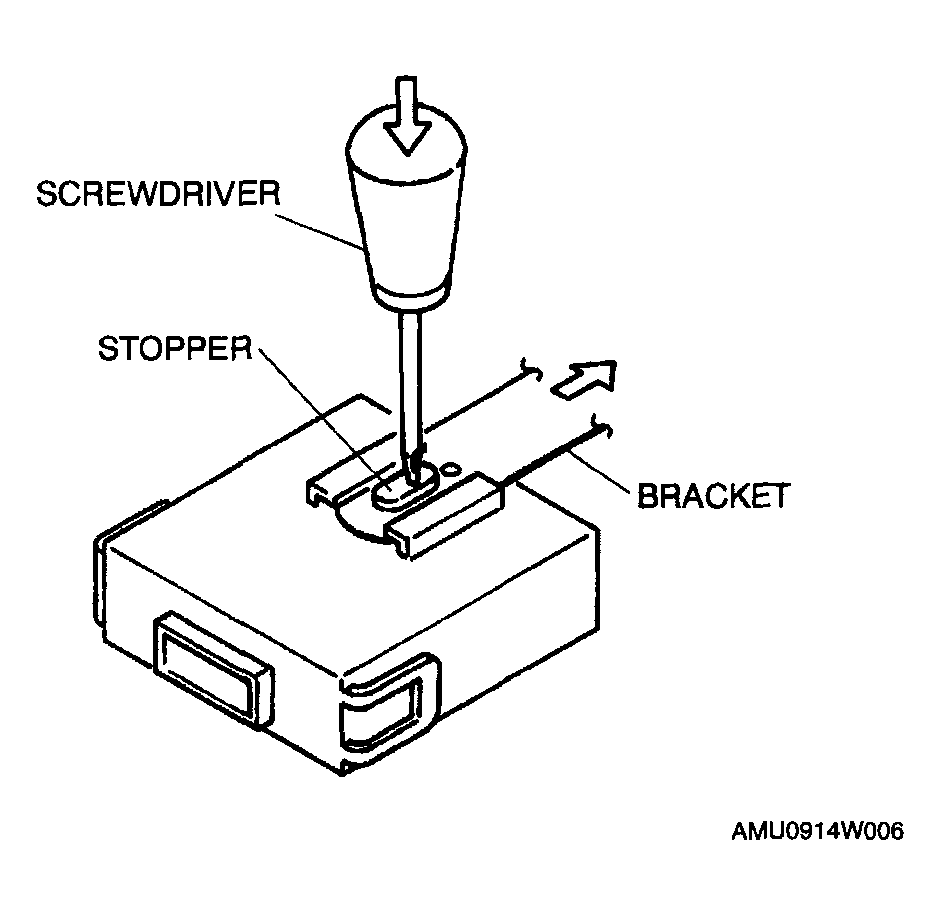

Fig 1: Disassembling Bracket
G04329539Courtesy of MAZDA MOTORS CORP.
