Keyless Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.

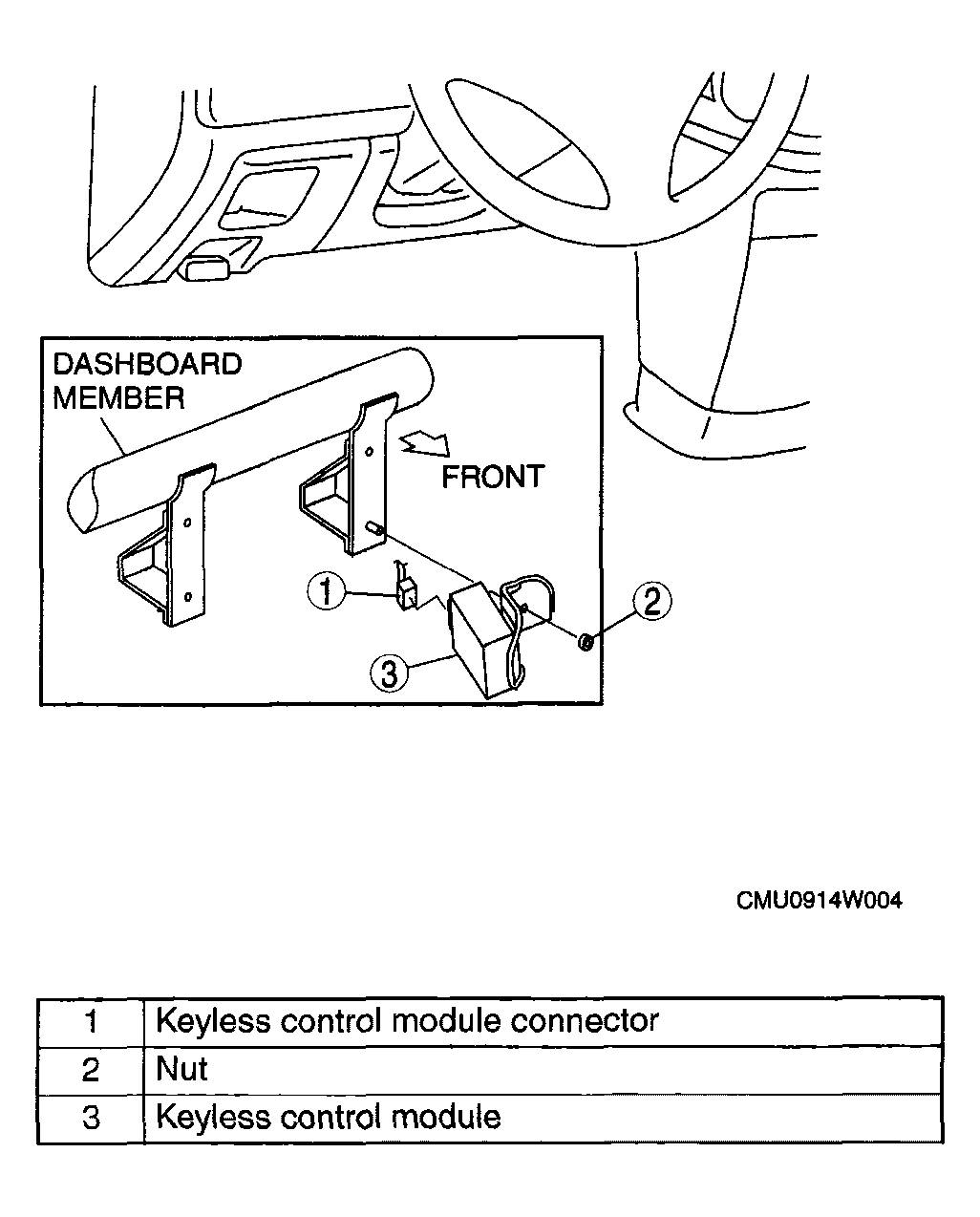

    Fig 1: Keyless Control Module
    G04329537Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
