Front Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in Fig 1.

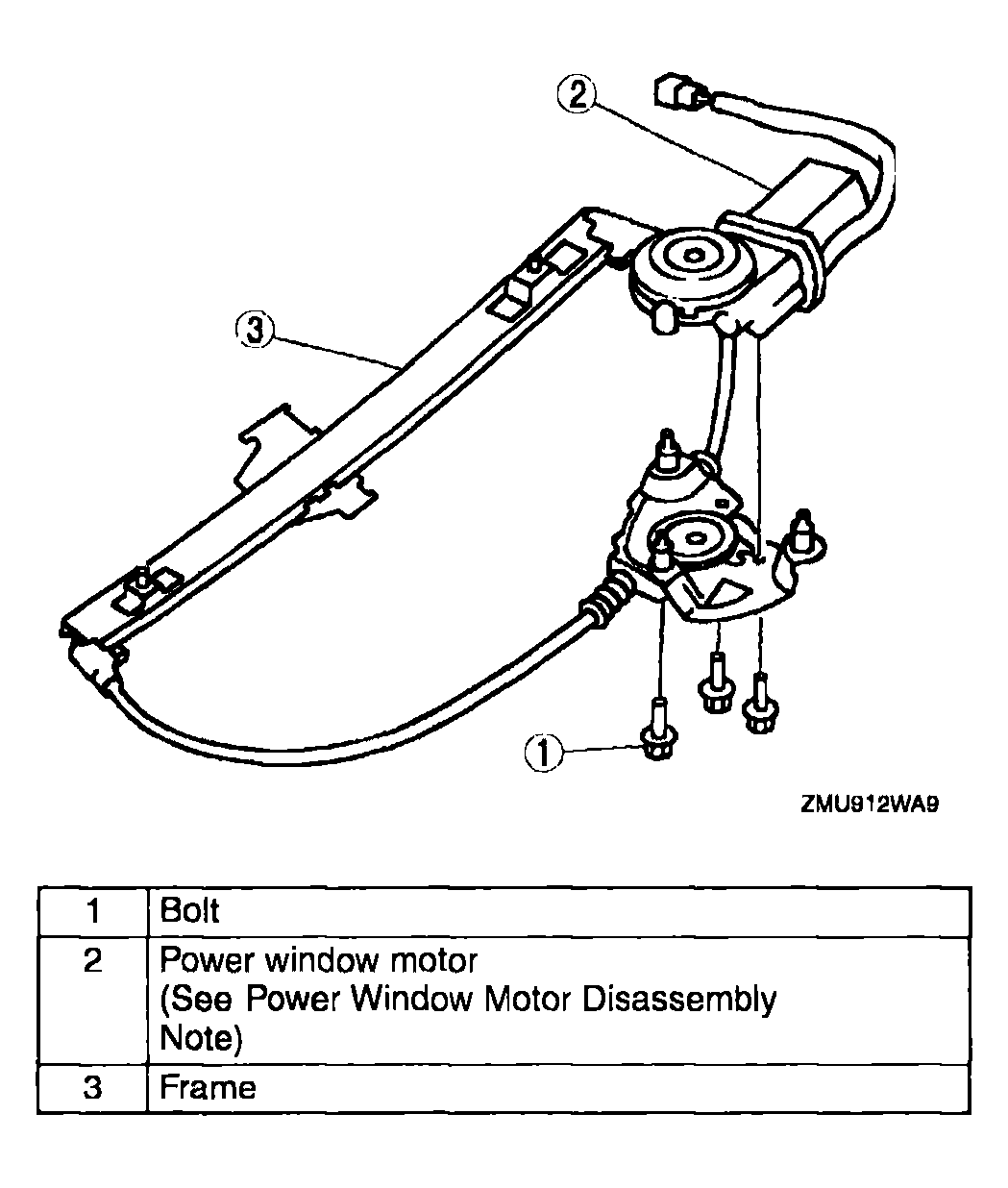

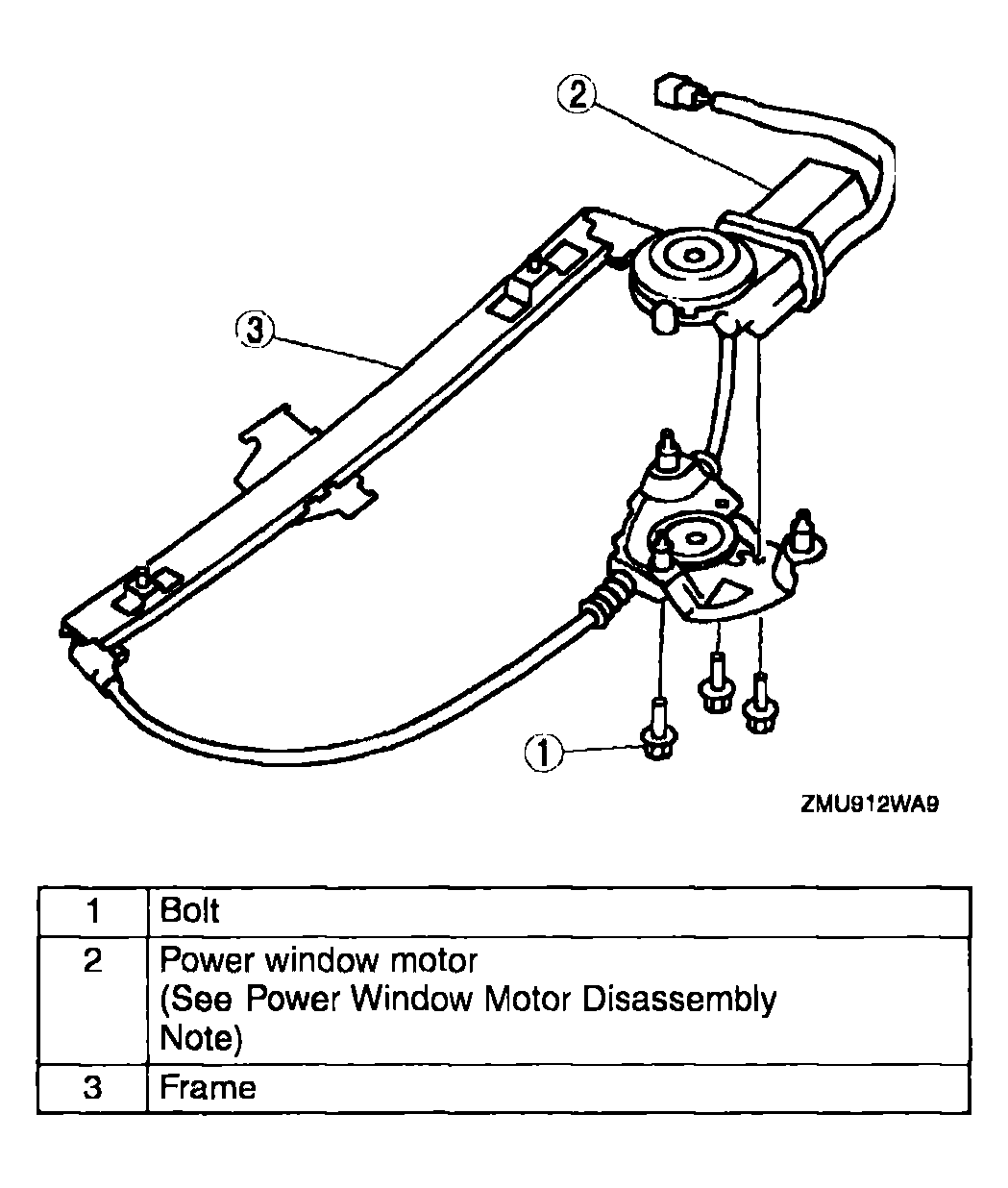

    Fig 1: Disassembling/Assembling Front Power Window Regulator
    G04329408Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
