Front Door Glass And Guide Removal/Installation

Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front beltline molding is 185 mm {7.3 in}.

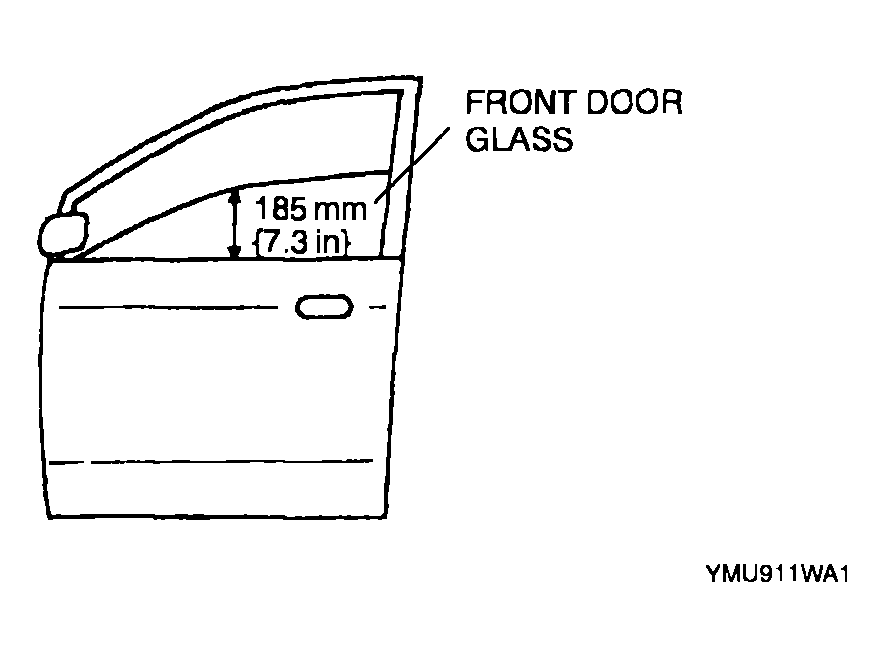

Fig 1: Identifying Front Door Glass Distance From Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery cable.
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in Fig 2.

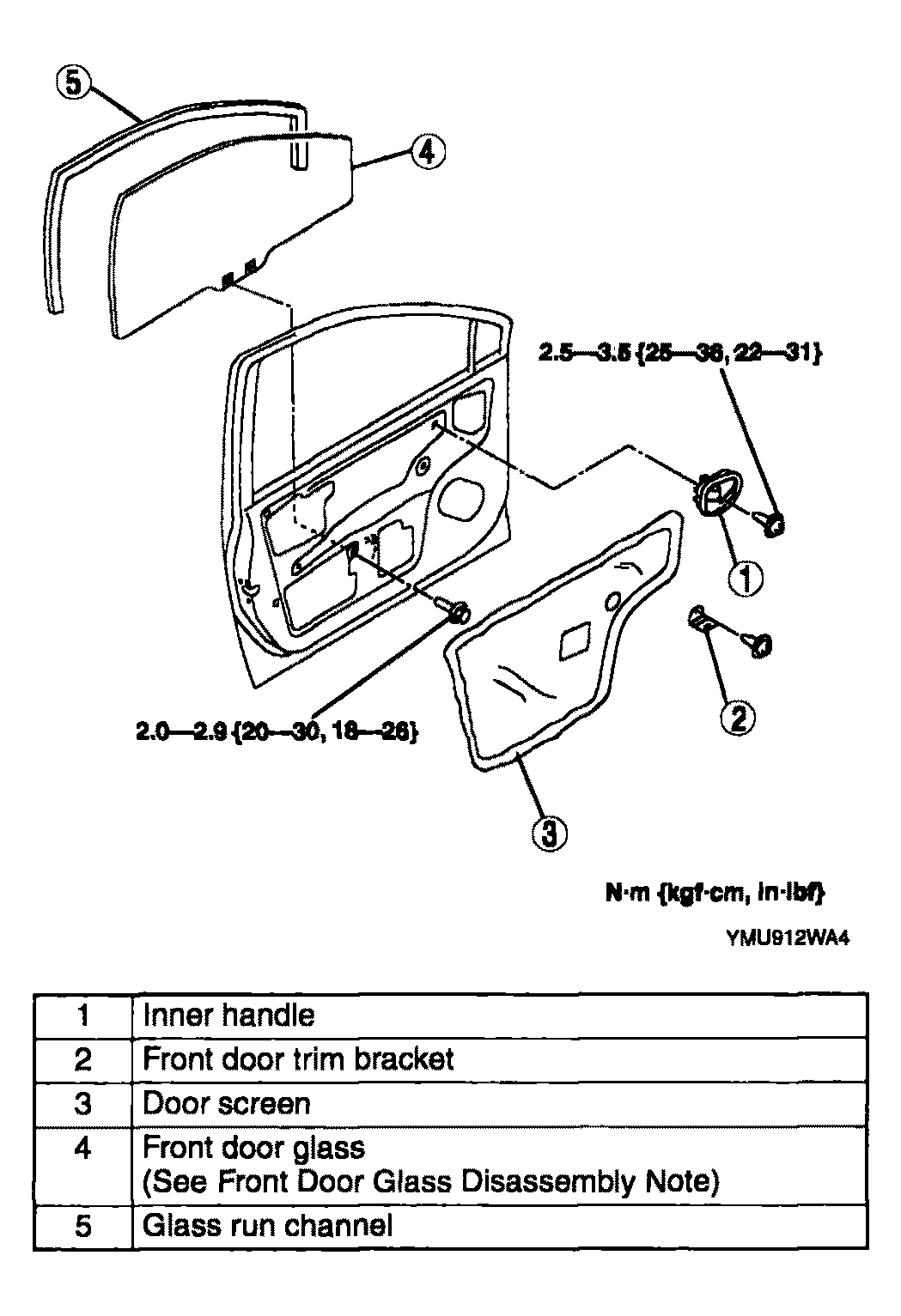

Fig 2: Front Door Glass With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
