Power Outside Mirror Inspection

  1. Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION .)
  2. Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.
    • If not as specified, replace the power outside mirror.
    POWER OUTSIDE MIRROR INSPECTION CHART

    Terminal Mirror operation
    B+ GND
    B D Up
    D B Down
    F D Left
    D F Right

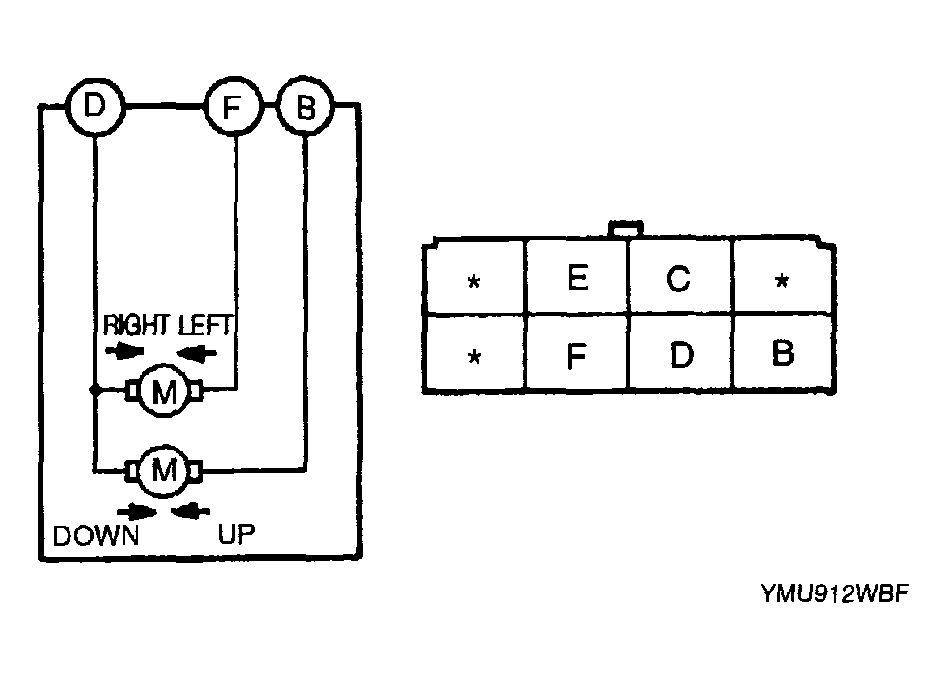

    Fig 1: Power Outside Mirror Connector Terminals
    G04329462Courtesy of MAZDA MOTORS CORP.
  3. Inspect for continuity between the power outside mirror terminals.
    • If not as specified, replace the power outside mirror.

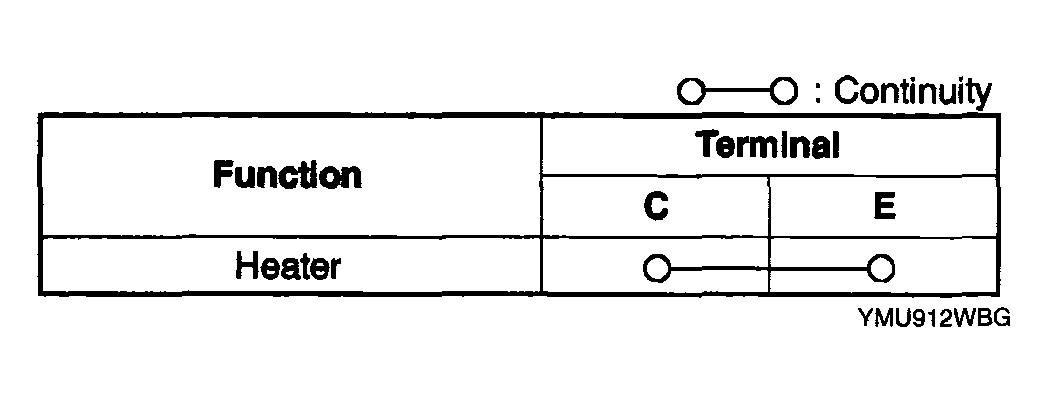

    Fig 2: Power Outside Mirror Heater Continuity Table
    G04329463Courtesy of MAZDA MOTORS CORP.

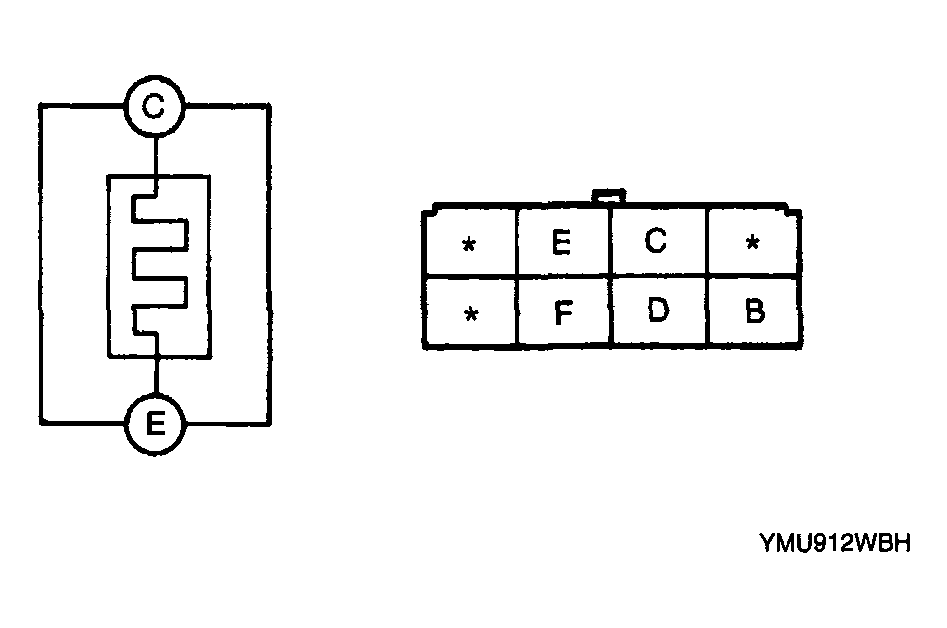

    Fig 3: Power Outside Mirror Heater Connector Terminals
    G04329464Courtesy of MAZDA MOTORS CORP.
