Power Window Main Switch Inspection
>>
Rear left
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear left

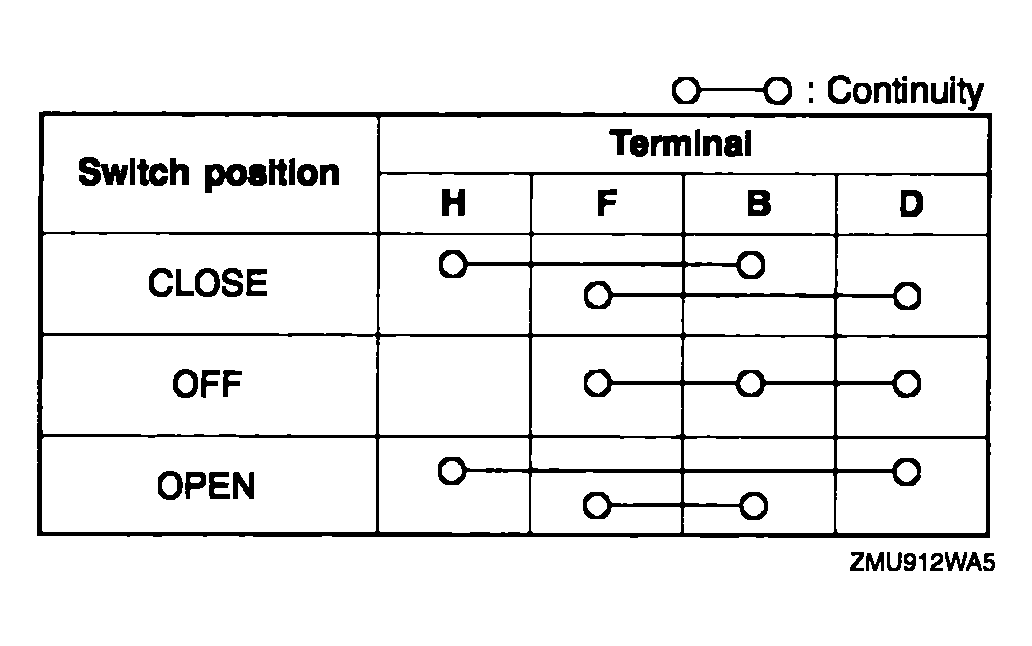

Fig 1: Power Window Main Switch Continuity Chart - (Rear Left)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
