Power Window Motor Inspection

  1. Remove the power window motor. (See FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY , and/or REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .)
  2. Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
    • If not as specified, replace the power window motor.

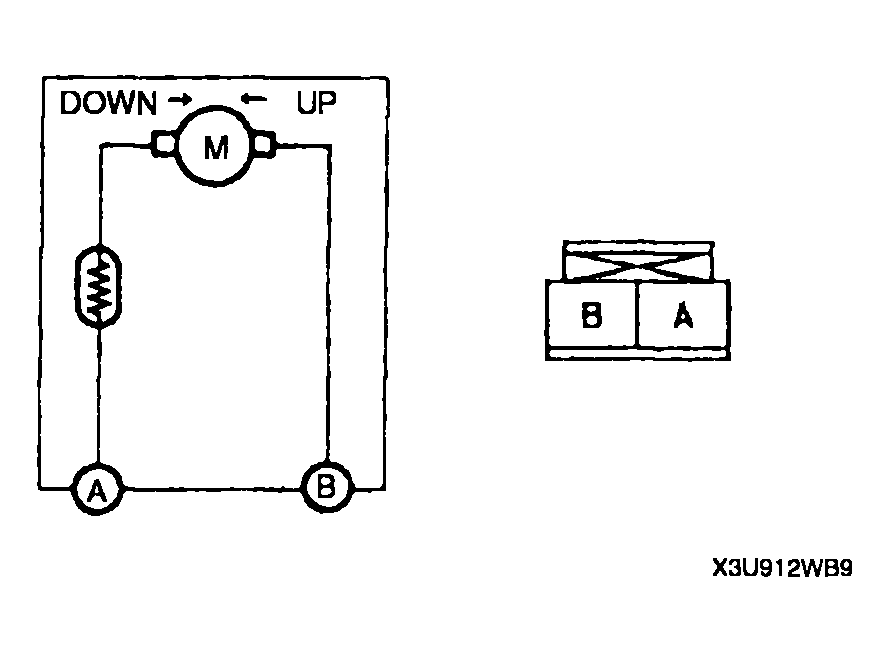

    Fig 1: Power Window Motor Connector Terminals
    G04329407Courtesy of MAZDA MOTORS CORP.
POWER WINDOW MOTOR INSPECTION CHART

Terminal Motor operation
A B
GND B+ UP
B+ GND Down
