Power Window Sub-Switch Inspection: Notes

  1. If inspecting the passenger's side, remove the switch panel.
  2. If inspecting the rear, remove the power window sub switch.
  3. Inspect for continuity between the power window sub switch terminals using an ohmmeter.
    • If not as specified, replace the power window sub switch.

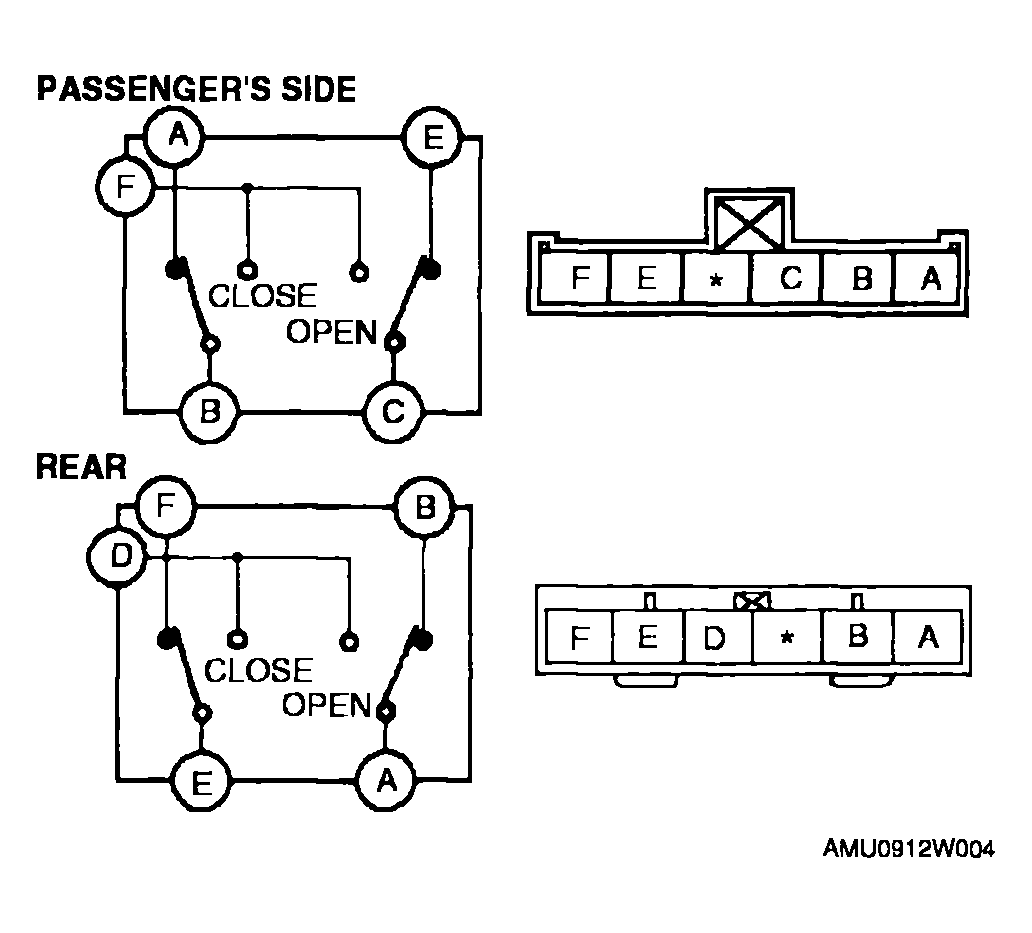

    Fig 1: Power Window Sub-Switch Circuit & Connector Terminals
    G04329423Courtesy of MAZDA MOTORS CORP.
