Passenger's side

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Push out the clip from behind the front door trim, and remove the switch panel.
  4. Remove the screws, and remove the power window sub switch.
  5. Install in the reverse order of removal.

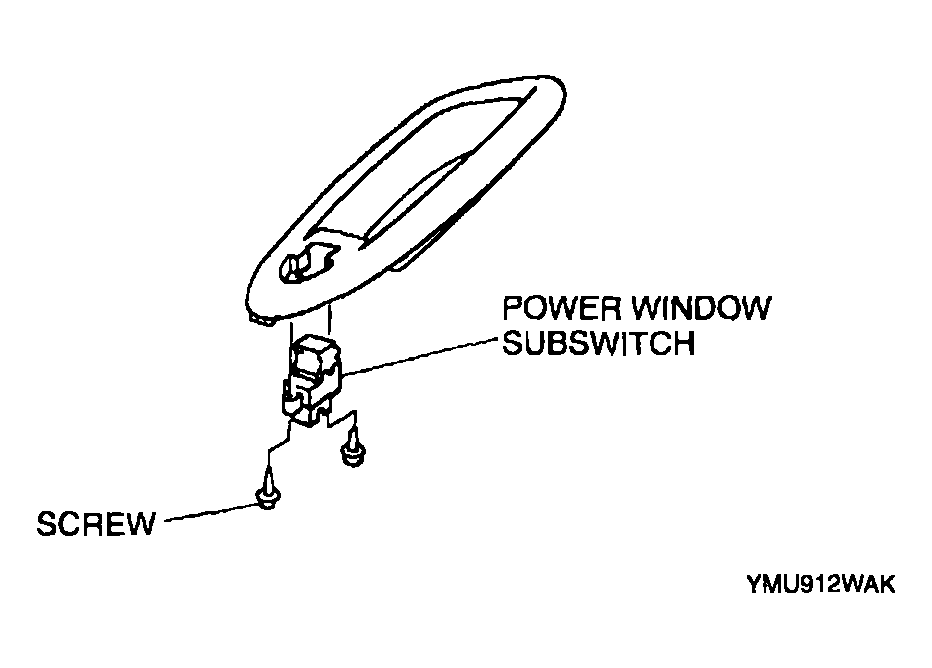

    Fig 1: Power Window Sub-Switch Screws
    G04329419Courtesy of MAZDA MOTORS CORP.
