Power Window Sub-Switch Removal/Installation: Rear

  1. Disconnect the negative battery cable.
  2. Remove the hook by inserting a tape-wrapped flathead screwdriver between the switch and the rear door trim.
  3. Disconnect the connector, and remove the power window sub switch.
  4. Install in the reverse order of removal.

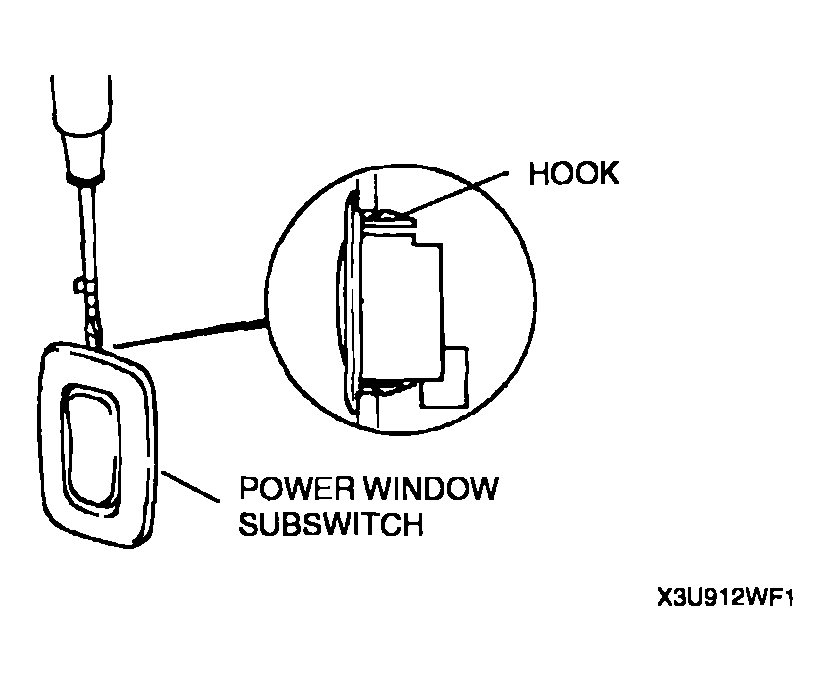

    Fig 1: Removing Hook
    G04329420Courtesy of MAZDA MOTORS CORP.
