Power Window System Location Index

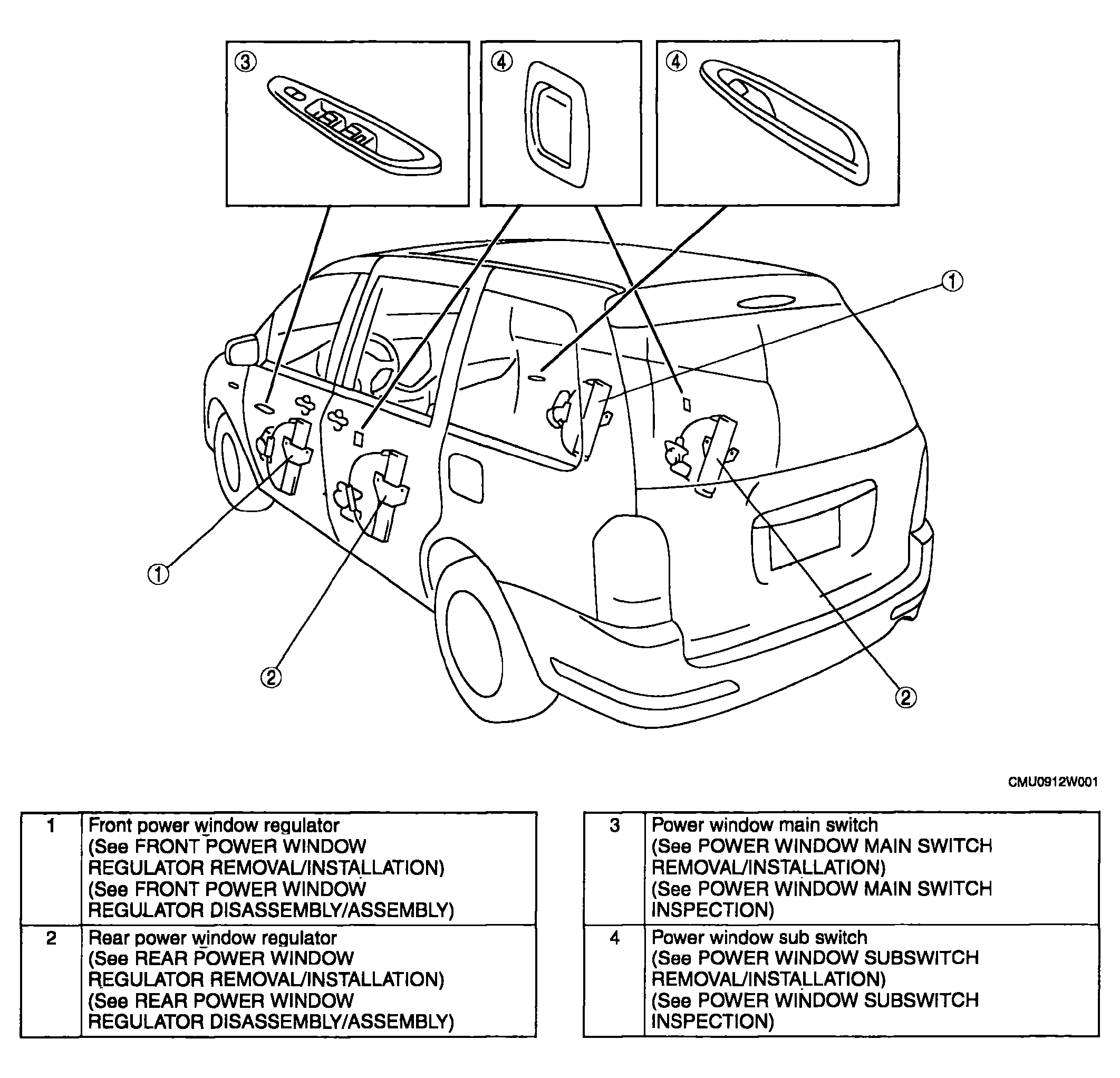

Fig 1: Locating Power Window System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
