Power Window Motor Assembly Note

NOTE:
  • The cable must be held to install the drum; install with another person.
  1. Press the cable as shown to remove any slack.
  2. Install the drum to the power window motor.

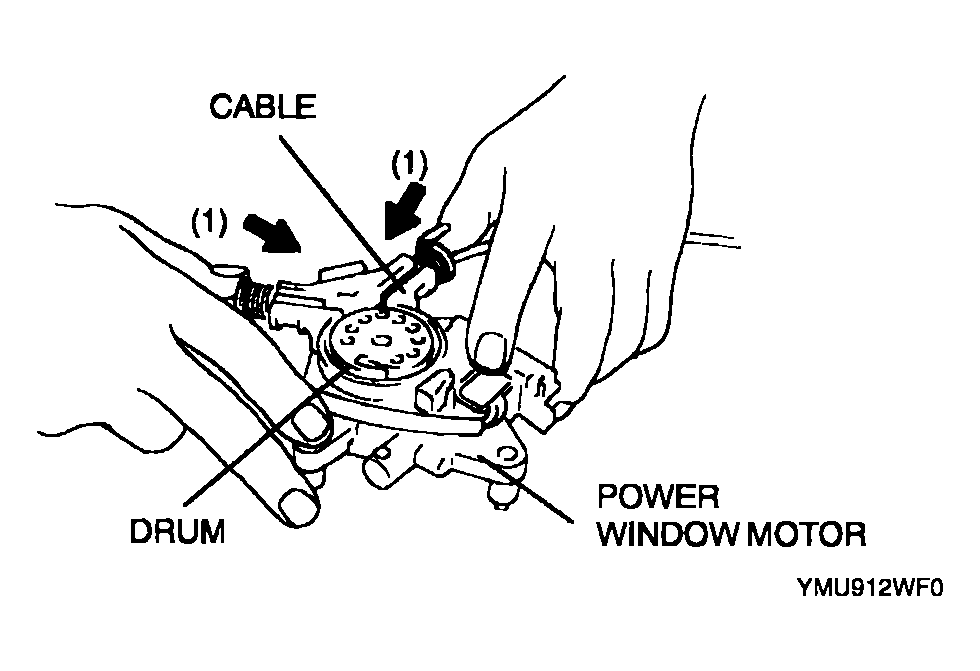

Fig 1: Installing Drum To Power Window Motor
G04329411Courtesy of MAZDA MOTORS CORP.
