Not Reusing Windshield

  1. Remove the base. (See BASE REMOVAL .)
    NOTE:
    • For the areas of the sealant that are difficult to cut, use a SST  (piano wire) and follow the procedure under "Reusing Windshield".
  2. Use a tool like that shown in the figure, and insert the blade into the sealant.

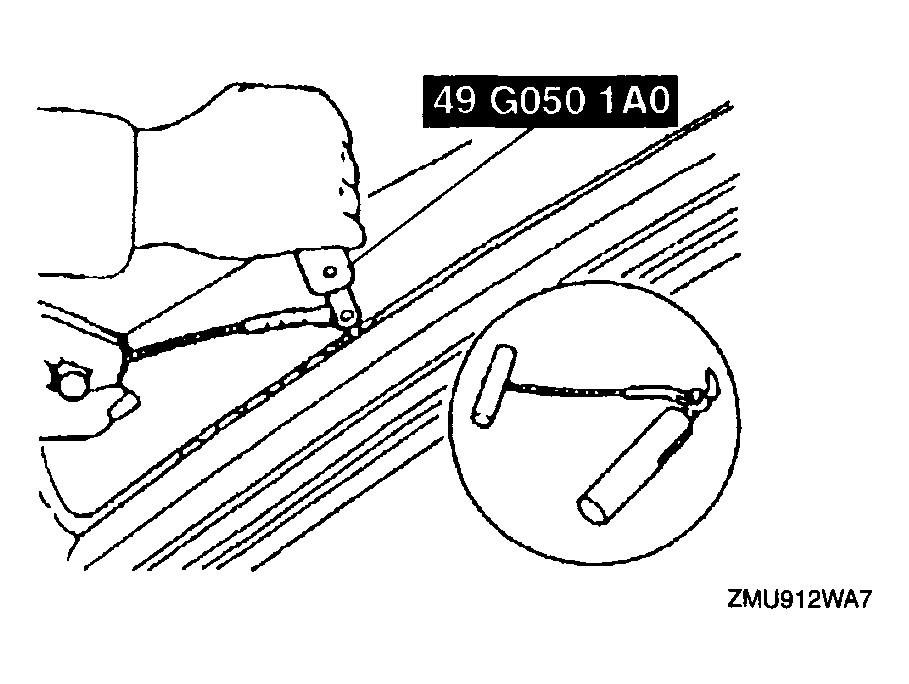

    Fig 1: Pulling Special Tool Through Sealant
    G04329427Courtesy of MAZDA MOTORS CORP.
  3. Pull through the sealant around the edge of the glass.
  4. Remove the glass.
